Cloud Connector Connection Manual

Cloud Connector Connection Manual


Note
  1. For RISE with SAP customers, the Cloud Connector is provided at no additional cost as part of the RISE for SAP components. If installation is required, please refer to the SAP guideline for detailed instructions on setting up the Cloud Connector.

1. Connect Cloud Connector to BTP

Step 1

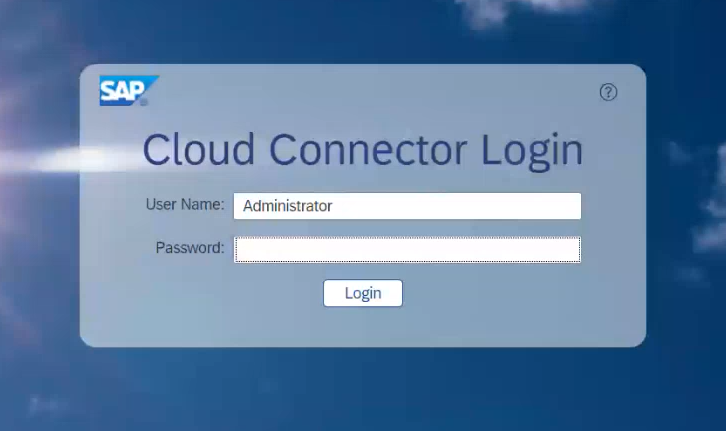

  1. Access Cloud Connector:













  1. Initial logon to Cloud Connector. Enter below default credentials (case sensitive) and click on Login:
Username: Administrator
Password: manage

The first time you log in, you need to change the password and choose Master as the installation type. Click on save.

Step 2

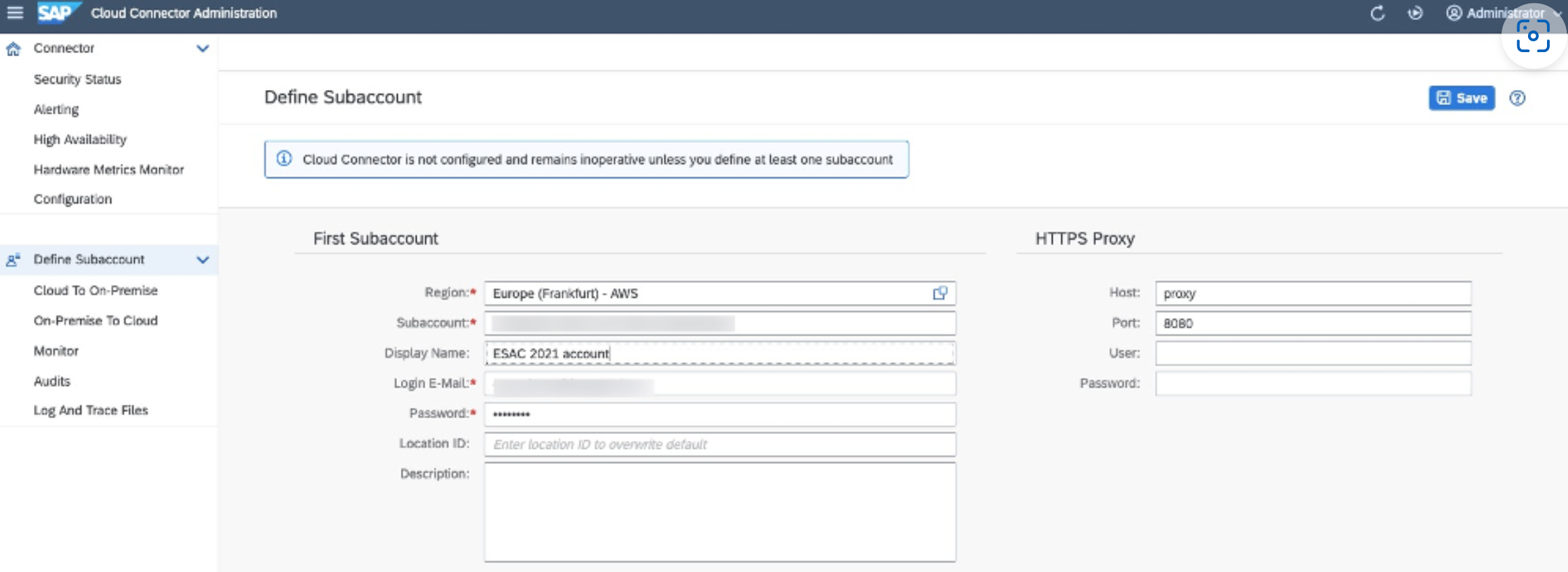

  1. Go to define subaccount.
    1. We will create a secure tunnel between the SCC and BTP. You will need the subaccount details as shown in the image below, which will be shared by the Onibex team.



  1. If successful you will see a screen with similar settings as below:


Step 3

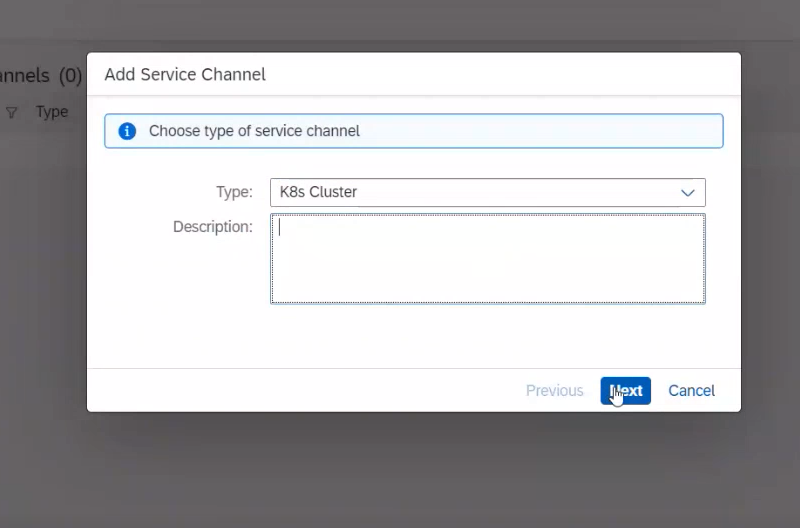

  1. Navigate to "On-premise to Cloud" and click on the plus sign to add a service channel.
  1. Select K8s Cluster



Step 4

  1. Onibex will provide the Cluster Host and Service Host. Please add them as illustrated in the image below.
Local Port : Defined by the client
Connections:  1

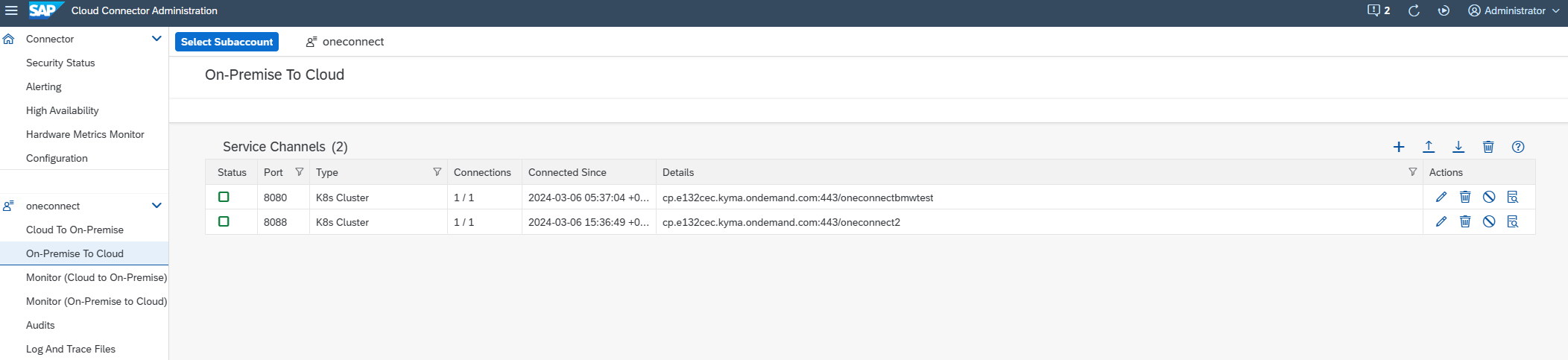

  1. If successful you will see a screen with similar settings as below:



Step 5

  1. You can utilize the following URL to connect to SAP and establish the connection. For step-by-step guidance on establishing the connection, please refer to One Connect Connection manual.

https://CloudConnectorHost:Port/api/v1/saplistener/WorkspaceIDOneconnect/synchronous
Cloud Connector Host: The host of Cloud Connector
Port: Defined by the user on the last step
Workspace Id One Connect: url From One Connect Cloud as shown in imaged below.
