1. Output Message Creation for IDOCS


STEP 1

Access SAP

A screenshot of a computerDescription automatically generated

STEP 2

Go to the Transaction field and enter “NACE” in the input box. Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated


STEP 3

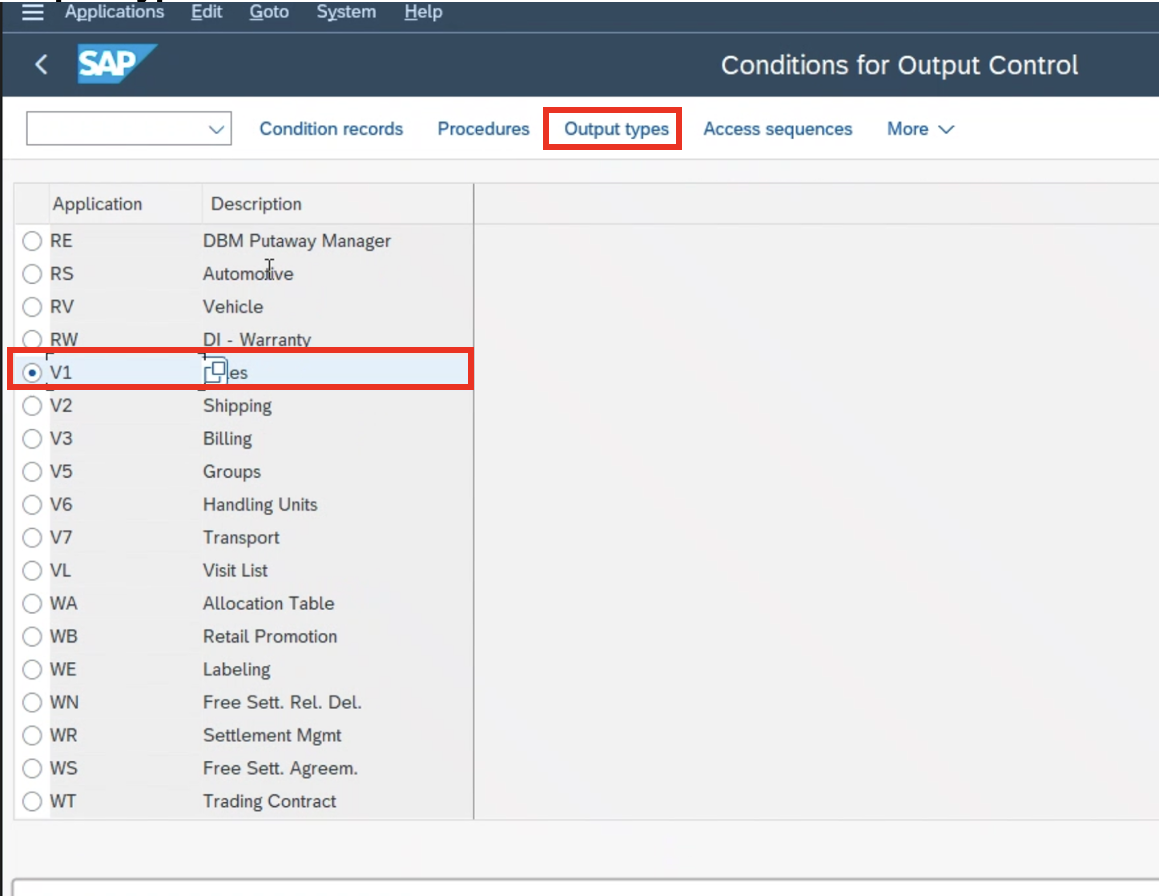

Select the application that you want to configure. For this manual, we will choose V1 Sales.

Once you select the application, go ahead and click on Output Types.



















STEP 4

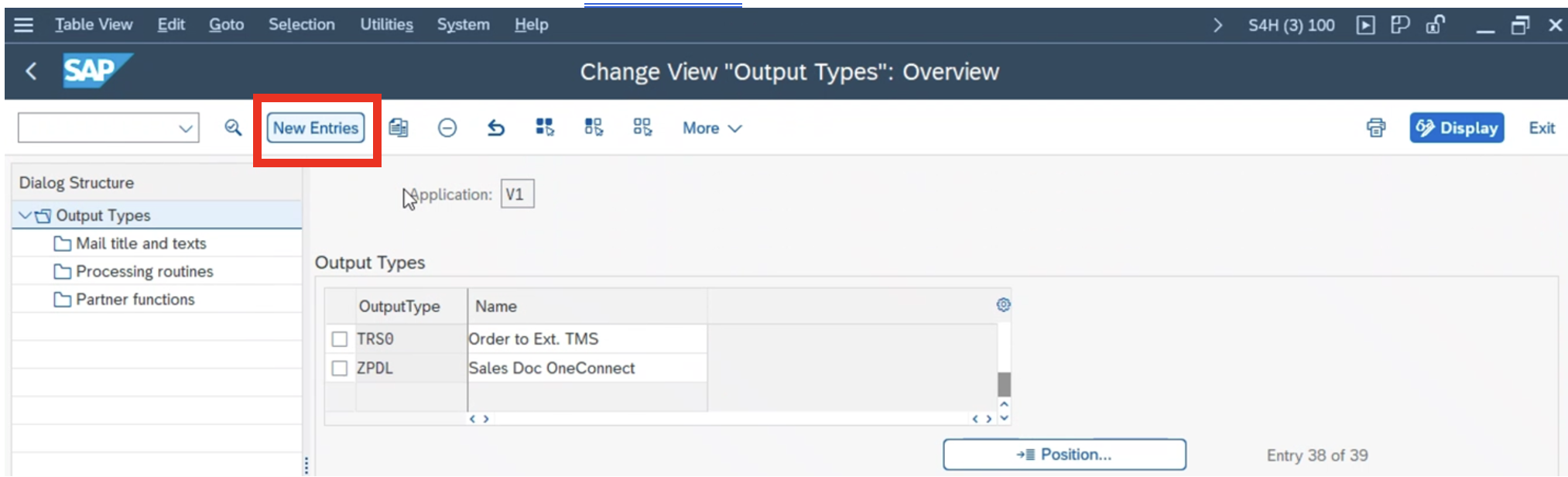

Click “Edit” and select “New Entries”



STEP 5

In the Output Type section, enter the following information:

Transactional Data

Process

Output type

Access Sequence

IDOC TYPE

Transport (V7)

ZTEC

001

SHPADV

Deliveries (V2)

ZDEC

001

DESADV

Invoices (V3)

ZFEC

001

INVOIC

Sales Order (V1)

ZPEC

002

ORDRSP

Purchase Order (EF)

ZOEC

001

ORDERS

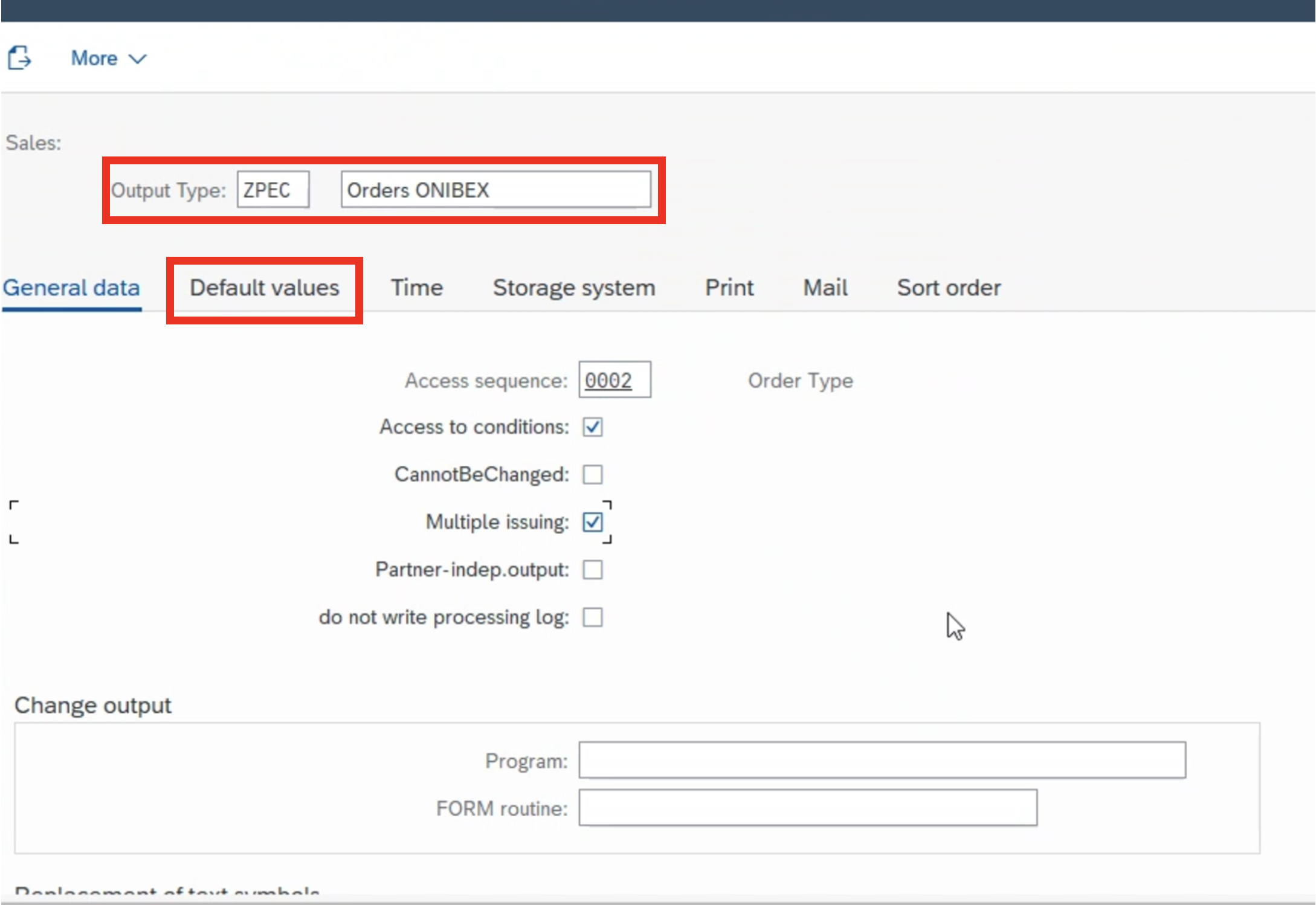

Output type: Select the appropriate output type based on the process you are setting up.
Description box: Orders Onibex (Or add your own description)
Access Sequence: Select the appropriate access sequence according to the process.
Select: Access to condition and Multiple Issuing

Once you have completed the information, choose "Default Values."



STEP 6

In the Default values section, enter the following information:
  1. Dispatch time: 4 Send Immediately (When saving the application)
  1. Transmission Medium: A Distribution (ALE)
  1. Partner Function: SP

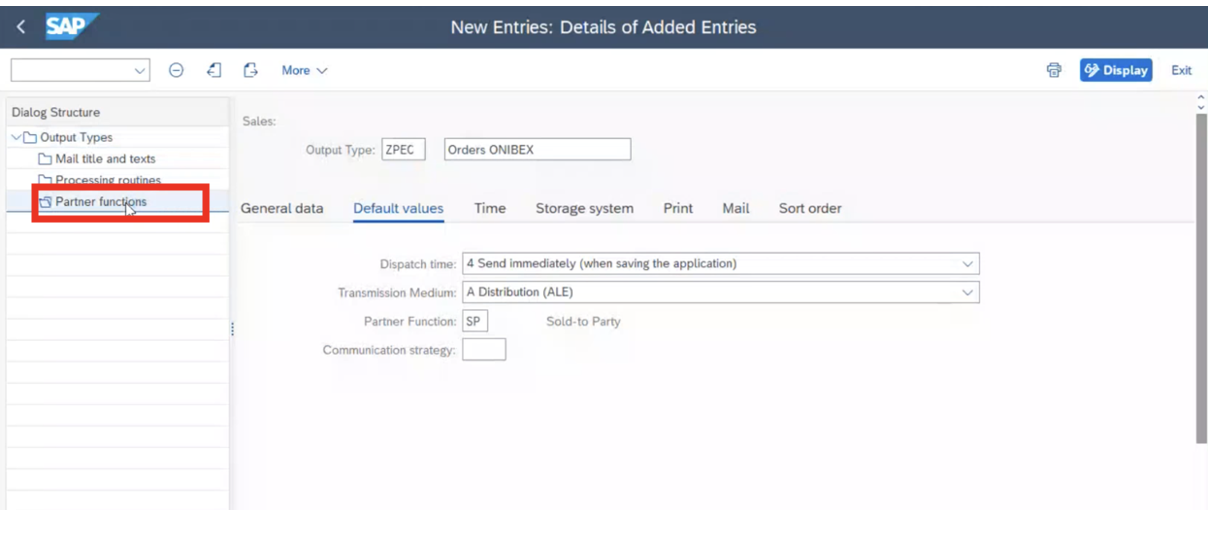

After this, Select Partner Functions


STEP 7

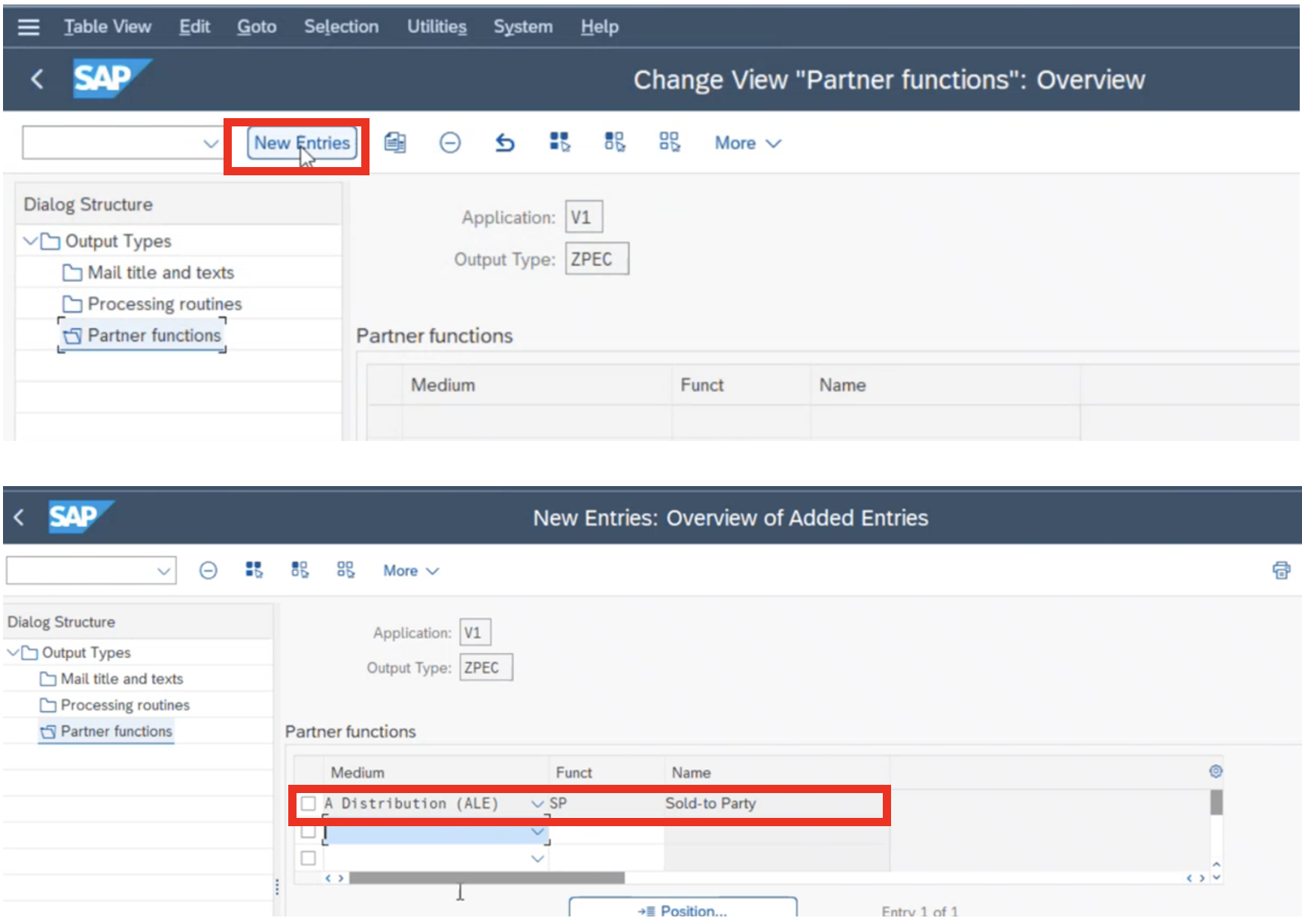

Select New Entries
Medium: A Distribution (ALE)
Function: SP



STEP 8

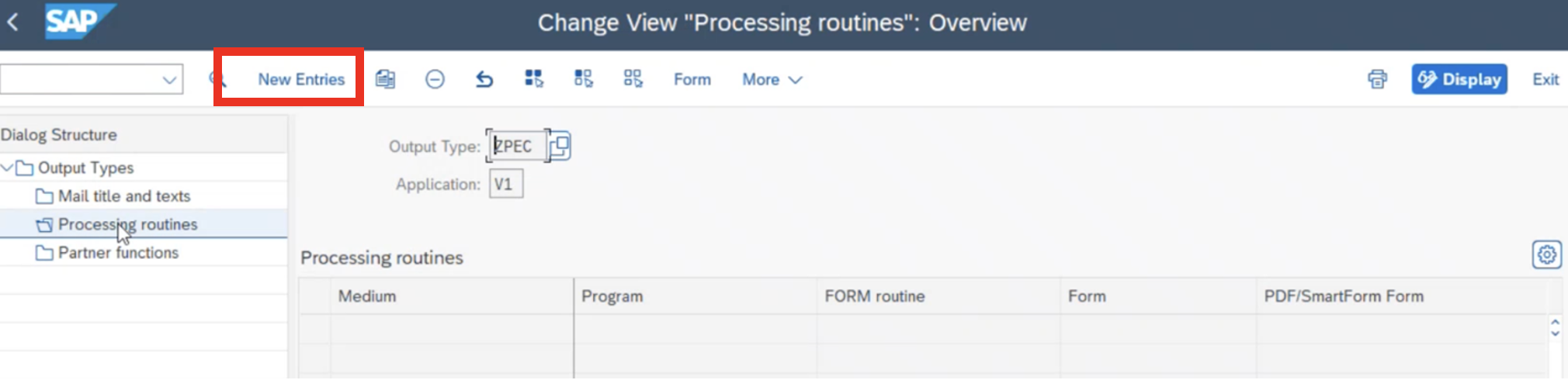

Select Processing routines

A screenshot of a computerDescription automatically generated

STEP 9

Select New Entries.
Utilize the following data for the configuration of all required IDOC:
  1. Transm. Medium : A Distribution (ALE)
  1. Program: RSNASTED
  1. Form Routine: ALE_PROCESSING


A screenshot of a computerDescription automatically generated

2. IDOC Set up procedures.


STEP 1

Go to the Transaction field and enter “NACE” in the input box. Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated


STEP 2

Select the application that you want to configure. For this manual, we will choose V1 Sales.
Once you select the application, go ahead and click on Procedures



STEP 3

Select Order Output

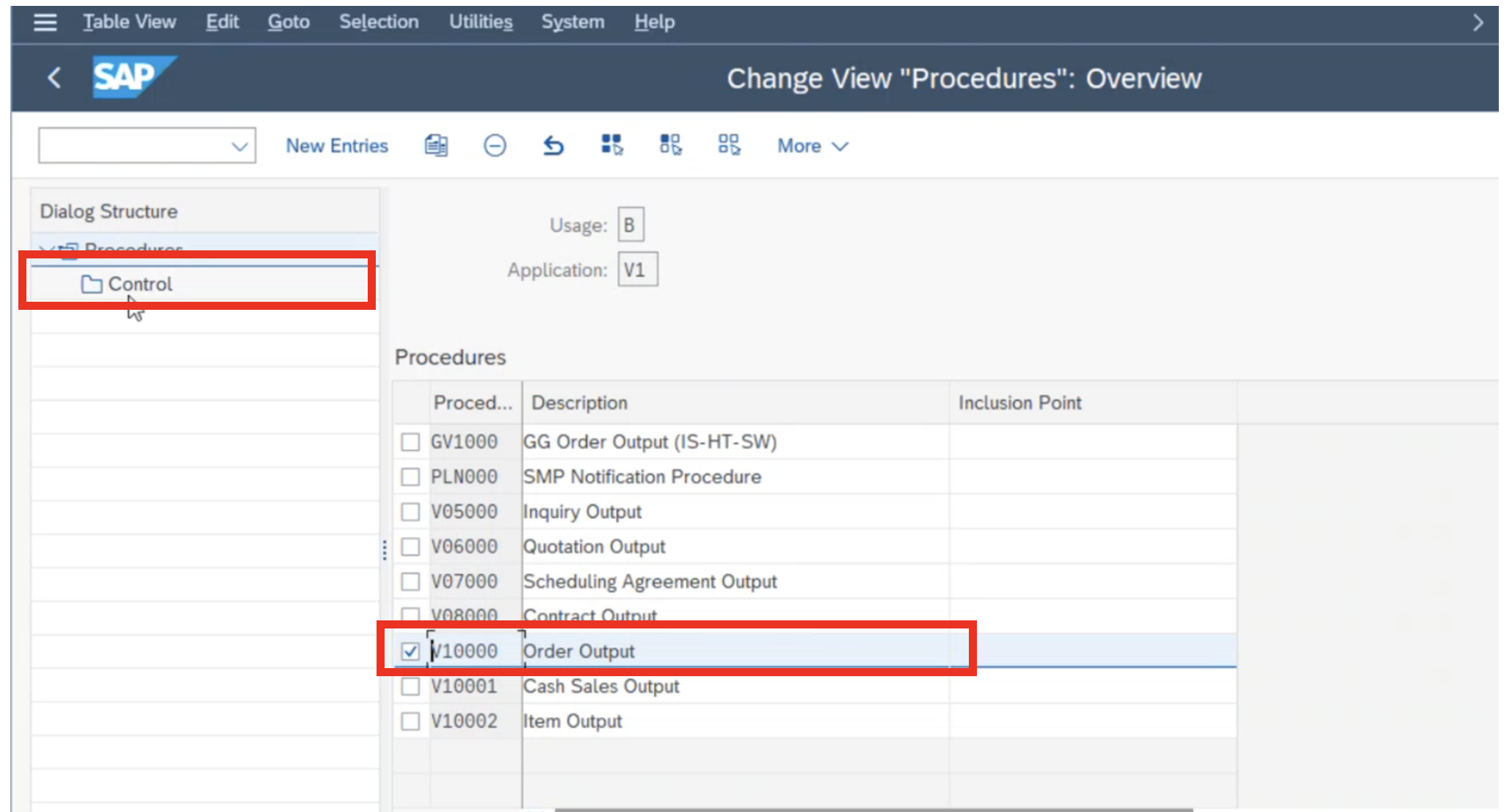

Click in Control in the Dialog structure panel.



STEP 4

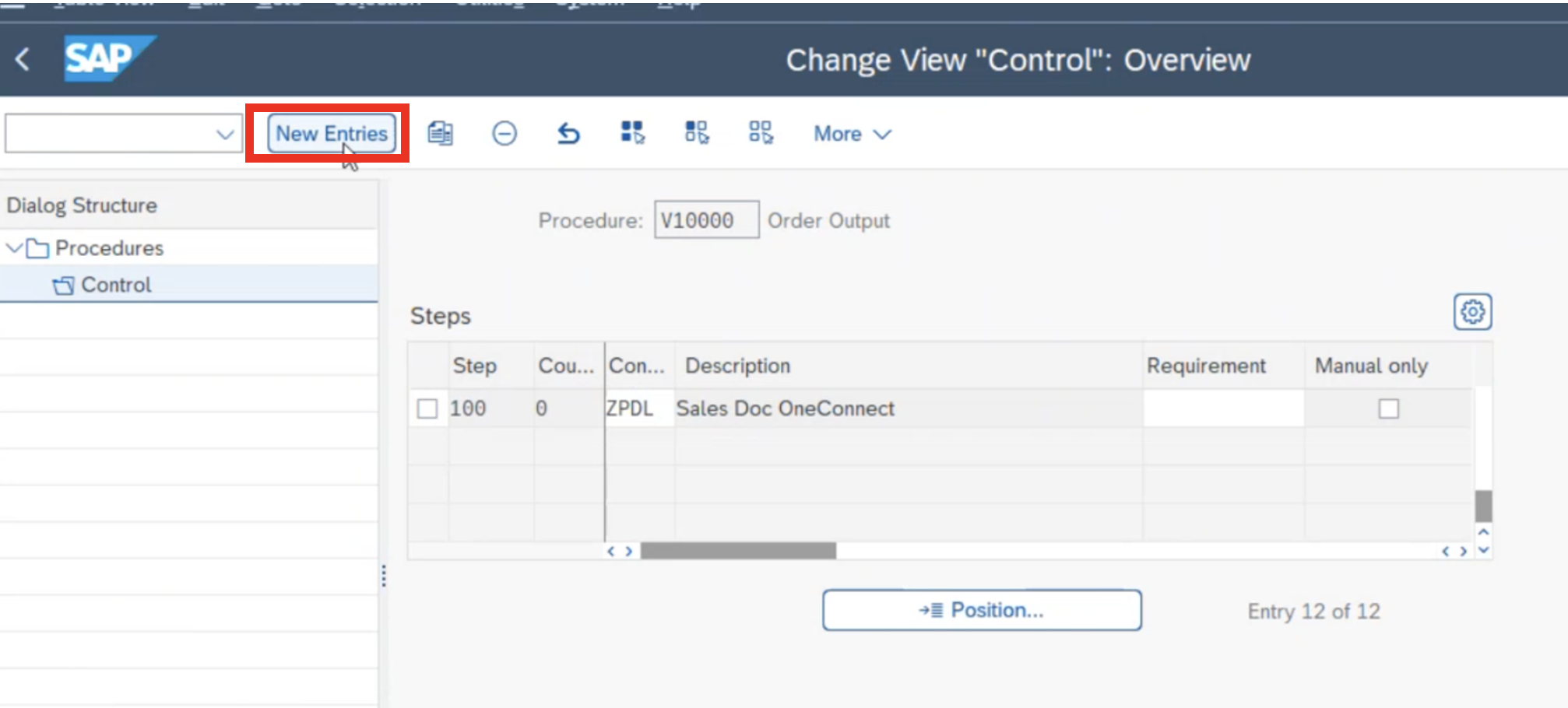

Select “New Entries”



STEP 5

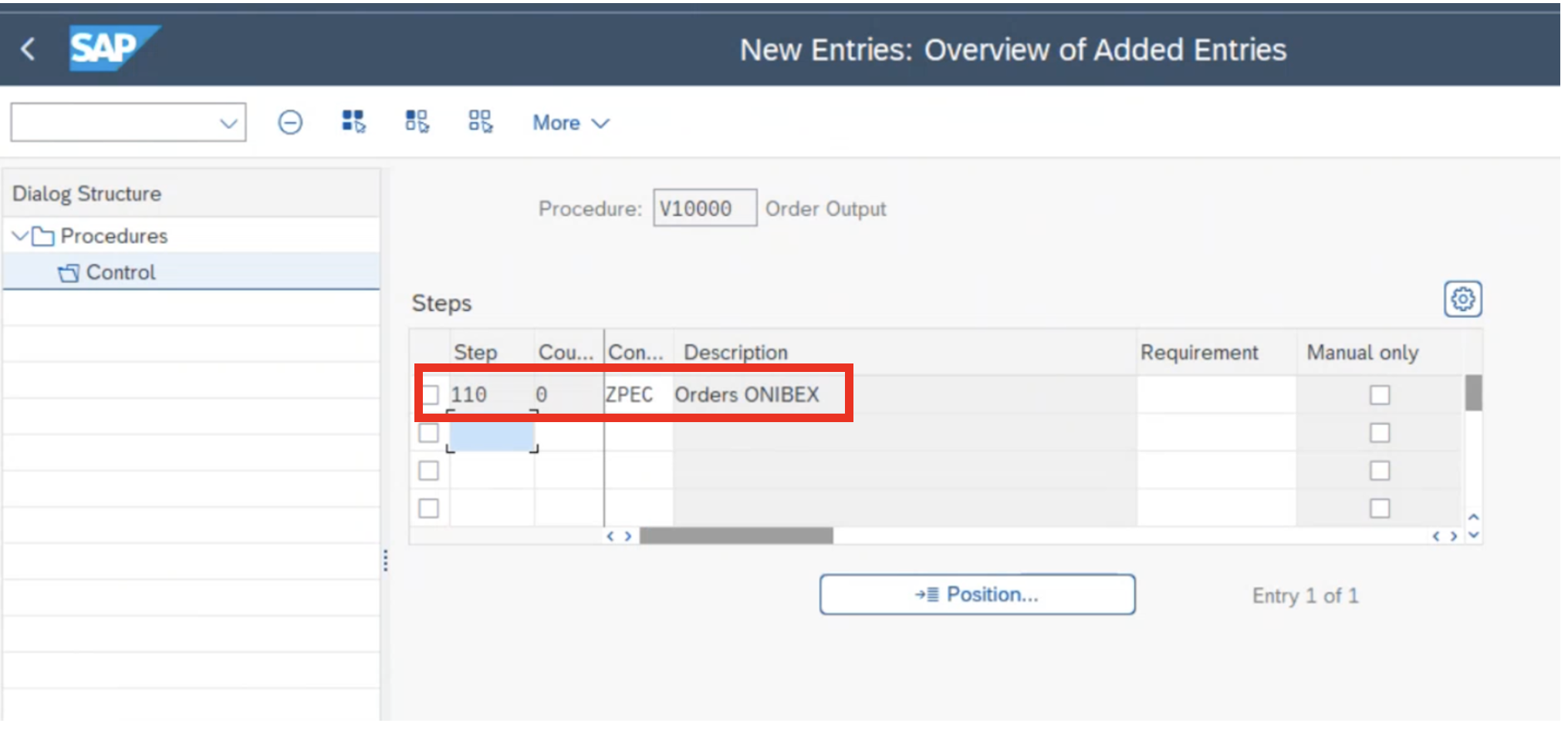

Insert the following data
  1. Step: Use the next available number.
  1. Count: 0
  1. Connection : ZPEC
Click Save


3. IDOC Set up Condition Records

STEP 1

Access SAP

A screenshot of a computerDescription automatically generated

STEP 2

Go to the Transaction field and enter “NACE” in the input box. Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated

STEP 3

Select the application that you want to configure. For this manual, we will choose V1 Sales.

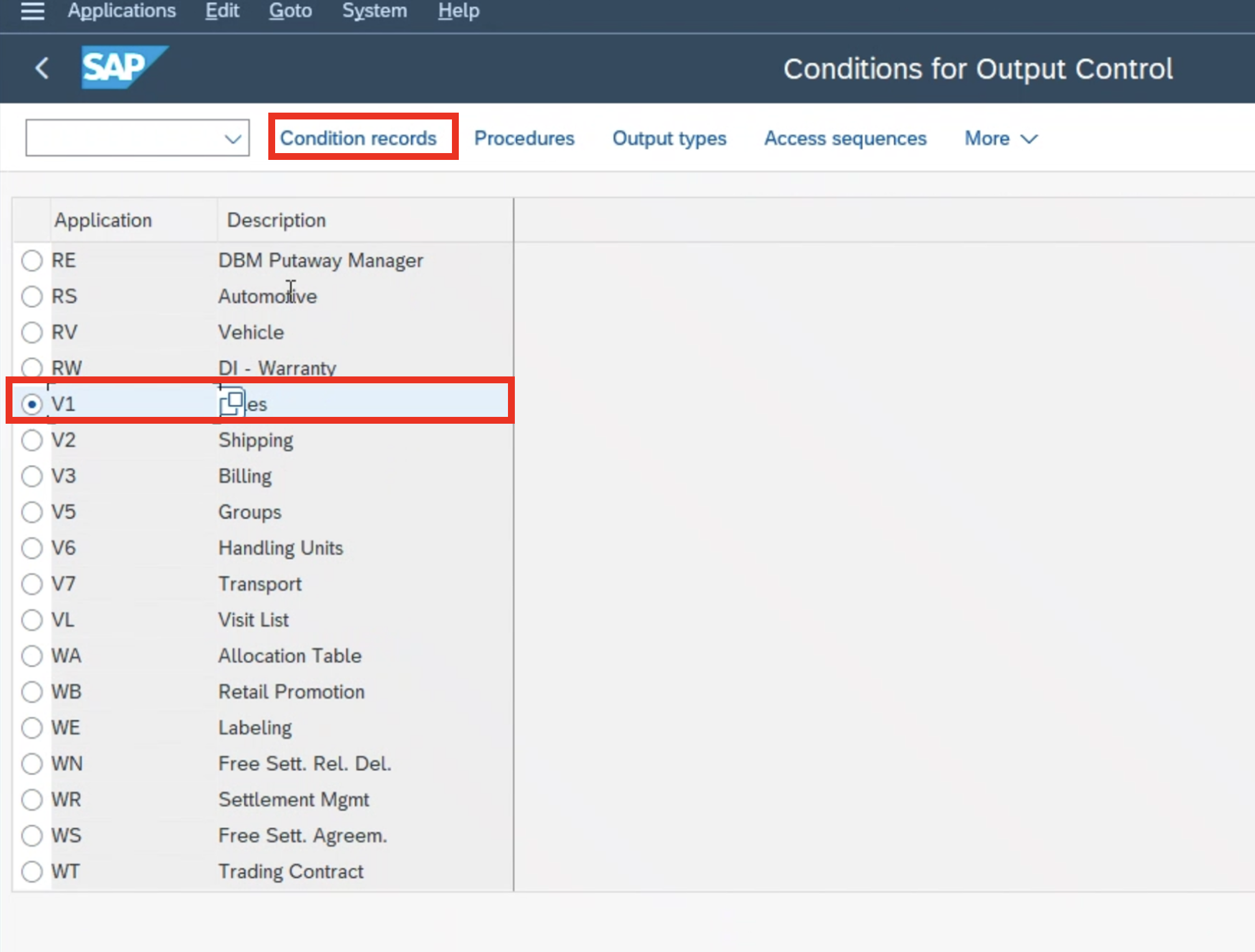

Once you select the application, go ahead and click on Condition Records




STEP 4

Scroll down and select the Output type to set up.



STEP 5

Select Output Condition and click in Create.

A screenshot of a computerDescription automatically generated

STEP 6

Specify which document types will be created automatically with this output.
Click Save

A screenshot of a computerDescription automatically generated

4. Configure Logical system


STEP 1

Go to the Transaction field and enter “SALE” in the input box. Press Enter or click the checkmark.








STEP 2

Select Define Logical System

A screenshot of a computerDescription automatically generated

STEP 3

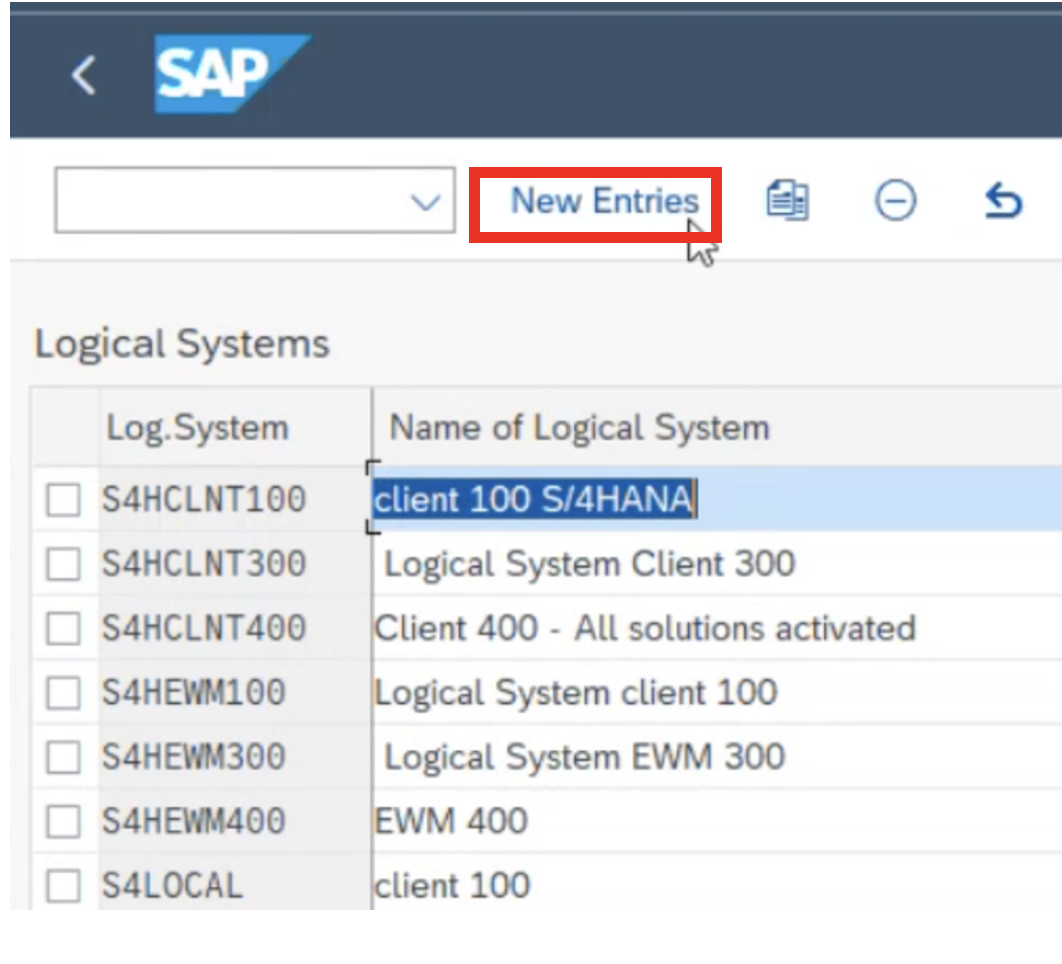

Click in New Entries


STEP 4

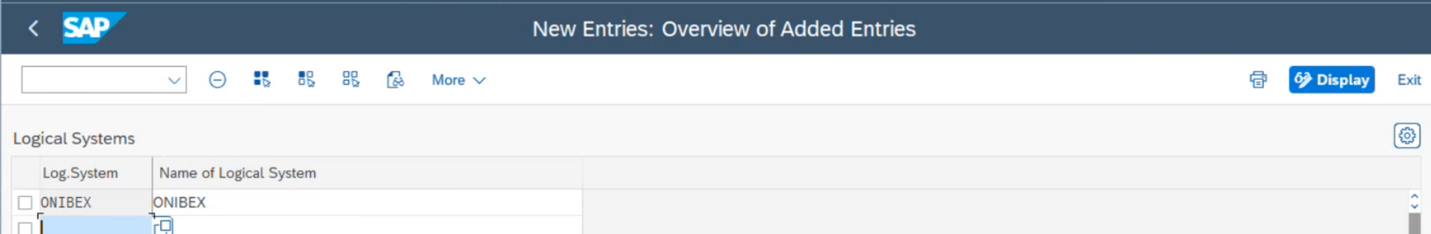

Type Name  : Select the name of the Log System. We will use Onibex.
Name of Logical System : Select the name of the name of logical system.  We will use Onibex.
Click save

A screenshot of a computerDescription automatically generated








5.  Port Configuration Connection.

STEP 1

Go to the Transaction field and enter “WE21” in the input box.
Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated

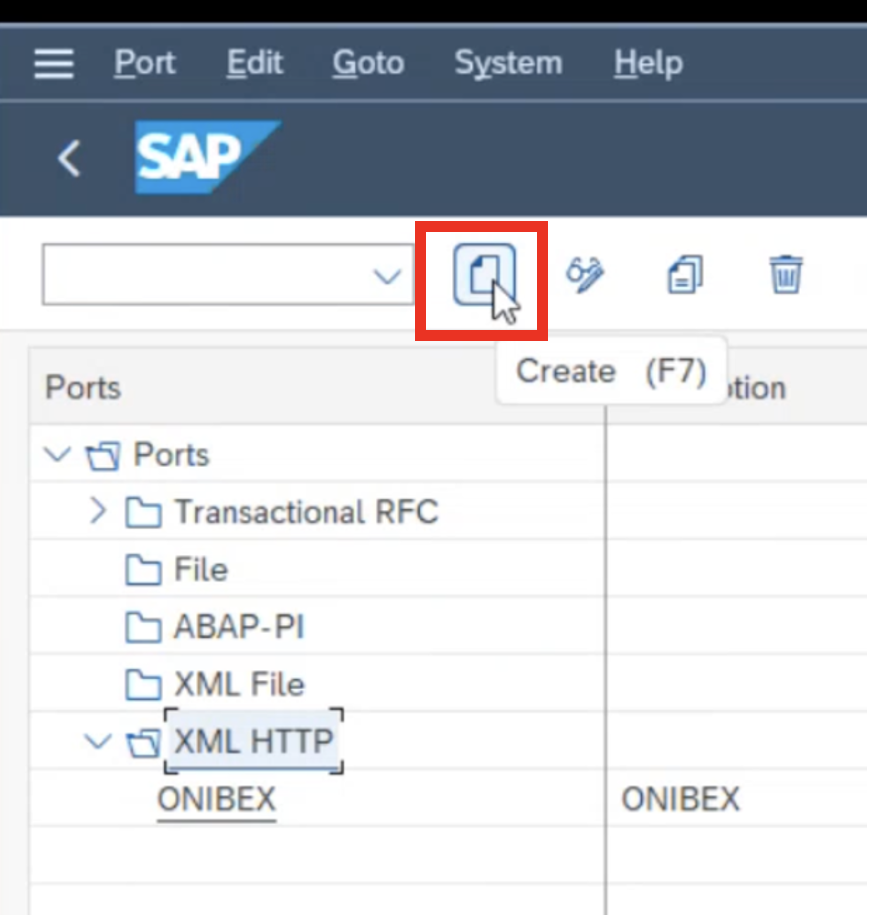

STEP 2

Select create



STEP 3

Please provide the information that needs completion, as shown below:
  1. Port: ONIBEX_ID
  1. Description: Onibex IDOC
  1. RFC destination : Select your pre-configured RFC Destination

Make sure to select in content type application / x - sap.idoc

Save

A screenshot of a computerDescription automatically generated

6. Logical system configuration IDOC

STEP 1

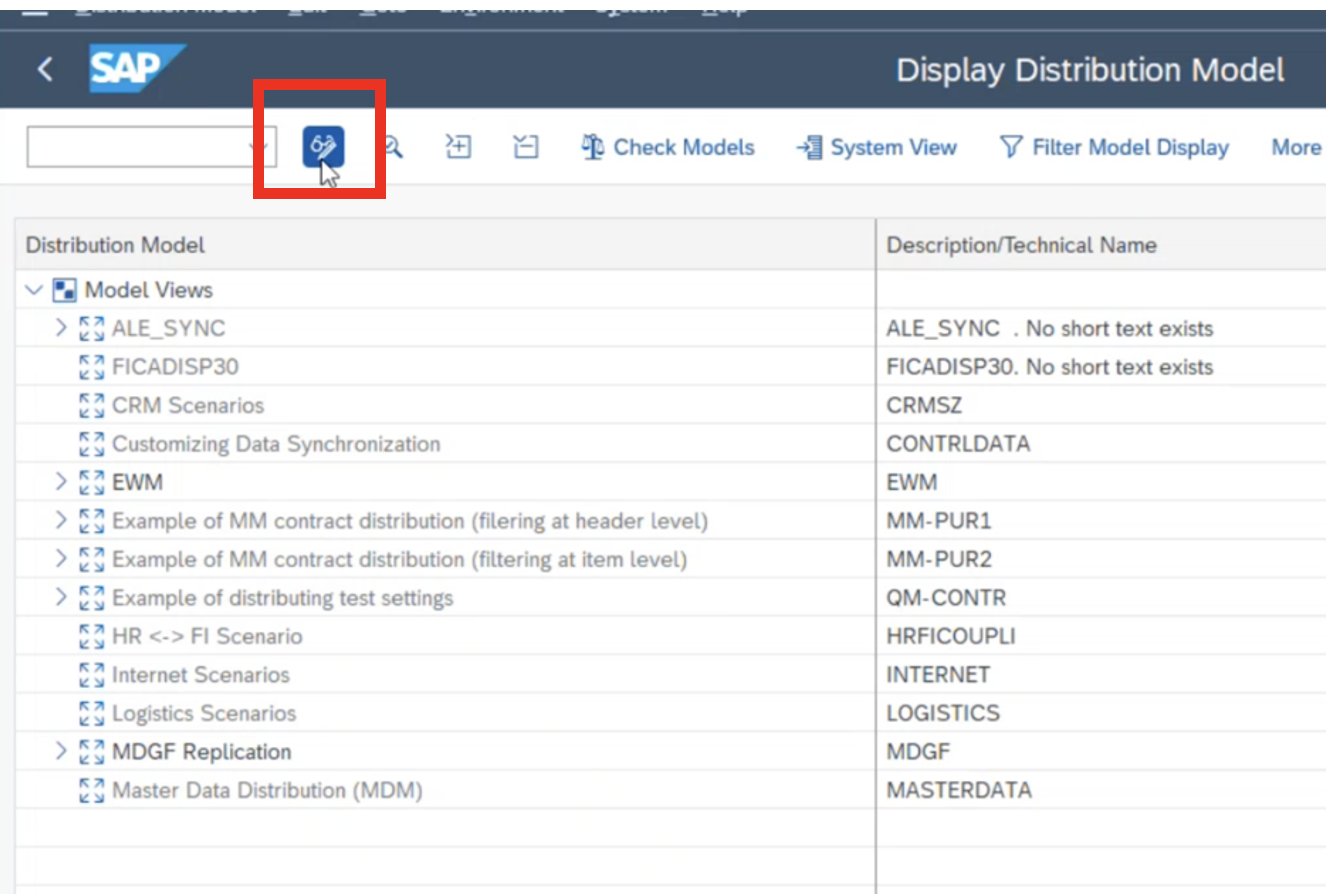

Go to the Transaction field and enter “BD64” in the input box. Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated

STEP 2


Click in Edit



STEP 3


Click in “Create model view
Short text: ONIBEX
Technical name: ONIBEX
Click save

A screenshot of a computerDescription automatically generated

STEP 4

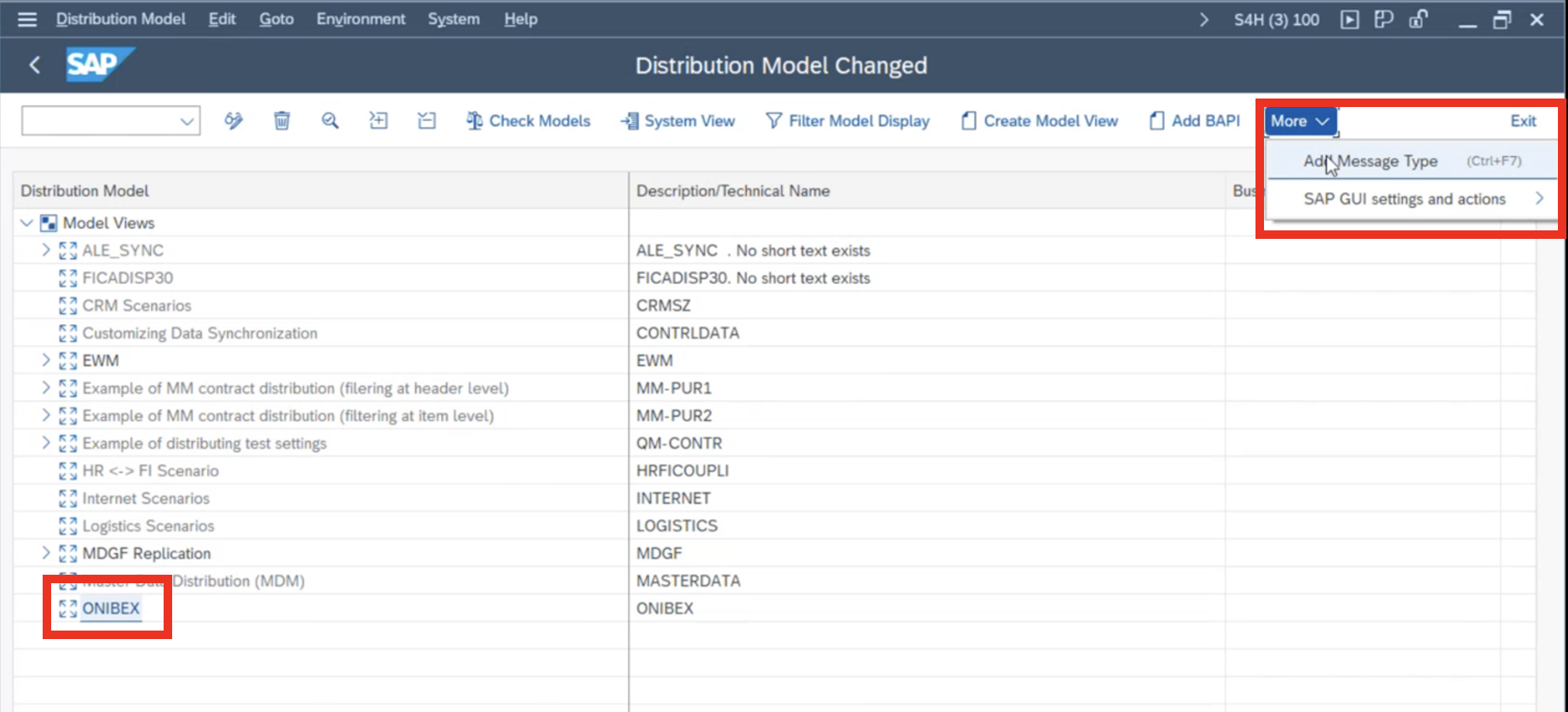

Select Project and click More “Add Message Type”



STEP 5


Add the following data:
  1. Model View: Onibex
  1. Sender: Default server system
  1. Receiver: Onibex

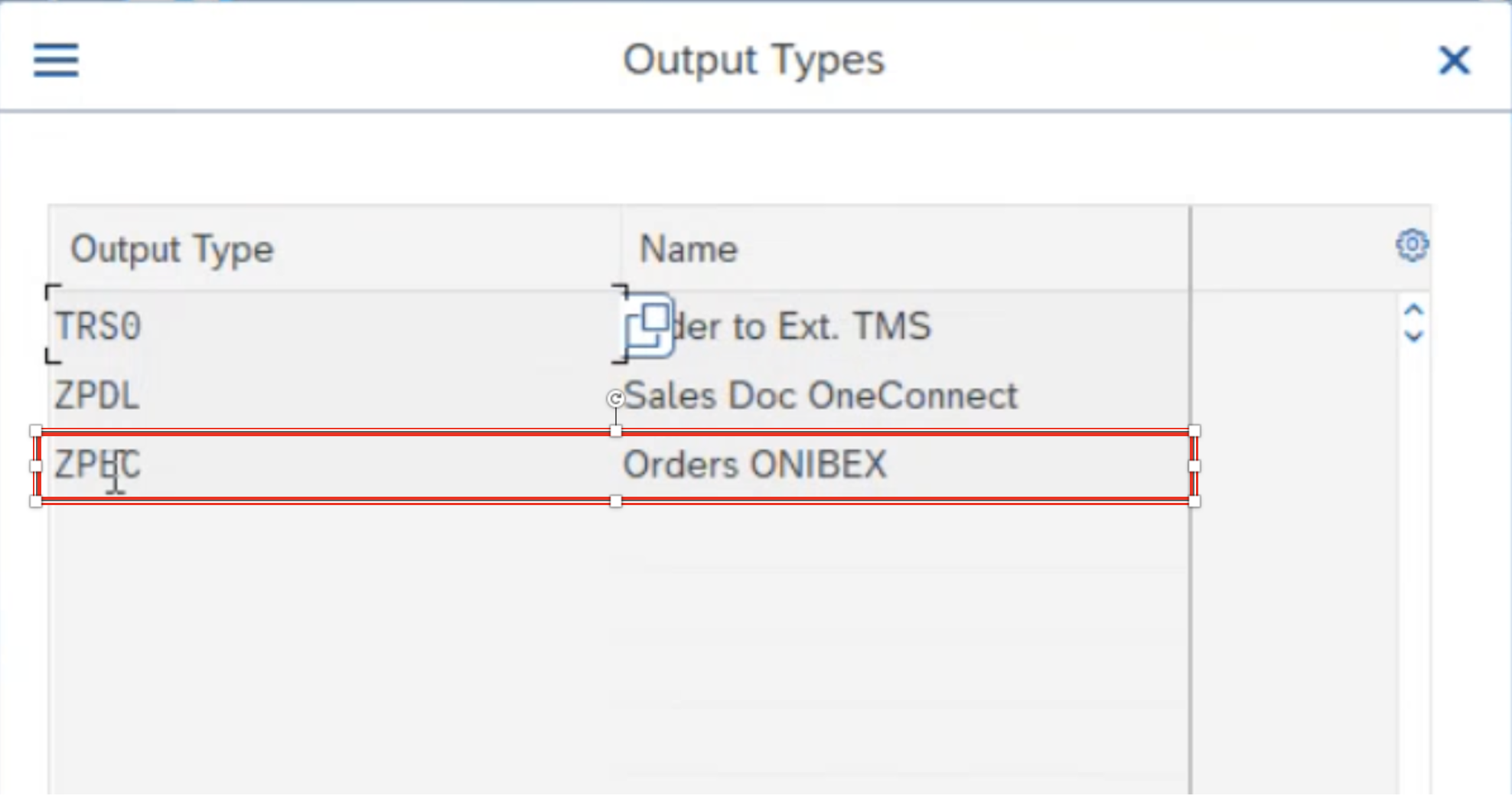

  1. Message Type:  Select the output type accordingly to the IDOC TYPE that you are setting up.

Transactional Data

Process

Output type

Access Sequence

IDOC TYPE

Transport (V7)

ZTEC

001

SHPADV

Deliveries (V2)

ZDEC

001

DESADV

Invoices (V3)

ZFEC

001

INVOIC

Sales Order (V1)

ZPEC

002

ORDRSP

Purchase Order (EF)

ZOEC

001

ORDERS














A screenshot of a computerDescription automatically generated

7. DOC Configuration


STEP 1

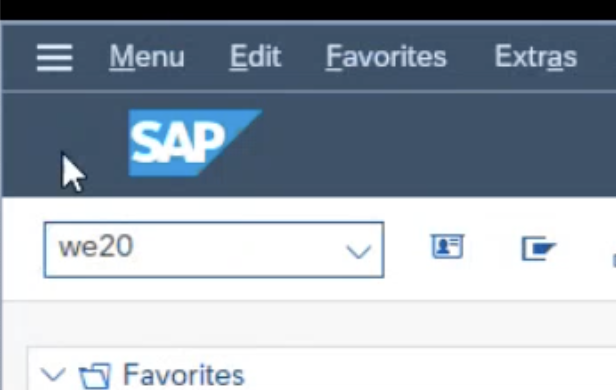

Go to the Transaction field and enter “WE20” in the input box. Press Enter or click the checkmark.

A screenshot of a computerDescription automatically generated


STEP 2

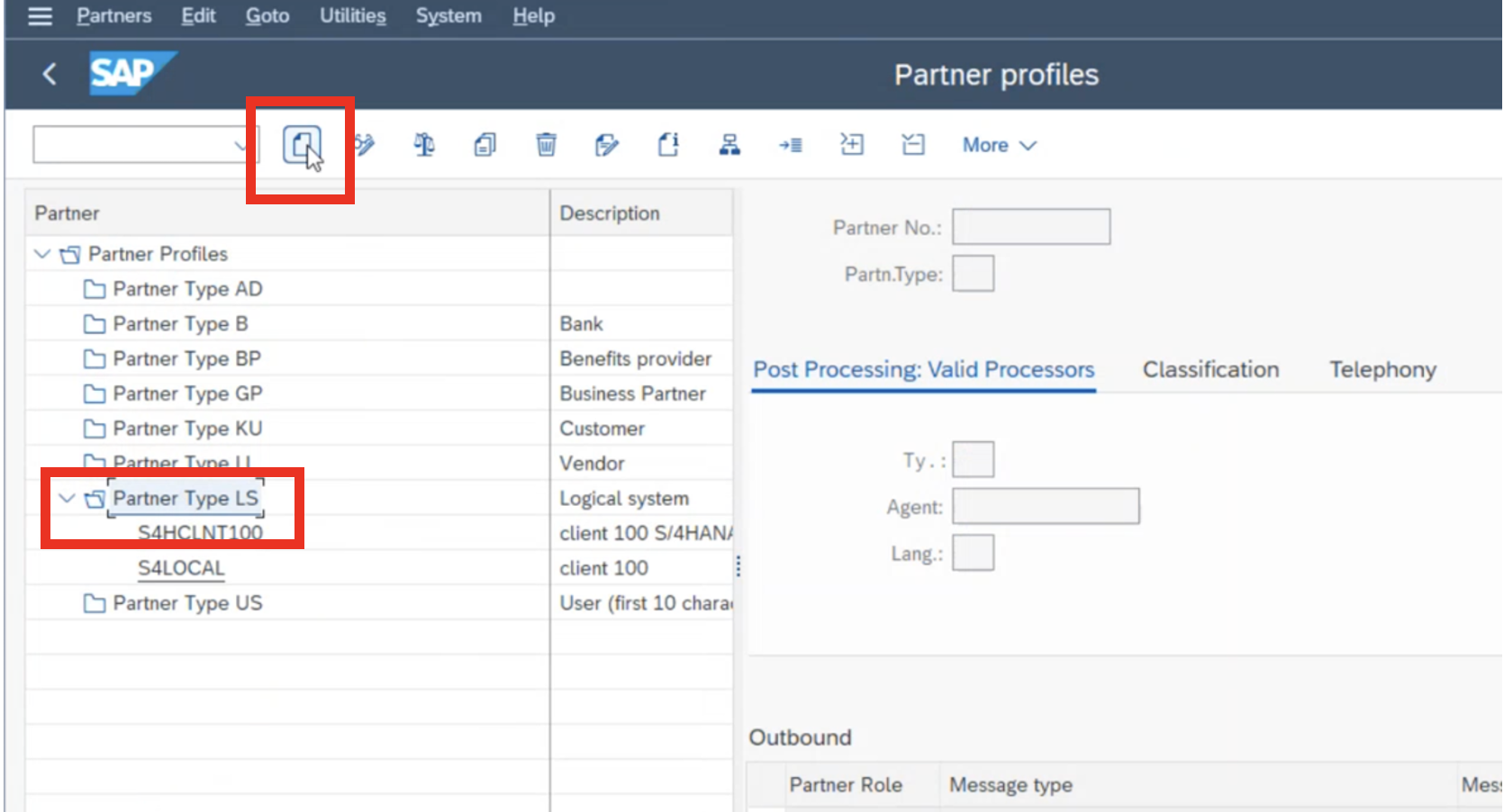

Select Partner Type LS
Select Create



STEP 3


Please fill the information as shown below:
  1. Partner No: Onibex
  1. Partner type : LS
  1. TY: US
  1. Agent: Username
  1. Lang: Select the language that you want to set up.
Create new Outbound

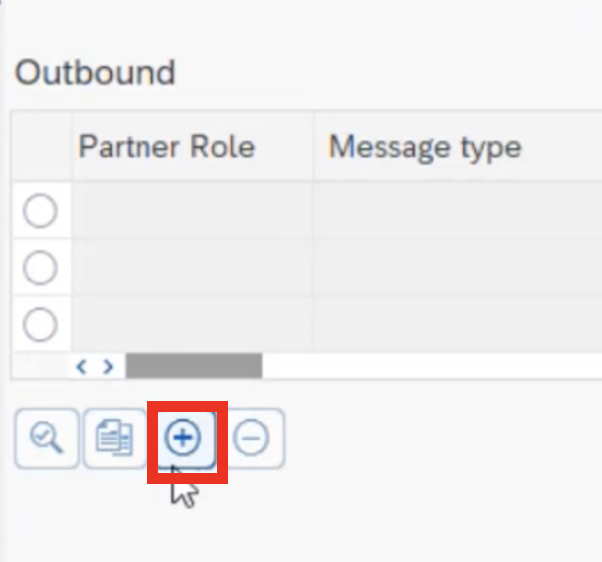

Scroll down and select the “ Plus ” icon as shown below:
A screenshot of a computerDescription automatically generated


STEP 4

Please fill the information as shown below:

Partner No: Onibex
Partn.Type: LS

Message Type:  Select the Message type according to the process that you are setting up.

IDOC TYPE
Basic type: Select the Base type according to the process that you are setting up.

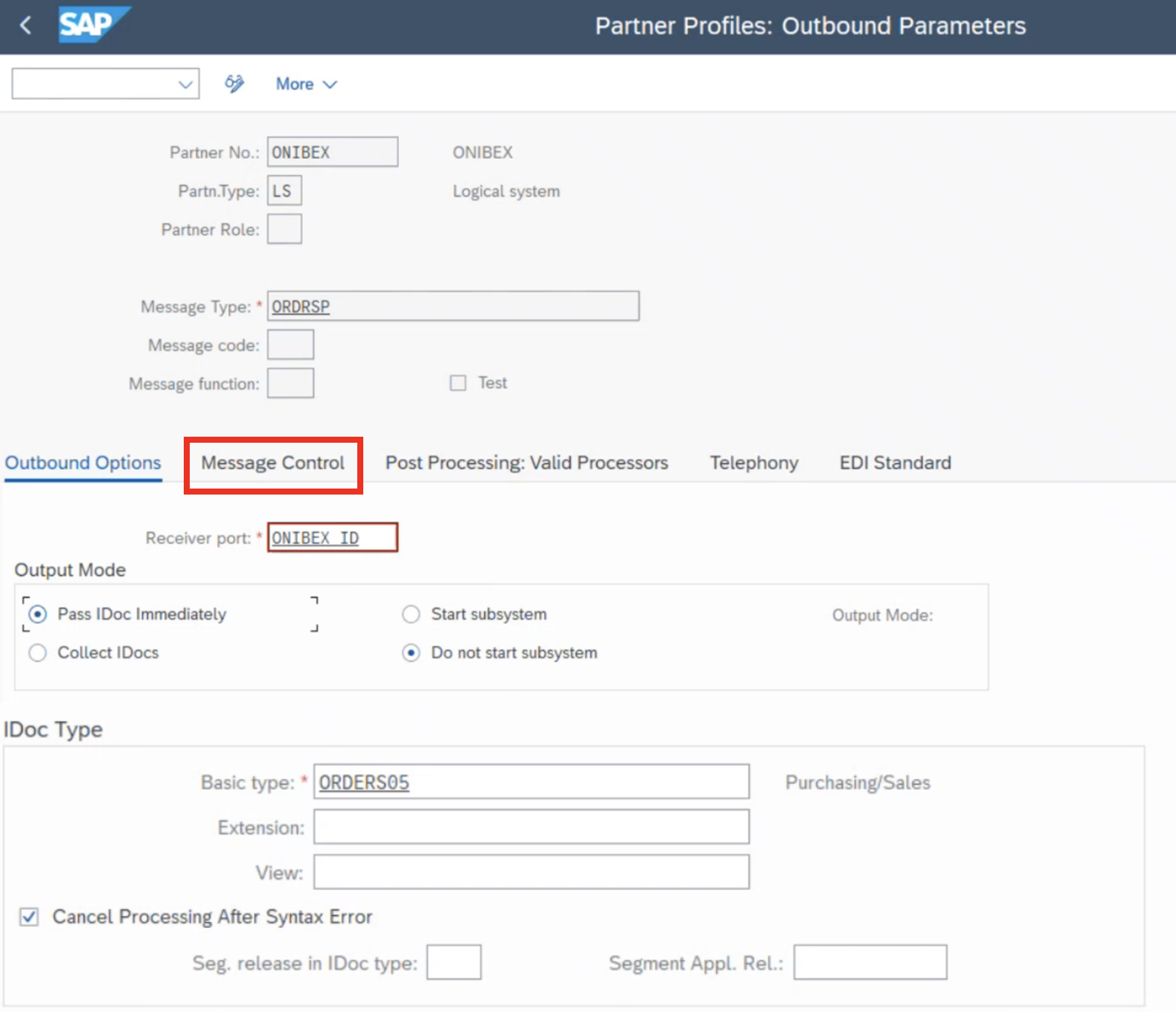

Once you complete the data, select : “Message Control”

 Use the table as reference.

IDOC Type

Base Type

Application

Output Type

Process Type

ORDRSP

ORDERS05

V1

ZPEC

SD10

DESADV

DELVRY07

V2

ZDEC

DELV

INVOIC

INVOIC02

V3

ZFEC

SD09

SHPADV

SHPMNT05

V7

ZTEC

SHPM




STEP 5


Create new Message Control

Complete the data as shown below:

Application: V1
Message type: Select the Message type according to the process that you are setting up.
Process Code: Select the Process type according to the process that you are setting up.
Save

Use the table as reference.

IDOC Type

Base Type

Application

Output Type

Process Type

ORDRSP

ORDERS05

V1

ZPEC

SD10

DESADV

DELVRY07

V2

ZDEC

DELV

INVOIC

INVOIC02

V3

ZFEC

SD09

SHPADV

SHPMNT05

V7

ZTEC

SHPM



A screenshot of a computerDescription automatically generated
A screen shot of a computerDescription automatically generated

NOTE: For transactional processes, configuration is required in both the outbound option tab and the message control tab. Materials and clients only need configuration in the outbound tab.

8. IDOC Reference Tables Summary.

 1. Master Data Outbound Idocs

Master Data
Process
IDOC TYPE

Clients
DEBMAS
ADRMAS
ADR3MAS
Materials
MATMAS
Purchase Order
ORDERS
Inventory
ZON_INV








2. Transactional Outbound Idocs

Transactional
Process
Output type
Access Sequence
IDOC TYPE
Transport (V7)
ZTEC
001
SHPADV
Deliveries (V2)
ZDEC
001
DESADV
Invoices (V3)
ZFEC
001
INVOIC
Sales Order (V1)
ZPEC
002
ORDRSP
Purchase Order (EF)
ZOEC
001
ORDERS








3. Outbound Idocs reference table.

IDOC Type
Base Type
Application
Output Type
Process Type
ORDRSP
ORDERS05
V1
ZPEC
SD10
DESADV
DELVRY07
V2
ZDEC
DELV
INVOIC
INVOIC02
V3
ZFEC
SD09
SHPADV
SHPMNT05
V7
ZTEC
SHPM
ADRMAS
ADRMAS03
-
-
-
ADR3MAS
ADR3MAS03
-
-
-
DEBMAS
DEBMAS05
-
-
-
MATMAS
MATMAS05
-
-
-
