10. ORDERS iDOC configuration for Sales Orders

10. ORDERS iDOC configuration for Sales Orders

ORDERS iDOC is used to create a Sales Order. This iDOC is sent as a message to the SAP system from the E-Commerce portal.

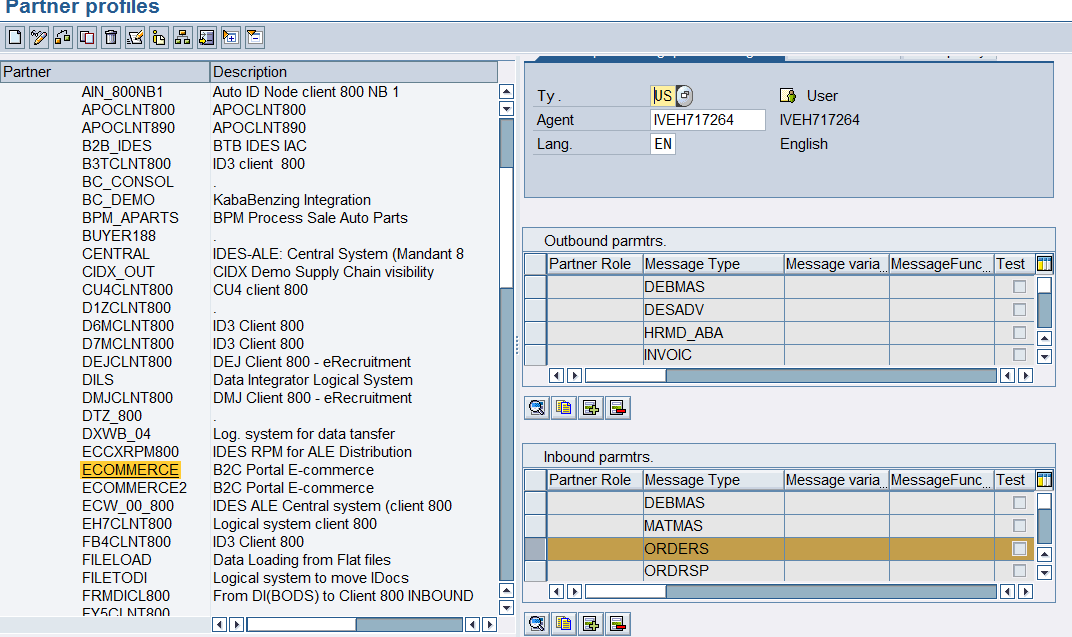

In SAP, the configuration of ORDERS iDOC begins in transaction WE20, on the Logical Systems part as an Inbound message, as described in the screen from Figure-87.



Figure-87 Setting up the Inbound ORDERS iDOC to receive Sales Orders from the E-Commerce portal in SAP.

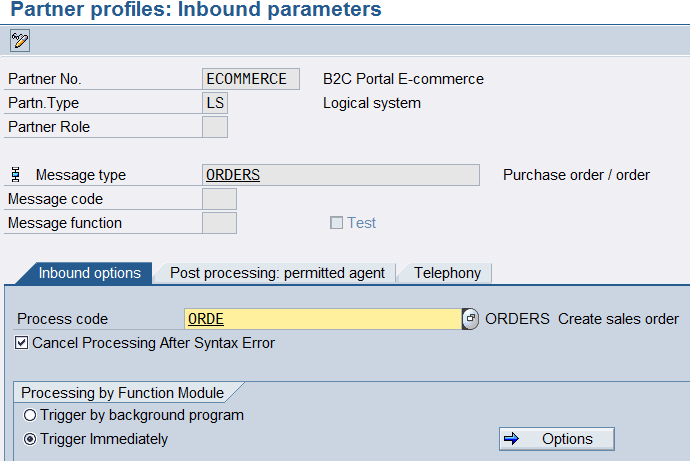

When this entry is added, fill in the Inbound parameters as shown in Figure-88:



Figure-88 Setting up the iDOC in WE20 for sales order message reception.


All other tabs from Figure-88 will remain empty.

The message that must be received before successfully creating this order is shown in the following example, or using WE02:


<?xml version="1.0" encoding="UTF-8"?>

<ORDERS05>


<IDOC BEGIN="1">

 <EDI_DC40 SEGMENT="1">

  <TABNAM>EDI_DC40</TABNAM>

  <MANDT>800</MANDT>

  <DOCNUM>0000000025103215</DOCNUM>

  <DOCREL>740</DOCREL>

  <STATUS>30</STATUS>

  <DIRECT>1</DIRECT>

  <OUTMOD>2</OUTMOD>

  <IDOCTYP>ORDERS05</IDOCTYP>

  <MESTYP>ORDERS</MESTYP>

  <SNDPOR>SAPERP</SNDPOR>

  <SNDPRT>LS</SNDPRT>

  <SNDPRN>EH7CLNT800</SNDPRN>

  <RCVPOR>ECOMMERCE</RCVPOR>

  <RCVPRT>LS</RCVPRT>

  <RCVPRN>ECOMMERCE</RCVPRN>

  <CREDAT>20160901</CREDAT>

  <CRETIM>072024</CRETIM>

  <SERIAL>20160819072024</SERIAL>

 </EDI_DC40>


 <E1EDK01 SEGMENT="1">

  <ACTION>000</ACTION>

  <BELNR>25103000</BELNR>

  <CURCY>USD</CURCY>

  <ZTERM>Z030</ZTERM>

  <BSART>OR</BSART>

  <LIFSK>90</LIFSK>

 </E1EDK01>


 <E1EDK14 SEGMENT="1">

  <QUALF>012</QUALF>

  <ORGID>TA</ORGID>

 </E1EDK14>


  <E1EDK14 SEGMENT="1">

  <QUALF>005</QUALF>

  <ORGID>3800</ORGID>

 </E1EDK14>


<E1EDK14 SEGMENT="1">

  <QUALF>006</QUALF>

  <ORGID>00</ORGID>

 </E1EDK14>



 <E1EDK14 SEGMENT="1">

  <QUALF>007</QUALF>

  <ORGID>10</ORGID>

 </E1EDK14>


 <E1EDK14 SEGMENT="1">

  <QUALF>008</QUALF>

  <ORGID>3000</ORGID>

 </E1EDK14>


 <E1EDK03 SEGMENT="1">

  <IDDAT>002</IDDAT>

  <DATUM>20160913</DATUM>

 </E1EDK03>



 <E1EDKA1 SEGMENT="1">

  <PARVW>AG</PARVW>

  <PARTN>0000100016</PARTN>

  <NAME1>Alexander Hodorozky</NAME1>

  <STRAS>20777 Bear Valley Rd</STRAS>

  <ORT01>Los Angeles</ORT01>

  <PSTLZ>92308</PSTLZ>

  <LAND1>US</LAND1>

  <REGIO>CA</REGIO>

  <PFORT>92308</PFORT>

 </E1EDKA1>



 <E1EDKA1 SEGMENT="1">

  <PARVW>RE</PARVW>

  <PARTN>0000100016</PARTN>

  <NAME1>Alexander Hodorozky</NAME1>

  <STRAS>20777 Bear Valley Rd</STRAS>

  <ORT01>Los Angeles</ORT01>

  <PSTLZ>02308</PSTLZ>

  <LAND1>US</LAND1>

  <REGIO>CA</REGIO>

  <PFORT>92308</PFORT>

 </E1EDKA1>



 <E1EDKA1 SEGMENT="1">

  <PARVW>RG</PARVW>

  <PARTN>0000100016</PARTN>

  <NAME1>Alexander Hodorozky</NAME1>

  <STRAS>20777 Bear Valley Rd</STRAS>

  <ORT01>Los Angeles</ORT01>

  <PSTLZ>773811234</PSTLZ>

  <LAND1>US</LAND1>

  <REGIO>CA</REGIO>

  <PFORT>92308</PFORT>

 </E1EDKA1>



 <E1EDKA1 SEGMENT="1">

  <PARVW>WE</PARVW>

  <PARTN>0000100016</PARTN>

  <NAME1>Alexander Hodorozky</NAME1>

  <STRAS>20777 Bear Valley Rd</STRAS>

  <ORT01>Los Angeles</ORT01>

  <PSTLZ>92308</PSTLZ>

  <LAND1>US</LAND1>

  <REGIO>CA</REGIO>

  <PFORT>92308</PFORT>

 </E1EDKA1>



  <E1EDK02 SEGMENT="1">

  <QUALF>001</QUALF>

  <BELNR>450012345</BELNR>

  <DATUM>20160813</DATUM>

 </E1EDK02>


  <E1EDP01 SEGMENT="1">

  <QUALF>001</QUALF>

  <IDTNR>021V007534937002</IDTNR>

  <POSEX>00010</POSEX>

  <PSTYP>TAN</PSTYP>

  <MENGE>2</MENGE>

  <WERKS>3800</WERKS>

  <LGORT>0001</LGORT>



  <E1EDP19 SEGMENT="1">

   <QUALF>001</QUALF>

   <IDTNR>021V007534937002</IDTNR>

  </E1EDP19>


  <E1EDP19 SEGMENT="1">

   <QUALF>002</QUALF>

   <IDTNR>US-01-1000</IDTNR>

  </E1EDP19>



   <E1EDP01 SEGMENT="1">

  <QUALF>001</QUALF>

  <IDTNR>021V007534937002</IDTNR>

  <POSEX>00020</POSEX>

  <PSTYP>TAN</PSTYP>

  <MENGE>8</MENGE>

  <WERKS>3800</WERKS>

  <LGORT>0001</LGORT>



  <E1EDP19 SEGMENT="1">

   <QUALF>001</QUALF>

   <IDTNR>021V007534937004</IDTNR>

  </E1EDP19>


  <E1EDP19 SEGMENT="1">

   <QUALF>002</QUALF>

   <IDTNR>US-01-2000</IDTNR>

  </E1EDP19>




  <E1EDP19 SEGMENT="1">

   <QUALF>003</QUALF>

   <IDTNR>753793815800</IDTNR>

  </E1EDP19>


  </E1EDP01>

</IDOC>

</ORDERS05>
