Manual: Sending Z Tables via SAP Data Modeler and Custom Z Program

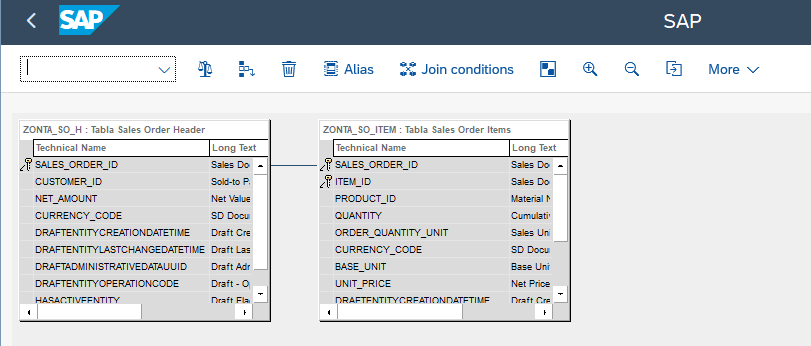

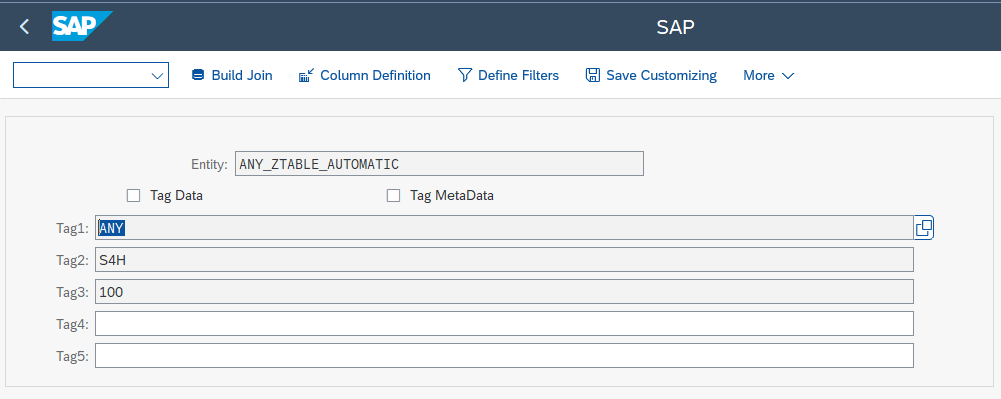

In the SAP Data Modeler, create an “ANY” Entity including the desired Z tables. Ensure the Domain is set to ANY.

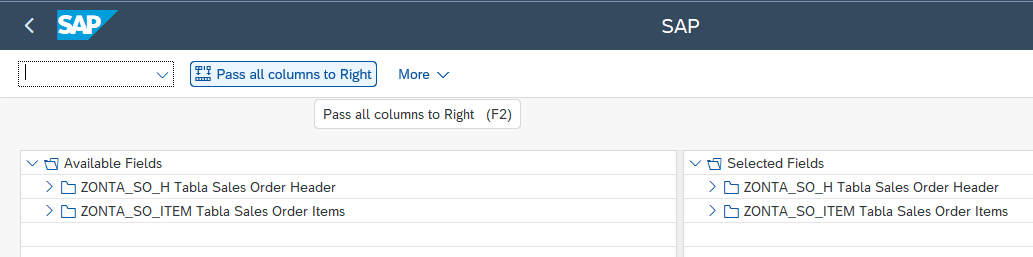

Inside the entity, select the desired columns to send in the Column Definition.


Save the new Entity.

You can follow the steps for creating an ANY entity manually referring to the following link: ANY Entity

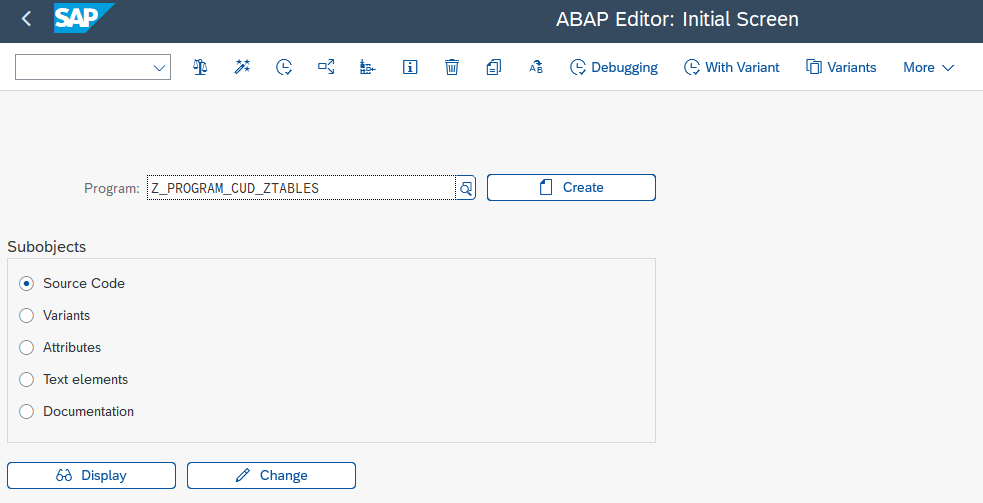

In transaction SE38, locate the Z Program provided by Onibex: Z_PROGRAM_CUD_ZTABLES.

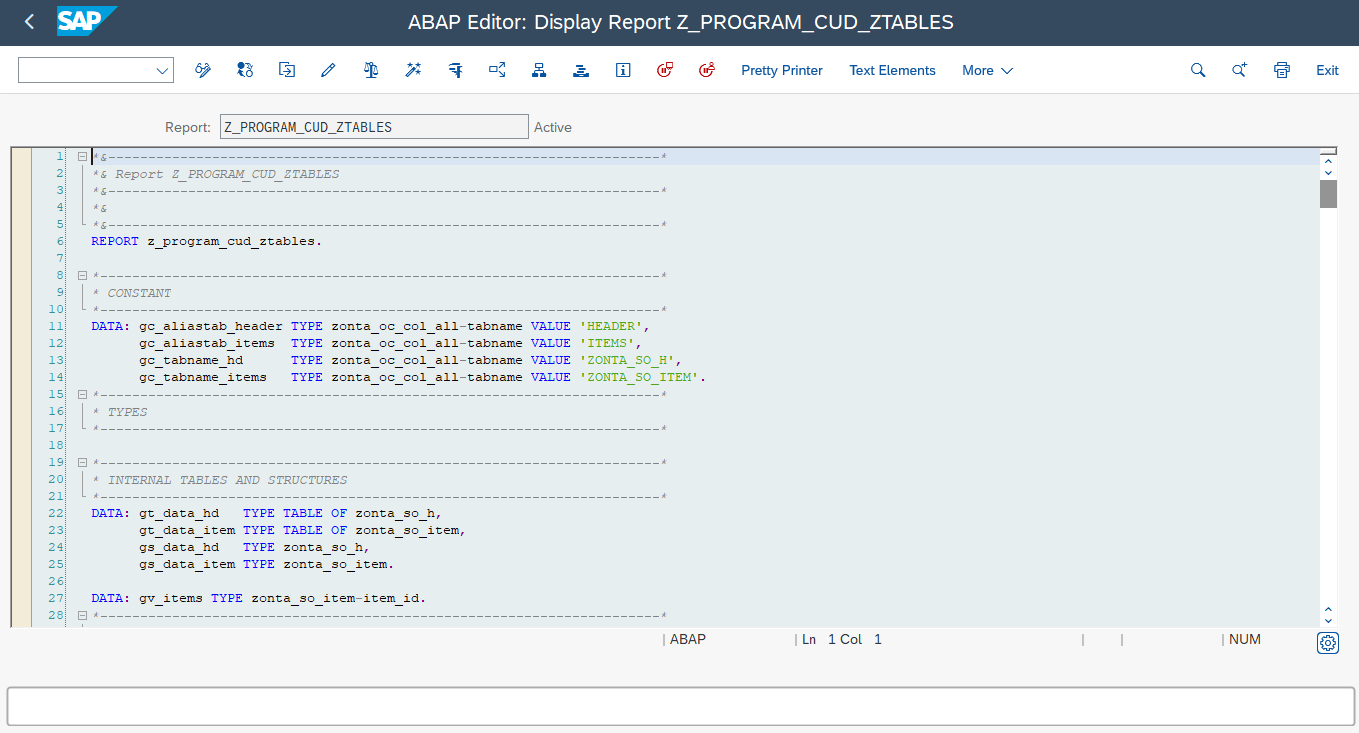

In Display/Change mode, review the program logic to confirm it sends the appropriate Z tables.
Update this Z Program to include the necessary logic to handle the tables specific to your implementation.
This process ensures the program reacts to create, update, and delete events on the Z tables.

Example ABAP Code for Sending Z Tables

To send Z tables, use the following structure depending on the operation type. For create or update operations, set iv_update = abap_true and iv_delete = abap_false. For delete operations, use iv_update = abap_false and iv_delete = abap_true.

*----------------------------------------------------------------------*
* CONSTANTS
*----------------------------------------------------------------------*
DATA: gc_aliastab_header TYPE zonta_oc_col_all-tabname VALUE 'HEADER',
      gc_aliastab_items  TYPE zonta_oc_col_all-tabname VALUE 'ITEMS',
      gc_tabname_hd      TYPE zonta_oc_col_all-tabname VALUE 'ZONTA_SO_H',
      gc_tabname_items   TYPE zonta_oc_col_all-tabname VALUE 'ZONTA_SO_ITEM'.

* Send for each table:

NEW zoncl_fetch_data( )->send_json_any_internal_table(
    iv_tabname     = gc_tabname_hd
    iv_aliastab    = gc_aliastab_header      " Table Alias
    iv_update      = abap_true
    iv_delete      = abap_false
    it_tables_data = gt_data_hd
    iv_alias       = abap_false
    iv_fieldname   = abap_true
*   iv_dest        = 'ONIBEX_DEMO'
*   iv_bothnames   =
).

NEW zoncl_fetch_data( )->send_json_any_internal_table(
    iv_tabname     = gc_tabname_items
    iv_aliastab    = gc_aliastab_items       " Table Alias
    iv_update      = abap_true
    iv_delete      = abap_false
    it_tables_data = gt_data_item
    iv_alias       = abap_false
    iv_fieldname   = abap_true
*   iv_dest        = 'ONIBEX_DEMO'
*   iv_bothnames   =
).
