HANA Sink Connector Setup

HANA Sink Connector Setup

v1.0 · 2026

0	Prerequisites

Before starting, make sure you have the following access and information available.

Required Access

Access to AKHQ (Kafka administration UI)

HANA connection details: URL, schema, user and password

1	Set Up the HANA Sink Connector in AKHQ

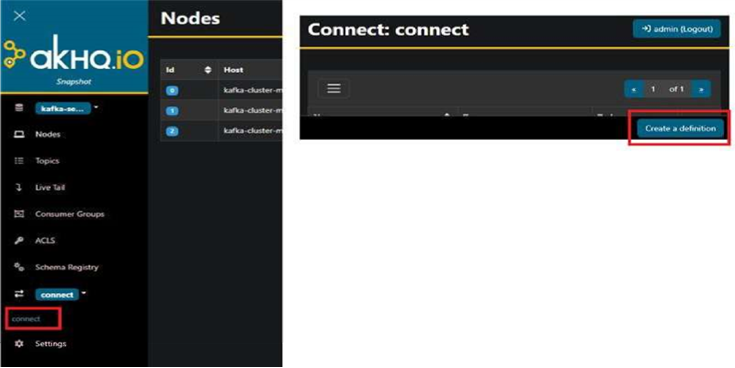

Step 1.1 — Navigate to Connect and create a new definition

In the left panel, click on "connect". Then click the "Create a Definition" button.

Group 6025, Objeto agrupado

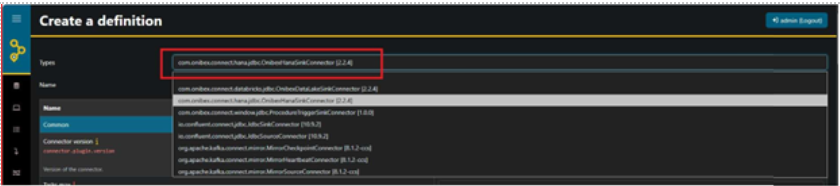

Step 1.2 — Select the connector type From the Types dropdown, select:

com.onibex.connect.hana.jdbc.OnibexHanaSinkConnector [2.2.4]

Step 1.3 — Enter the connector name

In the Name field, enter the connector name following this naming convention:

HANADB_[CLIENT]_[ENVIRONMENT]_[SUFFIX]

Note: The team will define the name, client, and environment before delivering the connector configuration. Use the exact name provided.

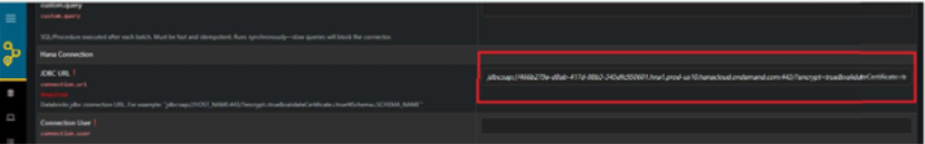

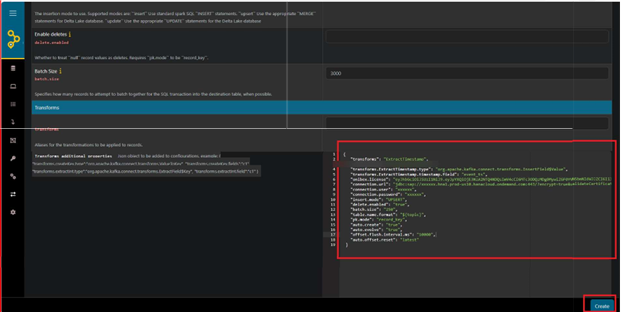

Step 1.4 — Enter JDBC URL and complete the JSON configuration

Enter the HANA JDBC connection URL in the JDBC URL field. Then, in the text editor area, paste the following JSON configuration. Replace the placeholder values with your actual environment information:

{
  "transforms": "ExtractTimestamp",
    "topics": "",
    "topics.regex": "YOURPREFIX_DEV_T.*",     "transforms.ExtractTimestamp.type":
"org.apache.kafka.connect.transforms.InsertField$Value",
    "transforms.ExtractTimestamp.timestamp.field": "event_ts",     "onibex.license": "eyJhbGciOiJSUzI1NiJ9...........",     "connection.url":
"jdbc:sap://REPLACE_URL.hanacloud.ondemand.com:443/?encrypt=true&validateCertificate=true
&currentSchema=REPLACE_SCHEMA",
    "connection.user": "REPLACE_USER",
    "connection.password": "REPLACE_PASSWORD",
    "insert.mode": "UPSERT",
    "delete.enabled": "true",
    "batch.size": "100",
    "table.name.format": "${topic}",
    "pk.mode": "record_key",
    "auto.create": "true",
    "auto.evolve": "true",
    "offset.flush.interval.ms": "10000",
    "auto.offset.reset": "latest"
}

Note: Replace all REPLACE_* placeholder values with the actual credentials for your environment (DEV/QA/PROD).

Sensitive credentials (URL, user, password) must be handled securely and never shared publicly.

Group 7720, Objeto agrupado

Step 1.5 — Create the connector

Once all fields are filled in, click the "Create" button to submit the connector configuration. AKHQ will validate and register the connector.

Note: After creation, verify that the connector status shows RUNNING in the AKHQ Connect view.

Group 7699, Objeto agrupado

Quick Verification

Confirm each step was completed successfully.

Step	Component	Expected Status
1	Connect panel	"connect" option visible in left panel
2	Connector type	com.onibex.connect.hana.jdbc.OnibexHanaSinkConnector selected
3	Connector name	Name entered following the naming convention
4	JSON configuration	All REPLACE_* fields filled with actual values
5	Connector status	Status RUNNING in AKHQ

Glossary

Term	Definition
AKHQ	Web-based administration UI for Apache Kafka. Used to manage connectors, topics, and consumers.
SAP HANA	SAP's in-memory database. The destination where the connector writes data.
Kafka	Distributed messaging and event-streaming platform. Source of data for the HANA Sink connector.
HANA Sink Connector	Kafka Connect plugin that receives events from Kafka topics and inserts them into SAP HANA tables.
JDBC URL	Connection string used to establish a link to the SAP HANA database (includes host, port, schema).
topics.regex	Pattern matching Kafka topic names. The connector subscribes to all topics matching this regex.
UPSERT	Insert mode that inserts new records or updates existing ones based on the primary key.
Environment	Execution environment identifier. Defined by the team before delivering files to the client.
