Overview

This guide walks through the steps required to connect kubectl to a BTP Kyma environment using an AWS EC2 instance as the intermediary host.

Prerequisites

  • EC2 instance running Amazon Linux.
  • pem key file for the EC2 instance (e.g., <KEY_PAIR_NAME>.pem).
  • SAP BTP credentials with access to the Kyma environment.
  • OpenSSH on Windows (included by default in Windows 10/11).
  • Access to the oneconnectkyma.zip deployment file.

Placeholder values are shown in square brackets < >. Replace them with your actual values before executing any command.

Placeholder Description
<KEY_PAIR_NAME>.pem Name of the EC2 .pem key file
<EC2_USER> SSH user for the EC2 (e.g., ec2-user, ubuntu)
<EC2_PUBLIC_IP> Public IP address of the EC2 instance

Step 1 — Connect to the EC2 via SSH

Open PowerShell on Windows and set the correct permissions on the .pem file so that SSH accepts it:

icacls ".\<KEY_PAIR_NAME>.pem" /inheritance:r icacls ".\<KEY_PAIR_NAME>.pem" /grant:r "$($env:USERNAME):(R)"

Connect to the EC2 instance including the port tunnels required for Kyma OIDC authentication:

ssh -i ".\<KEY_PAIR_NAME>.pem" -L 8000:localhost:8000 -L 18000:localhost:18000 <EC2_USER>@<EC2_PUBLIC_IP>

Idea
Note
The -L 8000:localhost:8000 and -L 18000:localhost:18000 parameters create an SSH tunnel that allows Kyma's OIDC authentication (which opens a browser on port 8000) to work from the local machine.

Step 2 — Install kubectl

Run the following commands inside the EC2 instance:

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl" chmod +x kubectl sudo mv kubectl /usr/local/bin/ kubectl version --client

Idea
Note
The last command should display the installed kubectl version.

Step 3 — Install Helm v3

Run the following commands inside the EC2 instance:

curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash helm version

Step 4 — Install kubelogin (OIDC plugin for kubectl)

Kyma uses OIDC authentication, so the kubelogin plugin is required for kubectl to authenticate:

curl -LO https://github.com/int128/kubelogin/releases/latest/download/kubelogin_linux_amd64.zip unzip kubelogin_linux_amd64.zip sudo mv kubelogin /usr/local/bin/kubectl-oidc_login kubectl oidc-login --version

Step 5 — Download the project file

Download the project ZIP file and extract it:

curl -O https://oneconnectdeploymentaks.s3.us-east-2.amazonaws.com/oneconnectkyma/oneconnectkyma.zip unzip oneconnectkyma.zip

Idea
Note
If unzip is not installed, run: sudo yum install unzip -y

Step 6 — Download the Kyma kubeconfig

Download the kubeconfig file from the Kyma Environment Broker and set it as an environment variable

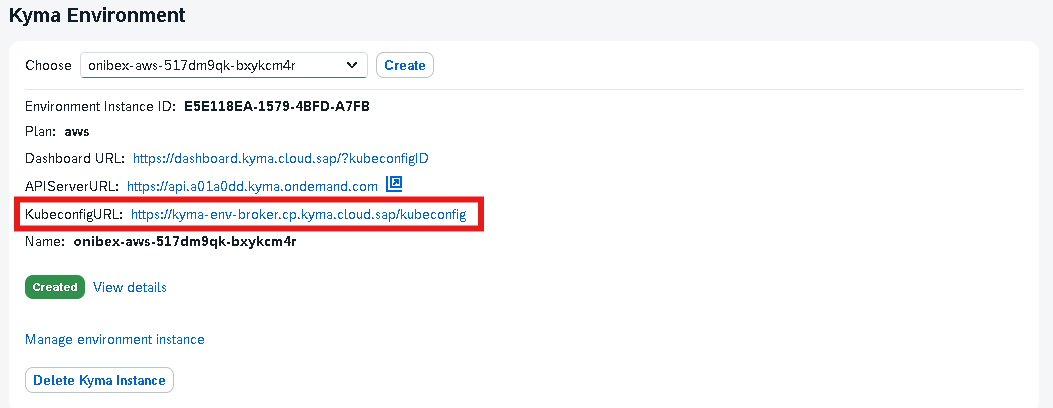

  • Log in to BTP Cockpit → navigate to your Subaccount → Kyma Environment
  • Click on "KubeconfigURL".
  • The system will open a new browser tab and prompt you to download the kubeconfig.yaml file. Wait for the file to download in your local drive.

Placeholder values are shown in square brackets < >. Replace them with your actual values before executing any command.

Placeholder Description
<ENVIRONMENT_INSTANCE_ID> Kyma instance ID (from SAP BTP Cockpit)

curl -L "https://kyma-env-broker.cp.kyma.cloud.sap/kubeconfig/<ENVIRONMENT_INSTANCE_ID>" -o kubeconfig.yaml export KUBECONFIG=~/kubeconfig.yaml

Idea
Note
The <ENVIRONMENT_INSTANCE_ID> can be found in the SAP BTP Cockpit under the Kyma Environment section of your subaccount. If unzip is not installed, run: sudo yum install unzip -y

Step 7 — Verify the connection to the Kyma cluster

Run the following command to verify the connection:

kubectl get namespaces

When running this command, a message will appear in the console asking you to open http://localhost:8000 for authentication.

Open that URL in your local machine browser (Windows), sign in with your SAP BTP credentials, and return to the terminal.

The command should list the Kyma cluster namespaces, confirming a successful connection.
