Overview

This manual guides you through the fully private deployment of OneConnect on SAP BTP Kyma (AWS EKS). All access is routed through SAP Cloud Connector — no services are exposed to the public internet.

Installation Flow Overview

Follow the steps below in order.

Step Section What you will do
0PrerequisitesVerify tools, cluster access, and Docker credentials
1Section 2Install the Strimzi Kafka Operator
2Section 3Deploy the full Kafka Stack
3Section 4Deploy the OneConnect Platform (Cloud Connector mode)
4Section 5Deploy the Observability Stack (monitoring & logging)
5Section 6Enable Istio Sidecar Injection
6Section 7Activate all required Kyma Modules
7Section 8Configure SAP Cloud Connector
✓Section 9Verification & Health Checks

0. Prerequisites

It is necessary to install kubectl and Helm v3. For detailed instructions, please refer to the documentation:

How to connect Kubectl to BTP Kyma environment using AWS EC2

1. Install Strimzi Operator

Strimzi is the Kubernetes operator that manages Kafka clusters declaratively. It must be installed and running before any Kafka resources are applied.

Step 1.1 — Install via Helm

helm install strimzi-operator strimzi-kafka-operator \ --repo https://strimzi.io/charts/ \ --version 0.51.0 \
--namespace kafka \ --create-namespace

Step 1.2 — Verify Operator Health

kubectl get pods -n kafka | grep strimzi-cluster-operator # Expected result: # strimzi-cluster-operator-xxxx 1/1 Running

Idea
Important
Do not proceed to Step 2 until the strimzi-cluster-operator pod shows 1/1 Running. The operator must be healthy before it can process Kafka resources.

2. Deploy Kafka Stack

Deploy the full Kafka stack: Kafka 4.2 in KRaft mode (not compatible with ZooKeeper), Confluent Schema Registry 7.6.0, and Kafka Connect.

Kafka Connect is the component that runs connectors to external databases and platforms such as MySQL and DataBricks.

Idea
Note
Deployment order matters. Always follow the three phases below in sequence.

Phase 1 — Deploy the Kafka Cluster

Replace [your-docker-token] with your Docker Hub personal access token before running this command.

Placeholder Description
[Docker-token] Your Docker Hub personal access token (e.g. dckr_pat_xxxxxxxxxxxx)

cd kafka-platform/ # Deploy kafka helm install kafka-platform ./kafka-platform \ --namespace kafka \ --values kafka-platform/values.yaml \ --set dockerHub.token=[Docker-token] \ --set akhq.serviceMapping.enabled=true \ --set akhq.serviceMapping.subaccountId="[SUBACCOUNT-ID]" \ --set akhq.serviceMapping.locationId="[LOCATION-ID]" # Create akhq service kubectl apply -f - <<EOF apiVersion: v1 kind: Service metadata: name: akhq namespace: kafka spec: selector: app: akhq ports: - port: 8080 targetPort: 8080 type: ClusterIP EOF

Wait until all four pods are Running before moving to Phase 2:

kubectl get pods -n kafka -w # All four pods must show 1/1 Running: # kafka-cluster-main-pool-0 1/1 Running # kafka-cluster-main-pool-1 1/1 Running # kafka-cluster-main-pool-2 1/1 Running # kafka-cluster-entity-operator-xxx 1/1 Running

3. Deploy OneConnect Platform

Deploy all OneConnect application services in Cloud Connector mode. No services are exposed to the public internet — all access flows through SAP Cloud Connector.
Idea
Important
Before running this step, make sure Sections 6 (Istio Sidecar) and 7 (Kyma Modules) are complete. If you have not done those yet, go to Section 6 first and come back here afterward.

Step 3.1 — Install

You will need the three values below. Replace each label with your actual value before running the command:

Placeholder Description
[Docker-token]Your Docker Hub personal access token
[Location-id]Cloud Connector Location ID — e.g. onibex-1 (must match the value you set when configuring Cloud Connector in Section 8)
[Subaccount-id]SAP BTP Subaccount ID — e.g. 6c7a9dbc-8590-479e-9cec-69bf38a9a822 (found in BTP Cockpit → Subaccount overview)

cd helm/one_source-helm-deployment-*/ helm install oneconnect . \ --namespace oneconnect \ --create-namespace \ --values values-aws.yaml \ --set dockerHub.token=[your-docker-token] \ --set cloudConnector.enabled=true \ --set cloudConnector.locationId="[LOCATION-ID]" \ --set cloudConnector.subaccountId="[SUBACCOUNT-ID]"

Idea
Note
The locationId and subaccountId flags are both required. If either is missing, the Helm chart will display a clear error message.

Step 3.2 — Resources Created by This Deployment

Resource Name Details
ServiceMappingapigateway-mappingMaps apigateway.oneconnect.svc.cluster.local:9000
ServiceMappingfrontend-mappingMaps frontendoneconnect.oneconnect.svc.cluster.local:5050
ServiceMappingakhq-mappingMaps akhq.kafka.svc.cluster.local:8080
Frontend EnvNEXT_PUBLIC_API_BASEAutomatically set to http://localhost:9000
 (no manual update)
LoadBalancers—No LoadBalancer services are created in this mode

Step 3.3 — (Optional) Use Custom Service IDs

Service IDs default to apigateway-oneconnect and frontend-oneconnect. Change them only if your Cloud Connector setup requires different names:

--set cloudConnector.serviceIdApigateway="my-apigateway" \ --set cloudConnector.serviceIdFrontend="my-frontend"

Step 3.4 — Retrieve ServiceMapping Endpoints

After installation, retrieve the tunnel endpoints. You will need these in Section 8 when configuring the Cloud Connector service channels.

# apigateway endpoint kubectl get servicemappings.connectivityproxy.sap.com apigateway-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}' # frontend endpoint kubectl get servicemappings.connectivityproxy.sap.com frontend-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}' # Result format: # tcp://cp.c-XXXXX.kyma.ondemand.com:443/[service-id] # Save both values — you will need them in Section 8.

4. Deploy Observability Stack

The Observability Stack provides monitoring, log aggregation, and distributed tracing for the OneConnect platform.

Idea
Note
Deploy this after the OneConnect platform (Section 3) is running. The platform's telemetry collector will push data to this stack automatically.

Step 4.1 — Install

cd helm/one_source-oneconnect-observability-*/ helm install oneconnect-observability . \ --namespace observability \ --create-namespace \ --values values-aws.yaml

Step 4.2 — Verify Pods

kubectl get pods -n observability

Step 4.3 — Access the Monitoring Dashboard (Local Port-Forward)

kubectl port-forward svc/grafana 3000:3000 -n observability # Open in your browser: http://localhost:3000

5. Enable Istio Sidecar Injection

The Cloud Connector tunnel uses Istio mTLS to authenticate traffic between services. Without the Istio sidecar running inside each pod, the Connectivity Proxy will reject all connections.

Think of the Istio sidecar as a security co-pilot alongside each pod — it handles encrypted routing automatically. After enabling it, each pod will show 2/2 READY (app container + Istio sidecar).

Step 5.1 — Activate the Istio Module in Kyma

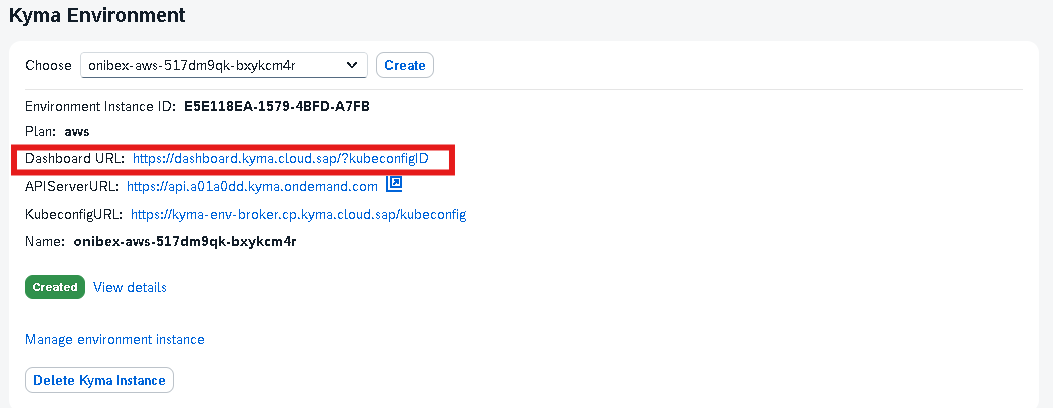

  • Log in to BTP Cockpit → navigate to your Subaccount → Kyma Environment → Dashboard URL.

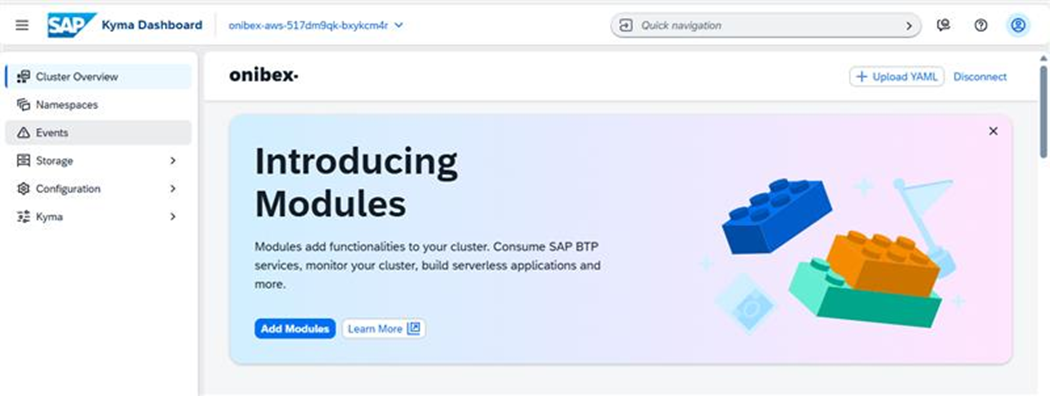

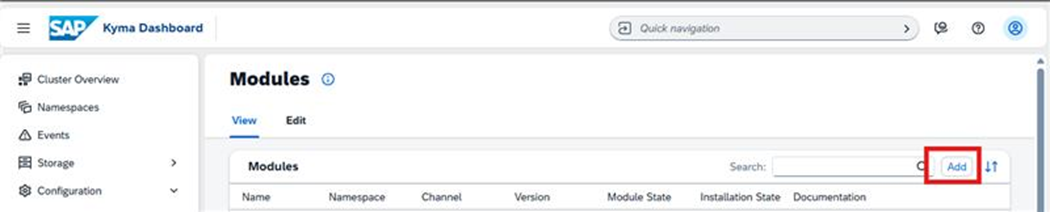

  • Go to Modules → Modify Modules → Add.
  • Select "istio" and click Add / Save.

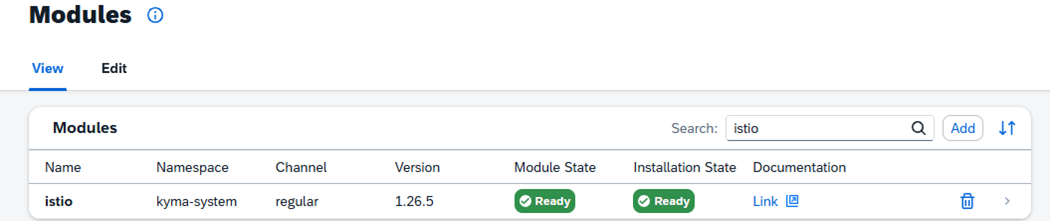

  • Wait until the module status shows Ready.





Activating the Istio module in Kyma Dashboard is a key step to enable sidecar injection and ensure mTLS authentication in the Cloud Connector. Each pod displays 2/2 READY once the application container and the security sidecar are running together.

Step 5.2 — Label the Namespaces for Sidecar Injection

Run for the oneconnect namespace:

Placeholder Description
Namespace Kubernetes namespace — oneconnect, kafka

kubectl label namespace oneconnect istio-injection=enabled kubectl rollout restart deployment -n oneconnect # Wait until all pods show 2/2 READY: kubectl get pods -n oneconnect

Idea
Tip
If pods still show 1/1 after the restart, verify the label was applied: kubectl get namespace oneconnect --show-labels | grep istio

6. Activate Kyma Modules

The Connectivity Proxy manages the secure tunnel from Cloud Connector to your cluster. The Transparent Proxy exposes BTP destinations as internal Kubernetes services. Both components depend on Istio (Step 5).

Step 6.1 — Activate All Five Required Modules

In Kyma Dashboard → Modules → Modify Modules → Add, add all five modules listed below:

Module Namespace Purpose
api-gateway—API gateway for Kyma services
btp-operatorkyma-systemSAP BTP service operator
connectivity-proxykyma-systemSecure tunnel between Cloud Connector and the cluster
istiokyma-systemService mesh and mTLS (activated in Step 5)
transparent-proxysap-transp-proxy-systemExposes BTP destinations as Kubernetes services

Idea
Important
All five modules must reach Ready status before you continue. If any module is missing, the Cloud Connector tunnel will not work.

Step 6.2 — Verify All Modules are Ready

# Transparent Proxy namespace must exist kubectl get ns sap-transp-proxy-system # Transparent Proxy pods must be Running kubectl -n sap-transp-proxy-system get deploy,pod # Connectivity Proxy must be Running kubectl get pods -n kyma-system | grep connectivity

7. Configure SAP Cloud Connector

The SAP Cloud Connector is an agent you install in your on-premise network. It opens a secure outbound tunnel to SAP BTP — no inbound firewall ports are required.

Traffic flow:

SAP ECC / S4HANA → http://[cc-server-host]:[local-port] → Cloud Connector (Service Channel) → Connectivity Proxy (kyma-system) → service.oneconnect.svc.cluster.local:[port]

Step 7.1 — Create the Connectivity Service Instance & Binding

The Connectivity Proxy needs BTP credentials. Run the command below to create them. Use kubectl — do NOT use the BTP Cockpit Service Marketplace for this step.

Placeholder Description
[NAMESPACE] Kubernetes namespace — use: oneconnect, kafka

kubectl apply -f - <<EOF apiVersion: services.cloud.sap.com/v1 kind: ServiceInstance metadata: name: connectivity-instance namespace: oneconnect spec: serviceOfferingName: connectivity servicePlanName: connectivity_proxy --- apiVersion: services.cloud.sap.com/v1 kind: ServiceBinding metadata: name: connectivity-binding namespace: oneconnect spec: serviceInstanceName: connectivity-instance EOF # Verify both reach Ready / Created status: kubectl get serviceinstances,servicebindings -n oneconnect

Step 7.2 — Retrieve ServiceMapping Endpoints

If you already ran Step 3.4, skip this. Otherwise retrieve the endpoints now:

kubectl get servicemappings.connectivityproxy.sap.com apigateway-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}' kubectl get servicemappings.connectivityproxy.sap.com frontend-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}'

kubectl get servicemappings.connectivityproxy.sap.com  akhq-mapping \   -n oneconnect -ojsonpath='{.status.endpoint}' # Result format: tcp://cp.c-XXXXX.kyma.ondemand.com:443/[service-id] # Save both values — needed in Step 7.5.

Step 7.3 — Install SAP Cloud Connector

  • Download the installer from: https://tools.hana.ondemand.com — search for "Cloud Connector" on the page (Ctrl+F). Download the Windows MSI installer. If the MSI fails, use the Portable version as a fallback.
  • Install on a server that has network access to your SAP on-premise system.
  • Open the admin UI at: https://localhost:8443
  • Log in with default credentials: Administrator / manage — change your password immediately.

Step 7.4 — Connect Cloud Connector to the BTP Subaccount

In the Cloud Connector admin UI, go to Subaccounts → + (Add) and fill in:

Field Value
RegionYour BTP subaccount region
SubaccountYour BTP Subaccount ID
Location IDMust exactly match the value used in Step 3.1
LoginYour BTP email address
PasswordYour BTP password

Placeholder Description
[your-btp-region]BTP subaccount region — e.g. cf-us10
[SUBACCOUNT-ID]SAP BTP Subaccount ID — found in BTP Cockpit → Subaccount overview
[LOCATION-ID]Must be the exact same value you used in Step 3.1 (case-sensitive)

Idea
Note
After saving, verify the status shows Connected in green before continuing.

Step 7.5 — Create Service Channels

Create one service channel per ServiceMapping. In the Cloud Connector admin UI, go to On-Premise to Cloud → + (Add).

Channel 1: apigateway

Placeholder Description
[apigateway-endpoint]The endpoint retrieved in Step 7.2 — remove the tcp:// prefix before pasting
[local-port]A free port on your CC server — e.g. 9000

Field Value
TypeK8s Cluster
Endpointapigateway endpoint from Step 7.2 — remove the tcp:// prefix
Local Port9000 (or another free port)
EnabledYes

Channel 2: frontend

Placeholder Description
[frontend-endpoint]The endpoint retrieved in Step 7.2 — remove the tcp:// prefix before pasting
[local-port]A different free port — e.g. 5050 (must differ from Channel 1)

Field Value
TypeK8s Cluster
Endpointfrontend endpoint from Step 7.2 — remove the tcp:// prefix
Local Port5050 (must be different from Channel 1)
EnabledYes

Channel 3: AKHQ (only if you completed Step 3.5)

Field Value
TypeK8s Cluster
EndpointAKHQ endpoint from Step 3.5 — remove the tcp:// prefix
Local Port8080 (must differ from Channels 1 and 2)
EnabledYes

Idea
Tip
After activating each channel, the status should show green with 1/1 connections. If it shows 0/1, see the Troubleshooting section.

Step 7.6 — Configure SAP Connection (SM59)

With the service channels active, create an HTTP destination in your SAP system:

Placeholder Description
[cc-server-host]IP address or hostname of the Cloud Connector server
[local-port]The local port you set in the service channel (e.g. 9000)

Field Value
Connection TypeHTTP Connection to External Server (type G)
Host[cc-server-host]
Port[local-port]
ProtocolHTTP
Path Prefix/your-endpoint-path

Step 7.7 — Test the Tunnel

Before going live, test connectivity from the Cloud Connector server. The Host header is required for the Connectivity Proxy to route requests correctly.

Placeholder Description
[local-port]The local port of the apigateway service channel (e.g. 9000)
[local-port-frontend]The local port of the frontend service channel (e.g. 5050)
[local-port-akhq]The local port of the AKHQ service channel (e.g. 8080)

# Test apigateway tunnel curl -vvv http://localhost:[local-port]/ \ -H "Host: apigateway.oneconnect.svc.cluster.local" # Test frontend tunnel curl -vvv http://localhost:[local-port-frontend]/ \ -H "Host: frontendoneconnect.oneconnect.svc.cluster.local" # Test AKHQ tunnel (if configured) curl -vvv http://localhost:[local-port-akhq]/ \ -H "Host: akhq.kafka.svc.cluster.local" # Any HTTP response (including 404 or 302) = tunnel is working. # "Empty reply from server" = tunnel is NOT working. See Troubleshooting.

✓ Verification & Health Checks

Use the commands below to confirm every component is running correctly.

Platform Pods

kubectl get pods -n oneconnect # All pods must show 2/2 READY (app + Istio sidecar)

Services

kubectl get services -n oneconnect # You should see only ClusterIP services — no LoadBalancer entries

Kafka

kubectl get kafka,deployment -n kafka # READY must be True for both resources kubectl get pods -n kafka # 3 pool nodes + entity-operator must all be Running

ServiceMappings

kubectl get servicemappings.connectivityproxy.sap.com -n oneconnect

AKHQ Kafka UI

kubectl get pods,svc -n kafka | grep akhq # akhq shows type=ClusterIP — access is through Cloud Connector only # Local access via port-forward: kubectl port-forward svc/akhq 8080:8080 -n kafka # Open: http://localhost:8080 (default login: admin / admin123)

Istio Sidecar

kubectl get namespace oneconnect --show-labels | grep istio kubectl get pods -n oneconnect # All pods must show 2/2 READY

Observability Stack

kubectl get pods -n observability

Troubleshooting

"Empty reply from server" when testing the tunnel

  • Verify Istio sidecar is injected — all pods must show 2/2 READY.
  • Restart the Connectivity Proxy:
kubectl rollout restart statefulset connectivity-proxy -n kyma-system

  • Check proxy logs:
kubectl logs -n kyma-system -l app=connectivity-proxy --tail=50

ACCESS_DENIED in Connectivity Proxy logs

  • Confirm the istio-injection=enabled label is set on the namespace.
  • Verify the Location ID matches exactly between Cloud Connector and your Helm install (case-sensitive).
  • Restart deployments:
kubectl rollout restart deployment -n oneconnect

Cloud Connector cannot connect to the BTP Subaccount

  • Verify the BTP region exactly matches your subaccount region.
  • Check your BTP credentials (email and password).
  • Confirm the CC server has outbound internet access to *.ondemand.com.

Service Channel shows 0/1 connections

  • Verify the endpoint was copied without the tcp:// prefix.
  • Verify the CC is connected to the correct subaccount.
  • Re-retrieve the endpoint:
kubectl get servicemappings.connectivityproxy.sap.com apigateway-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}'

Kafka pods not starting

  • Ensure the Strimzi operator shows 1/1 Running before applying Kafka resources (Step 1).
  • Check operator logs:
kubectl logs -n kafka -l strimzi.io/kind=cluster-operator --tail=100

Cloud Connector services are timing out / not resolving

Istio is preventing all traffic that is not configured as mTLS. Apply a PERMISSIVE mode policy:

kubectl apply -f - <<EOF apiVersion: security.istio.io/v1beta1 kind: PeerAuthentication metadata: name: default namespace: istio-system spec: mtls: mode: PERMISSIVE EOF

Helm install fails — missing cloudConnector values

Re-run with all required flags:

helm upgrade oneconnect . \ --namespace oneconnect \ --values values-aws.yaml \ --set dockerHub.token=[your-docker-token] \ --set cloudConnector.enabled=true \ --set cloudConnector.locationId="[LOCATION-ID]" \ --set cloudConnector.subaccountId="[SUBACCOUNT-ID]"

Quick Reference — Useful Commands

Platform Pods & Services

kubectl get pods -n oneconnect kubectl get services -n oneconnect

Connectivity Proxy

kubectl get pods -n kyma-system | grep connectivity kubectl logs -n kyma-system -l app=connectivity-proxy --tail=50 kubectl rollout restart statefulset connectivity-proxy -n kyma-system

ServiceMappings

kubectl get servicemappings.connectivityproxy.sap.com -n oneconnect kubectl get servicemappings.connectivityproxy.sap.com apigateway-mapping \ -n oneconnect -ojsonpath='{.status.endpoint}'

Service Instances

kubectl get serviceinstances,servicebindings -n oneconnect

Kafka Connection

kafka-cluster-kafka-bootstrap.kafka.svc.cluster.local:9092 http://schema-registry.kafka.svc.cluster.local:8081

Observability

kubectl get pods -n observability kubectl port-forward svc/grafana 3000:3000 -n observability

Key Concepts & Glossary

Term What it means
Kubernetes (K8s)System for running and managing containerized applications — the orchestrator for your app containers.
KymaSAP-managed Kubernetes environment running in SAP BTP (Business Technology Platform).
NamespaceA logical partition inside Kubernetes — like a separate workspace. e.g. kafka, oneconnect, observability.
StrimziA Kubernetes operator that makes it easy to deploy and manage Apache Kafka clusters.
KafkaA distributed messaging system that enables data streaming between services.
HelmA package manager for Kubernetes. Installs a full app with one command instead of many YAML files.
PodA running container inside Kubernetes. Like a lightweight virtual machine.
SAP Cloud ConnectorA secure tunnel agent installed in your on-premise network. Bridges local SAP systems to SAP BTP without opening inbound firewall ports.
IstioA service mesh that adds encrypted traffic control between pods. Required for Cloud Connector access.
ServiceMappingA Kyma resource that links a Kubernetes service to the Cloud Connector tunnel.
ObservabilityA monitoring stack providing dashboards, logs, and distributed tracing.
Docker HubContainer image registry. An "app store" for Docker images. Requires an access token.
AKHQA web-based dashboard for Kafka — browse topics, inspect messages, monitor consumers.
Kafka ConnectA Kafka component that runs connectors to external systems such as databases.

Frequently Asked Questions

What if pods do not start?
Always verify that Strimzi is running (1/1) before installing Kafka. For other pods, check logs with kubectl logs [pod-name] -n [NAMESPACE]. Common causes: Docker token is wrong or expired, or a previous Helm release was not properly uninstalled.

Why am I getting ACCESS_DENIED?
The Istio sidecar is either not injected or the Location ID does not match between your Helm install and the Cloud Connector configuration. Check that the namespace has the istio-injection=enabled label and that the Location ID is identical in both places (case-sensitive).

How do I know the tunnel is working?
Run a curl command from the CC server to the local port with the appropriate Host header. Any HTTP response — even a 404 or 302 — confirms the tunnel is active. "Empty reply from server" means the tunnel is not working.

Is the Observability stack mandatory?
It is optional from a technical standpoint, but highly recommended for production deployments. It consumes additional cluster resources, so confirm with the customer whether to include it.

Where do I find the Subaccount ID?
Log in to the SAP BTP Cockpit and navigate to your Subaccount overview page. The Subaccount ID (a UUID) is displayed in the header area of the subaccount page.

How do I test if the tunnel is working end to end?
Run the curl test in Step 7.7 from the CC server. Any HTTP response (even 404) confirms the tunnel is active. Then create the SM59 destination in SAP and call a known OneConnect endpoint to confirm application-level connectivity.

    • Related Articles

    • OneConnect - Docker Deployment Guide

      OneConnect – Docker Deployment Guide This article explains how to deploy OneConnect using Docker on a Linux virtual machine. 1) Prerequisites Before starting the deployment, make sure you meet the following requirements: Download the compressed files ...

    • Azure - OneConnect Deployment and Configuration

      One Connect Platform: Kubernetes Azure Deployment Manual for Private Network This manual outlines the steps required to deploy the One Connect system on a Kubernetes cluster within a Private Network (meaning the OneConnect Platform will not be ...

    • How to Provision SAP BTP Services: AI Core · AI Launchpad · HANA · Kyma

      How to Provision SAP BTP Services: AI Core · AI Launchpad · HANA · Kyma This guide provides step-by-step instructions for provisioning the following SAP Business Technology Platform (SAP BTP) services: SAP AI Core – The runtime environment for AI ...

    • Azure - One Connect Deployment Prerequisites

      Before you Begin: The following deployment manuals assumes a basic understanding of Kubernetes concepts. For more information, refer to Kubernetes core concepts for Azure Kubernetes Service (AKS). Before you begin: If you don't have an Azure account, ...

    • One Connect Platform - Functionalities

      Introduction The table below outlines key features of the OneConnect platform, showcasing out of the box functionalities that support user management, system monitoring, SAP connectivity, and real-time data operations. No Function Description 1 ...
