PFCT Transaction– Create and Configure Workflow Events

PFCT Transaction– Create and Configure Workflow Events

PFCT – Create and Configure Workflow Events

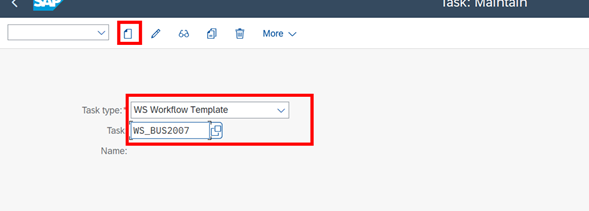

Execute transaction PFCT
  1. At Task Type select “WS Workflow Template”
  2. At Task assign a name for the task
  3. Click over create

Example: We’ll create a task to launch BUS2007 (Maintenance Orders)

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

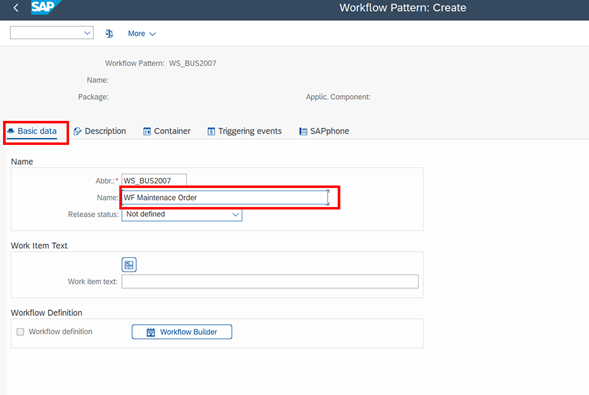

Go to the BASIC DATA tab

a)     Type a name

Example: “WF Maintenance Order”

Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.

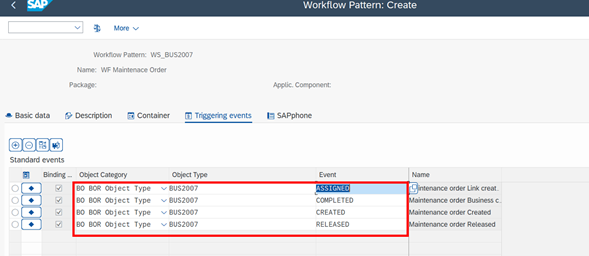

Go to the Triggering Events tab (add events)

  • At Object Category, set “BO”
  • At Object Type, enter the BUS that we need to process
  • At Event (using the match code), add all the processes we need

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

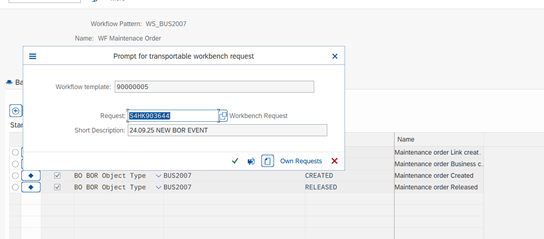

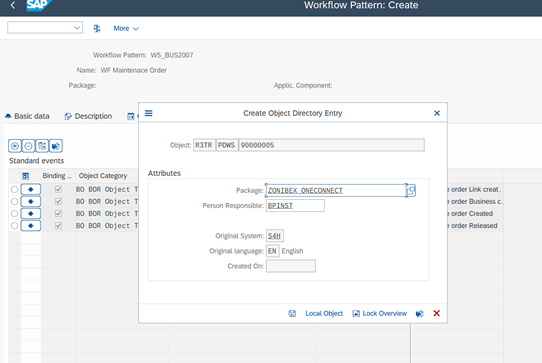

When you finish, the system will ask for a transport:
Select the package ZONIBEX_ONECONNECT and create a new transport order.
Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.

Now we need to create the links:

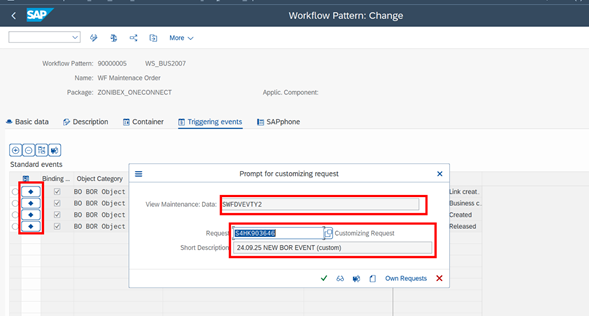

a) Click the blue diamond icon for each line; the system will ask for a new transport (customizing).
Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

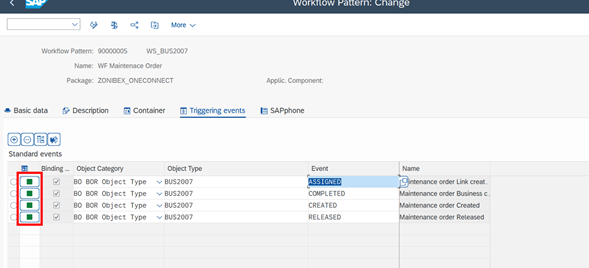

The blue diamonds change to green squares.

Tabla

El contenido generado por IA puede ser incorrecto.

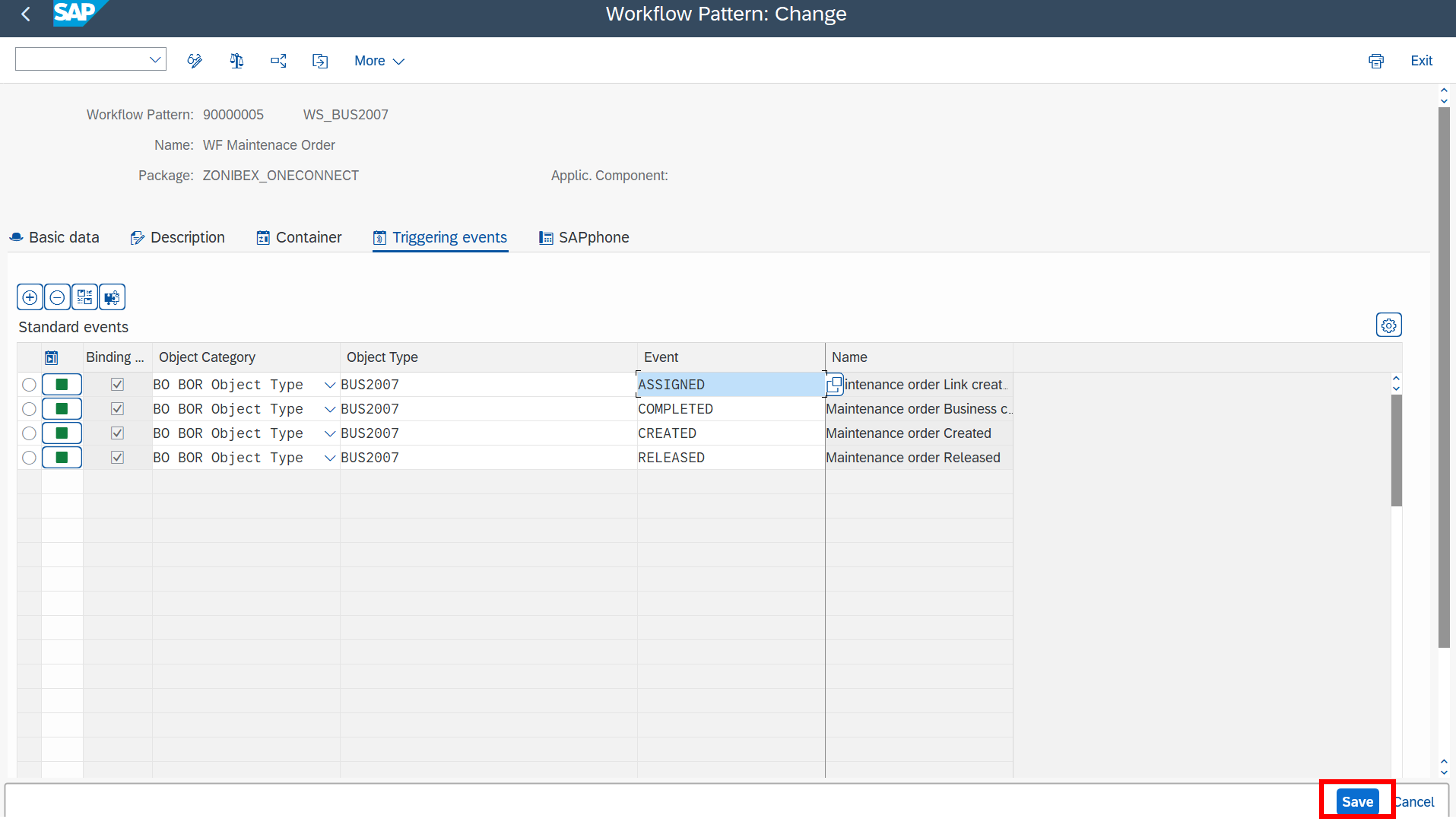

Now save and exit from PFTC.

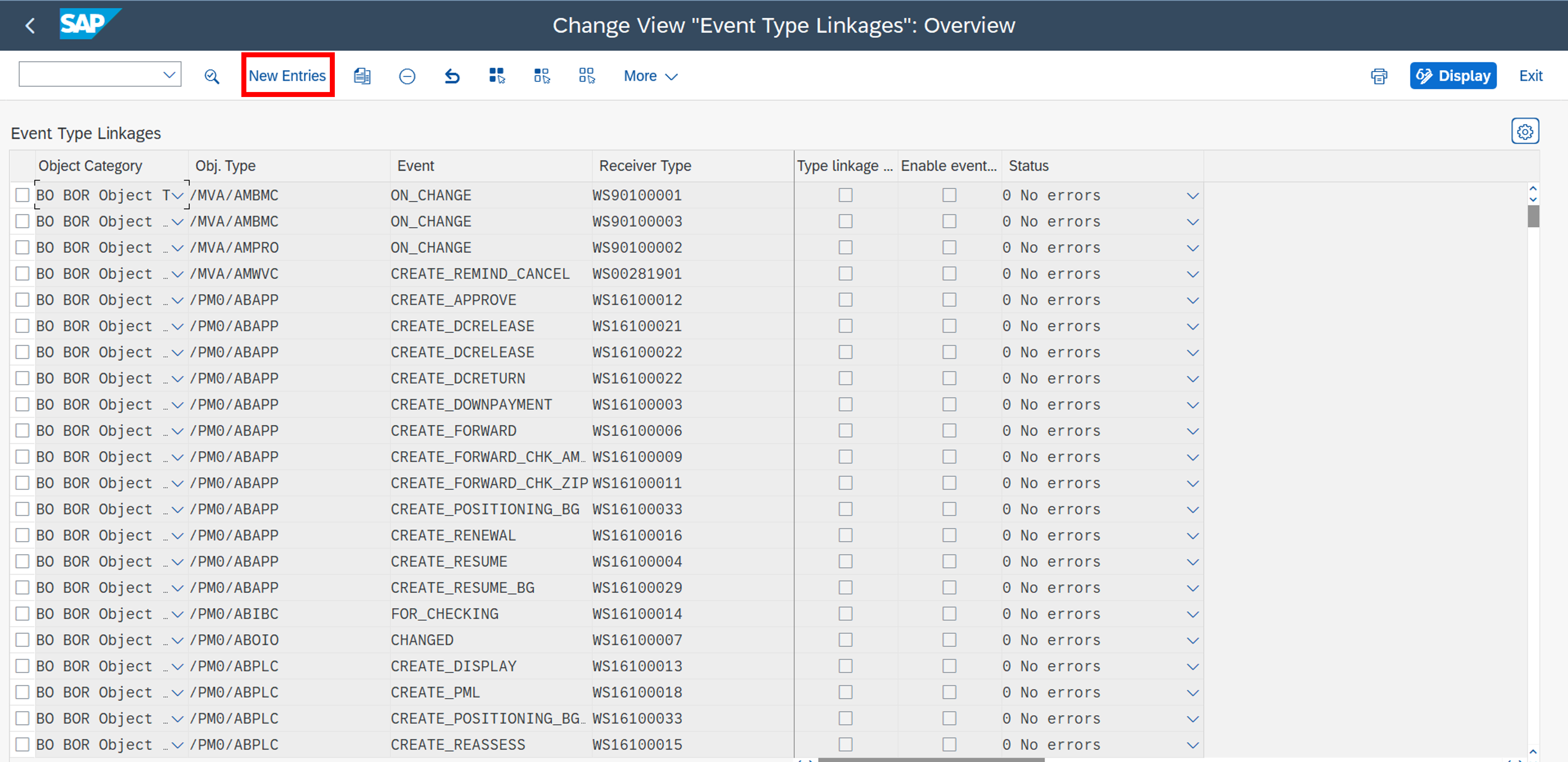

The next step is to create the links in transaction SWE2 or SWETYPV (both are the same program):
a) Add a new entry to create our event

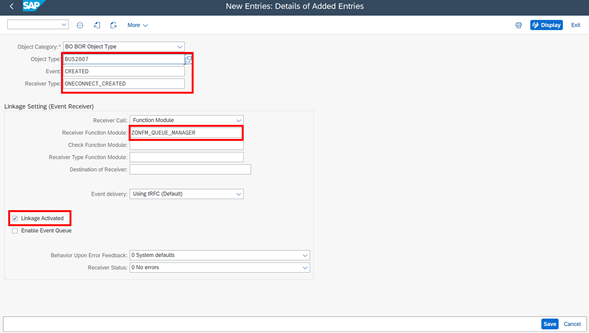

We need to fill in the following fields to create the new event:
a) Object Type: This is the process ID, in this case BUS2007
b) Event: Select from the match code list the event you want to configure. In this case, select “CREATED”
c) Receiver Type: A custom text to identify the process. For OneConnect, we set “ONECONNECT_CREATED”
d) Receiver Function Module: Select the function module to be executed. For OneConnect, it is always ZONFM_QUEUE_MANAGER
e) Linkage Activated Checkbox: Turn ON this checkbox
f) Save and exit

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.
