SAP EWM Module - How to create custom PPF Action

SAP EWM Module - How to create custom PPF Action



Post Processing Framework functionality is a flexible tool that generates and executes follow-up actions based on predefined conditions, such as printing labels, sending email notifications, or creating warehouse tasks after a warehouse document is completed or confirmed.

In this document we will describe how to create a custom PPF action.



Go to the TCODE
SPPFCADM - PPF: Administration

 Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.

Select the corresponding application, it will depend on the type of document from which the action needs to be created.
Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

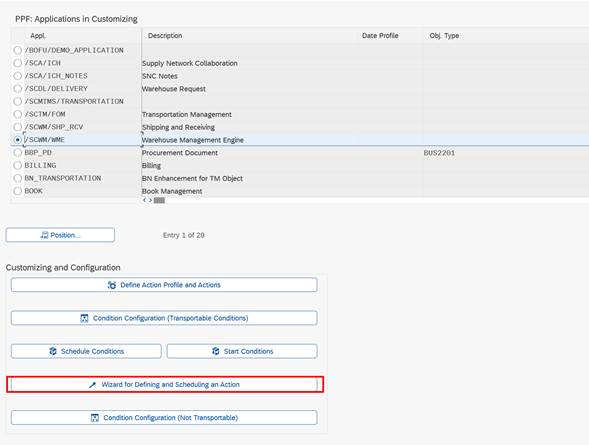

Click on “Wizard for Defining and Scheduling an Action” button.

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

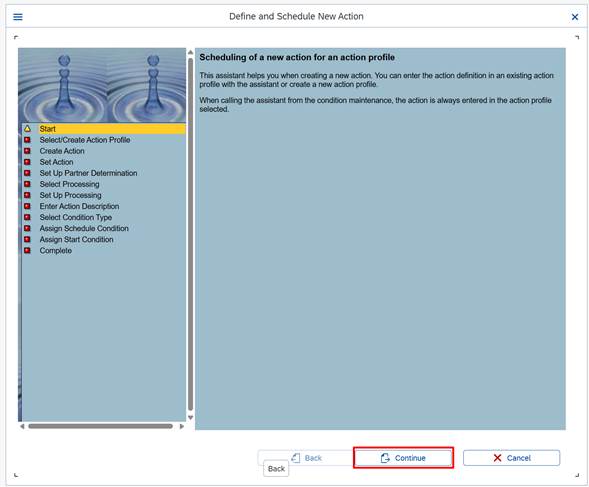

Click on continue.

Interfaz de usuario gráfica, Texto

El contenido generado por IA puede ser incorrecto.

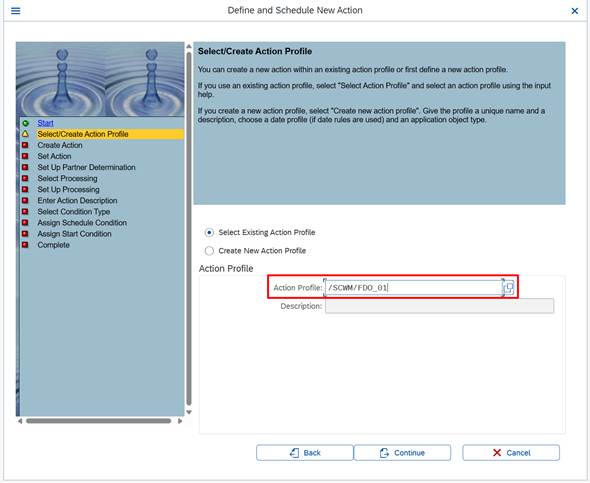

Input the action profile where is going to assign the new action. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

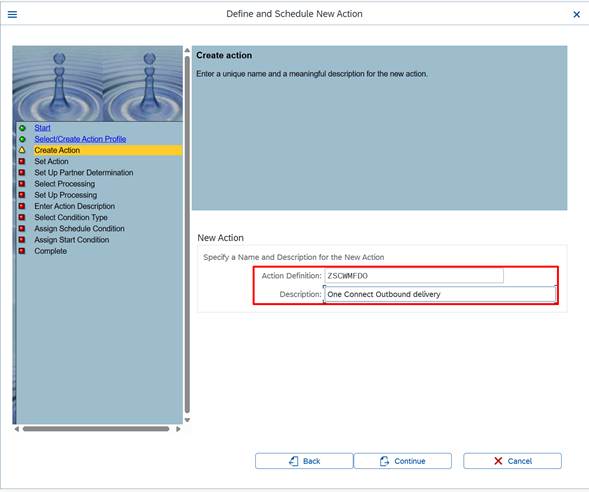

Input the new Action Defintion and description. Then click on continue.
Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

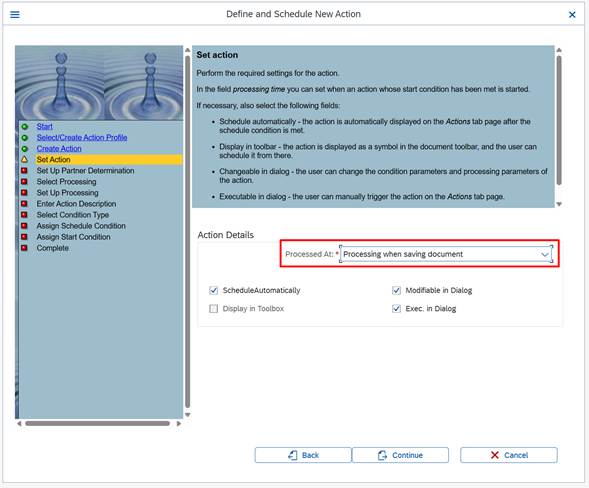

Choose when it is required to process the action. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

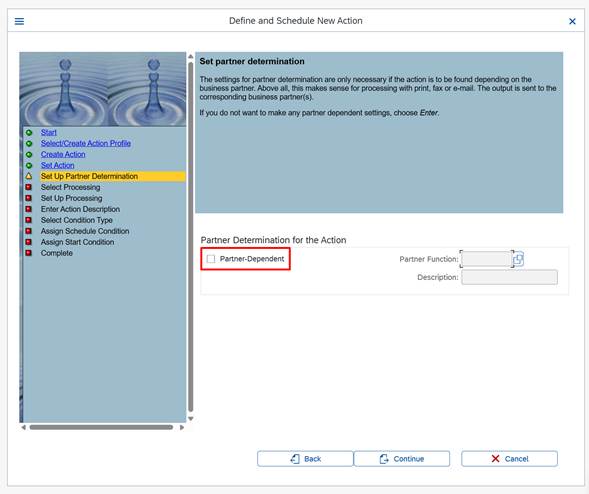

Unmark option Parner-Dependent. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

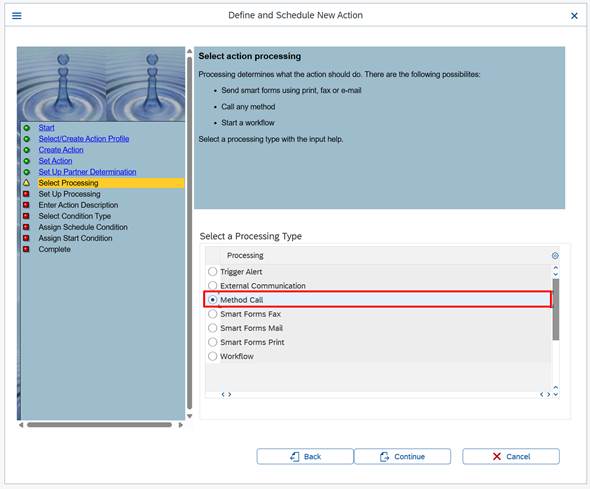

Choose the processing type required for the action. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

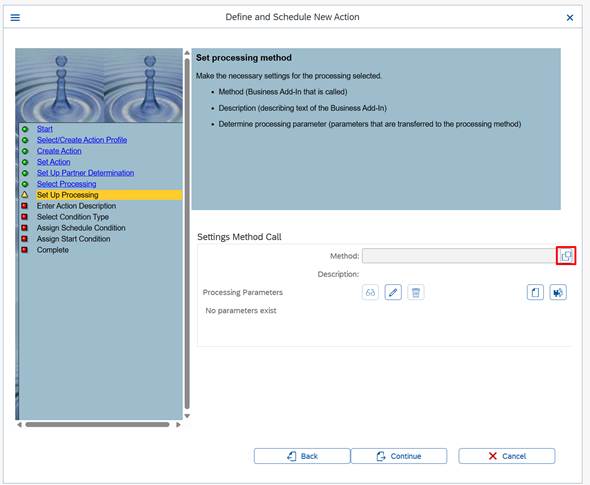

Previously you have to create the custom method, click on match code .

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

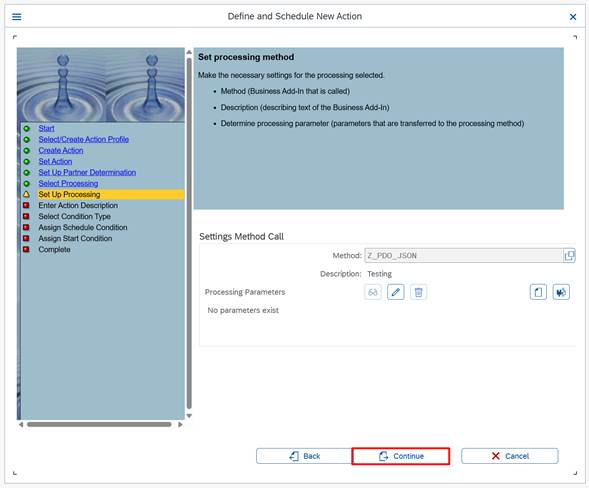

Select the corresponding method.


Click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

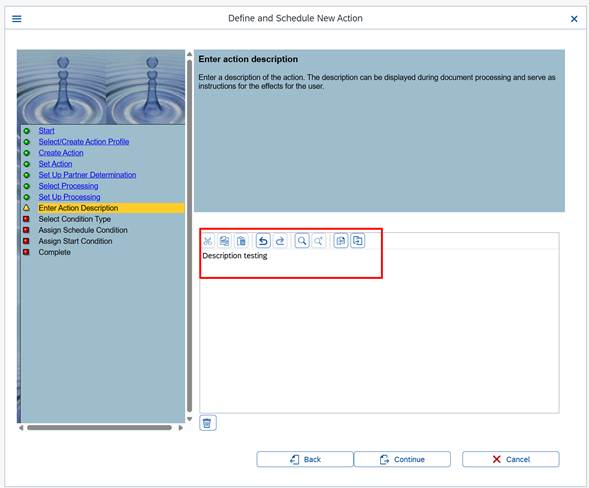

Input the description of your action. Then click on continue.

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

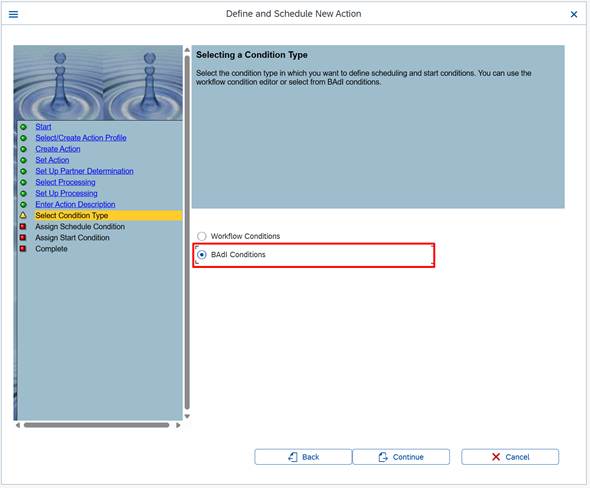

Select your corresponding condition type. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

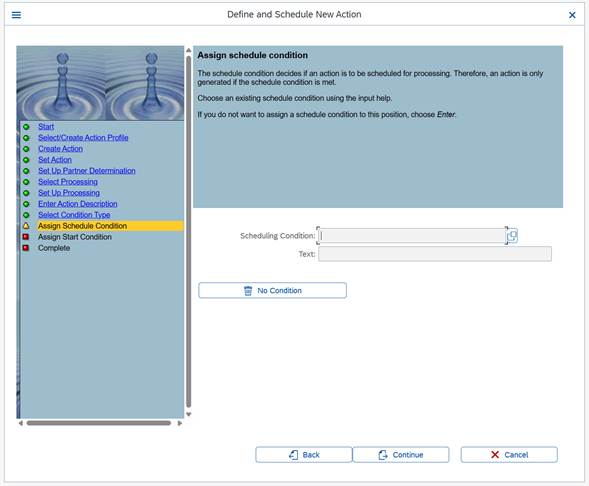

Choose your scheduling condition if required. Then click on continue.

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

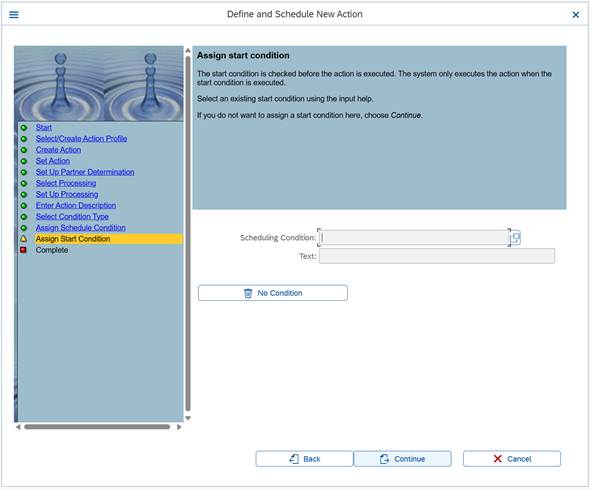

Select the start condition if required. Then click on continue.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

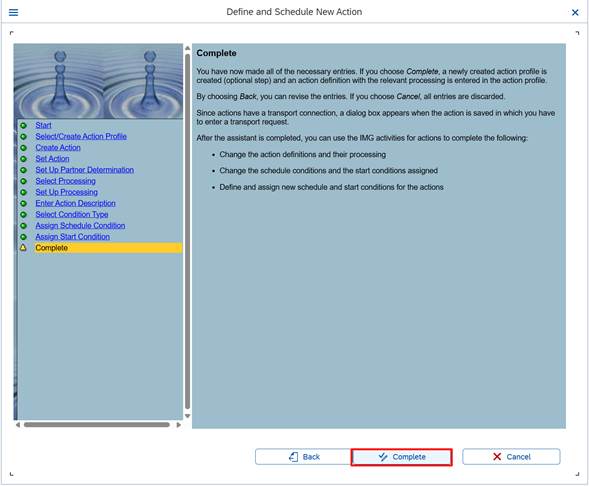

To finalize, click on complete.

Interfaz de usuario gráfica, Texto, Aplicación

El contenido generado por IA puede ser incorrecto.

Select your Customizing Request and click on check mark.


Technical Adjustments needed

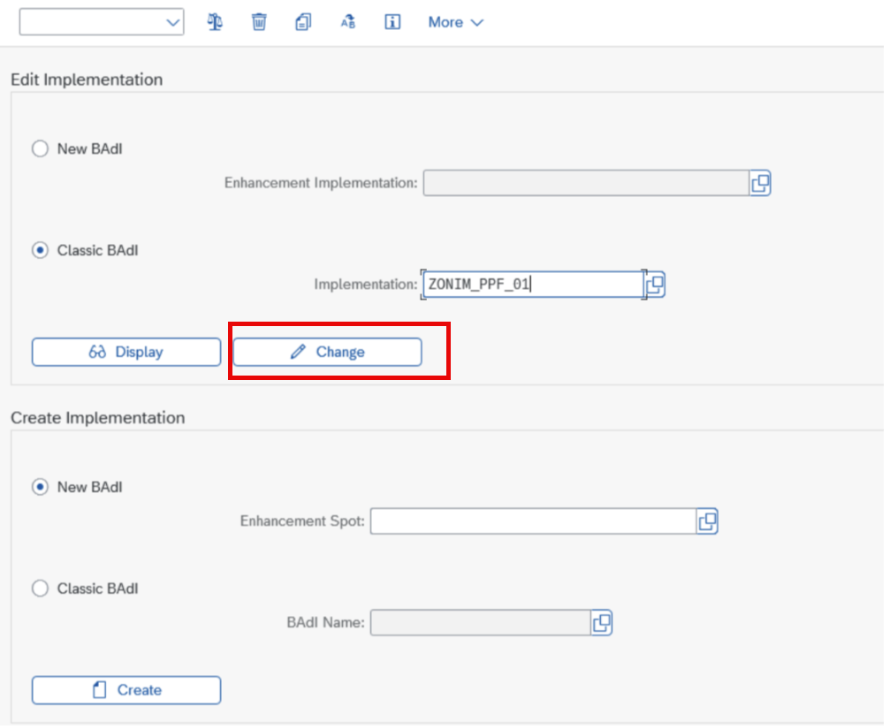

Go to transaction SE19, choose Classic Badi and Implementation: “ZONIM_PPF_01”, then click Change.

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

Make sure the Implementation is inactive, so the system will allow you to make changes. To do that, click on inactive button.



Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.



Go to Properties tab and then look for Filter values.

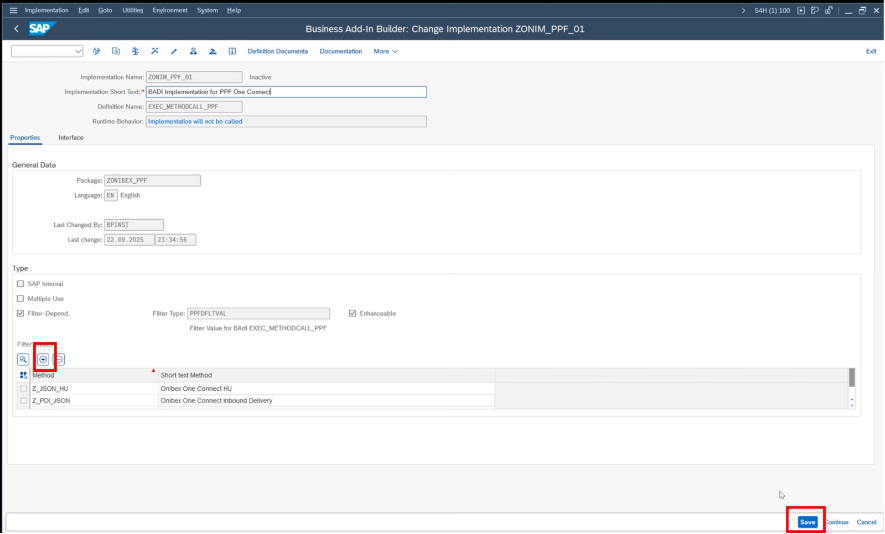

Add a new row and input your filter name (you can create your own filter, use a descriptive nomenclature). Then, click on Save button.

Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.

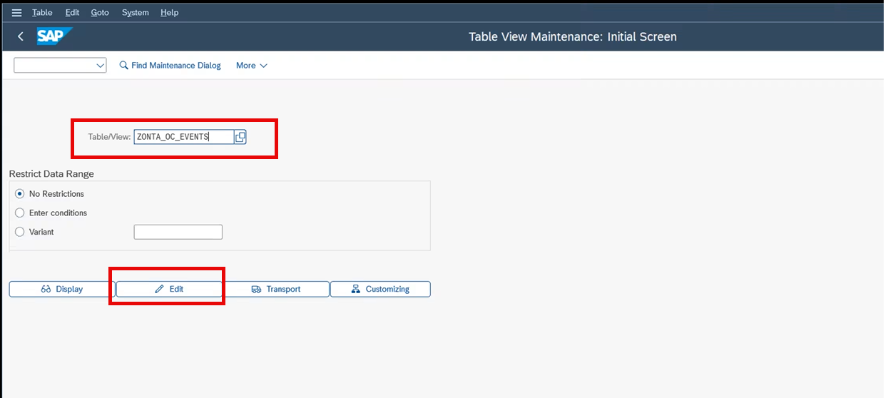

Go to SM30 transaction and input ZONTA_OC_EVENTS table. Then, click on Edit button.

Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

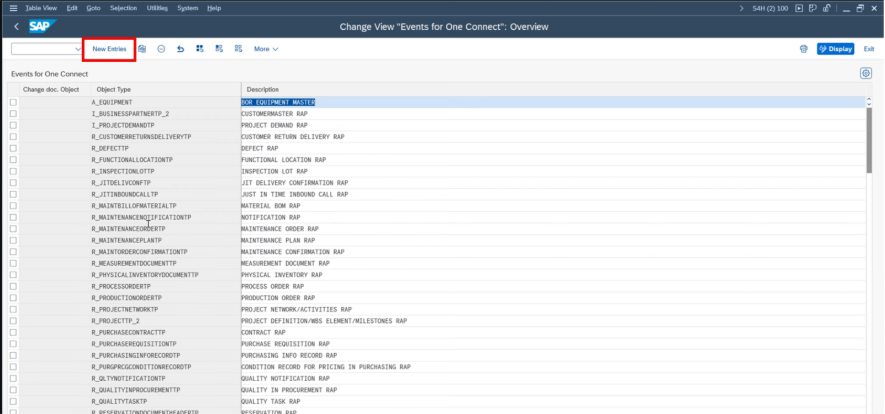

Click on New Entries button.

Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.



Enter following values:

Change Doc Object = Take from the entity definition (excel of EWM entities), take column “Action Definition”.

Object Type = Take corresponding value you created in previous step (Filter for BADI).

Description = Input a description for the combination



Interfaz de usuario gráfica, Aplicación

El contenido generado por IA puede ser incorrecto.

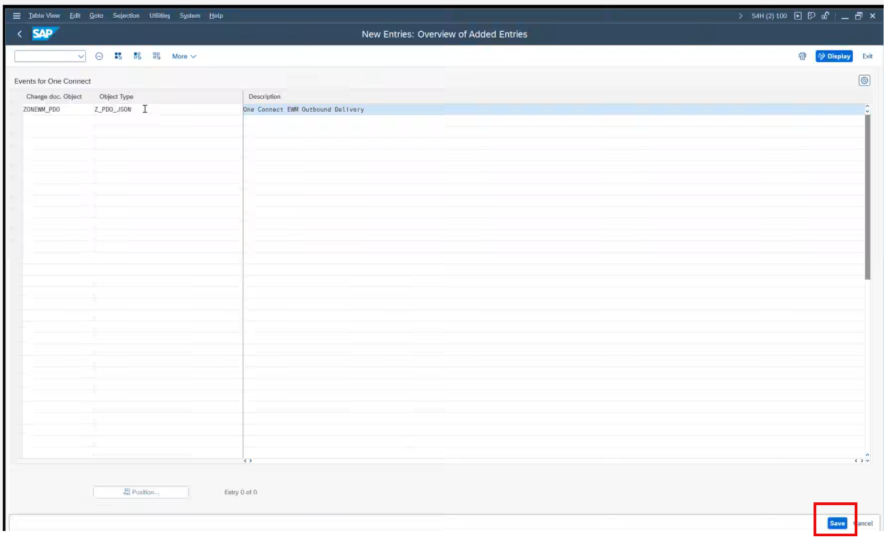

Once you are done with new entries, click on Save button, if a transport is requested, you can select/create a new one.

Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.

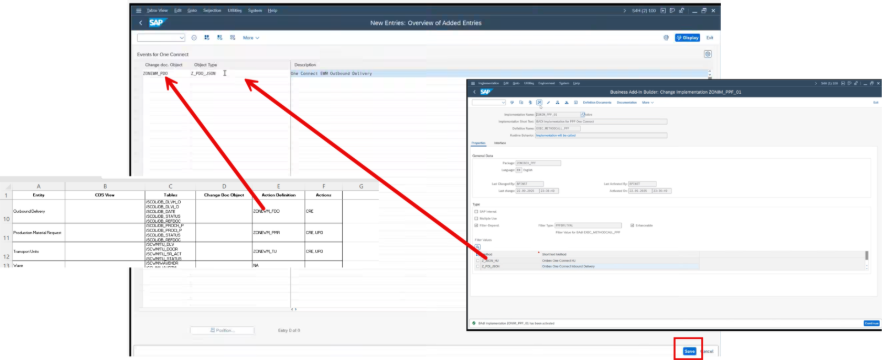

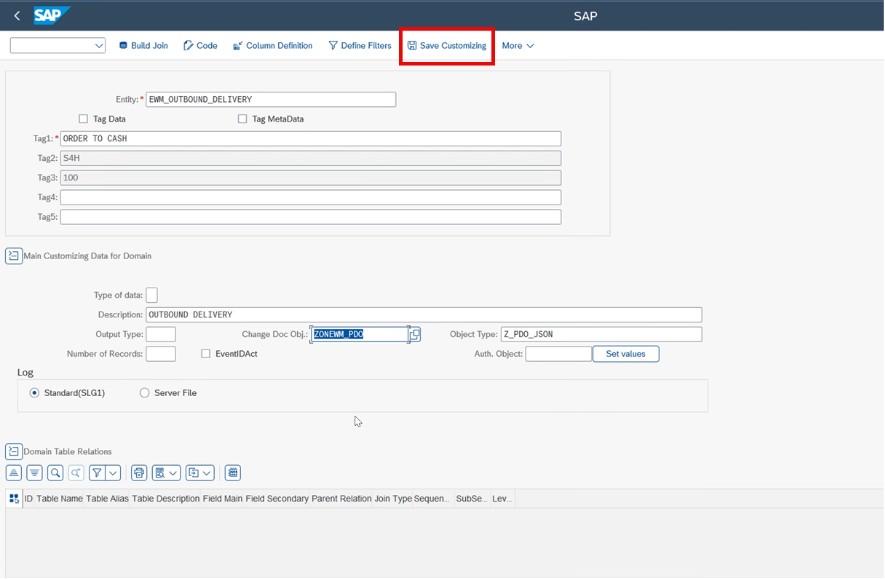

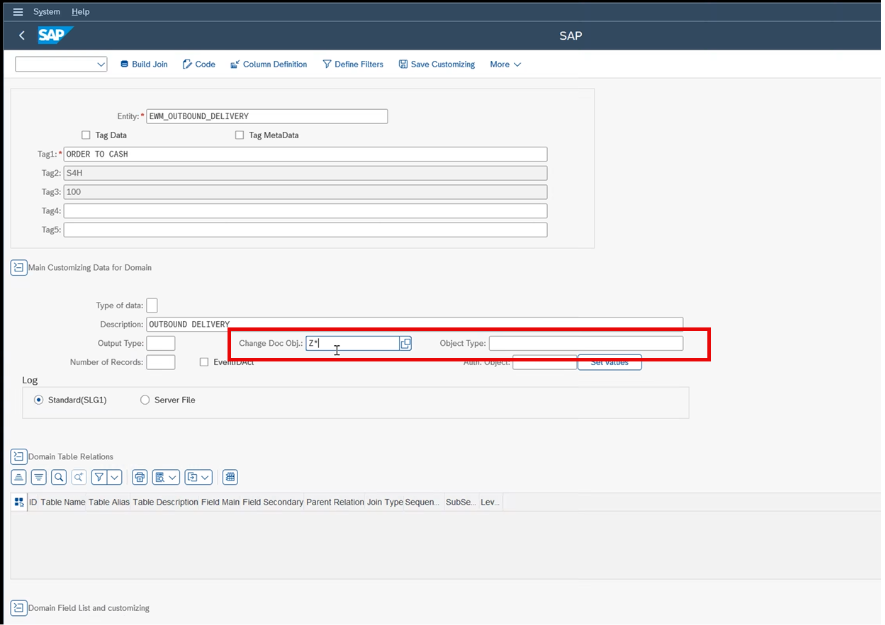

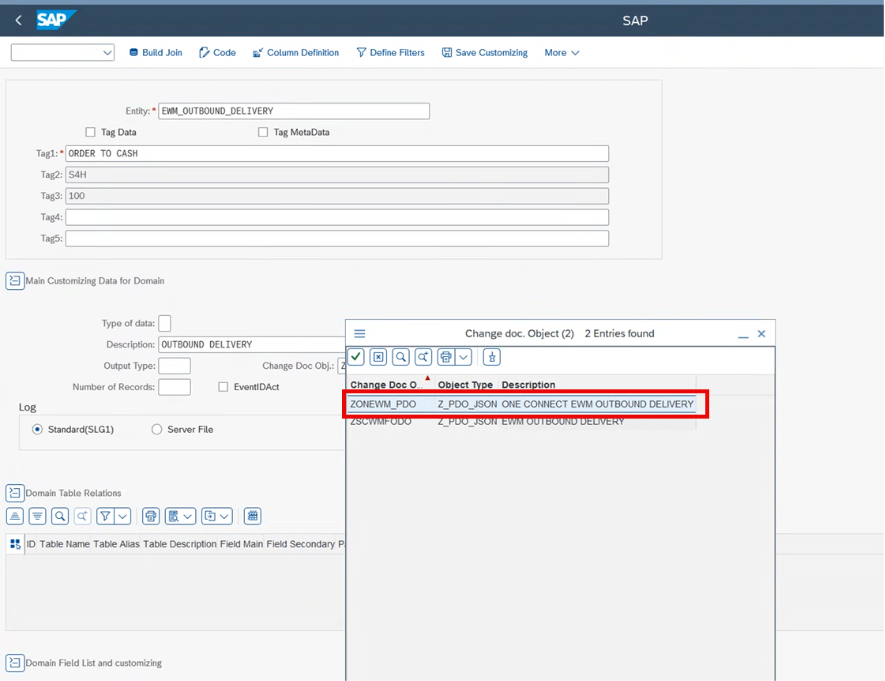

Final step, go to ZONT_ONECM transaction and modify required Entity.  On Change doc object, search for the entries you saved on ZONTA_OC_EVENTS table.



Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.



Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.





Click Save Customizing button to save your entries.

After this step, the system will know which entity belongs to an specific PPF action.



Interfaz de usuario gráfica, Texto, Aplicación, Correo electrónico

El contenido generado por IA puede ser incorrecto.
