SmartGateway Helm Chart — Quick Deployment Guide (Multi-Cloud)

This Helm Chart deploys SmartGateway on Kubernetes (microservices + MySQL + required configuration).


Multi-Cloud Support

Optimized for:

  1. AKS (Azure).

Before you start (requirements)

You need:

  • Compressed folder: SmartGatewayHelmChart.zip
  • Kubernetes 1.19+
  • Helm 3.0+
  • Cluster access (kubectl configured)
  • Docker Hub token (Docker Hub Token will be provided by the Onibex Team)
  • PersistentVolume provisioner (MySQL and DataSyncHub)
  • Cloud-specific controllers/CSI drivers (LoadBalancer + Storage)


Verify tooling:

  • kubectl version --client
  • helm version
  • kubectl get nodes


1) AKS (Azure)

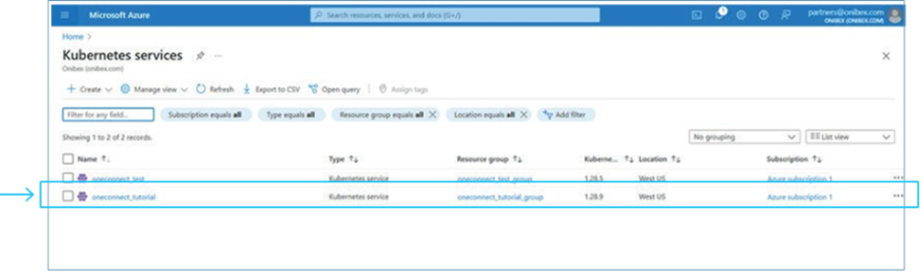

Select your cluster.

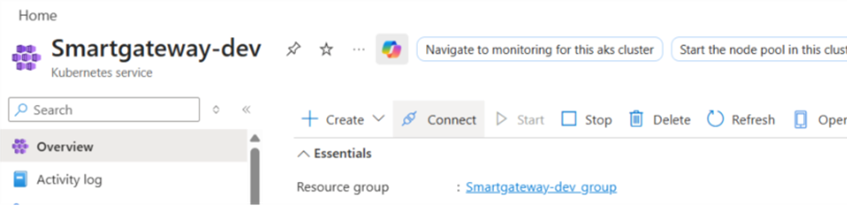

Run the deployment by clicking the "Connect" button.

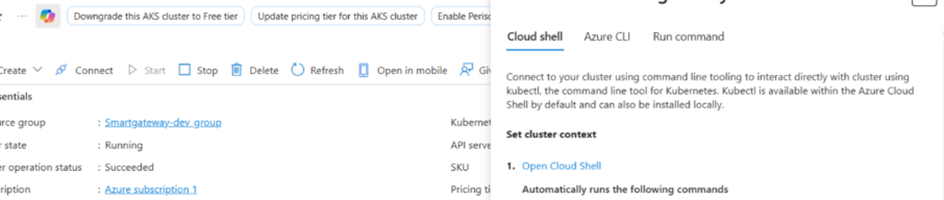

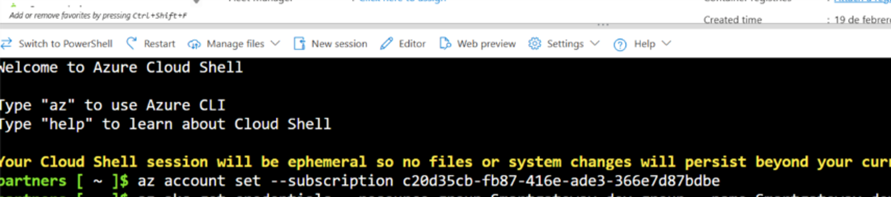

Next, click on "Open Cloud Shell"


Select the option "Manage files"



Upload the ZIP folder


Run the following command to extract the ZIP file

unzip SmartGatewayHelmChart.zip


cd helm-deployment   # folder where Chart.yaml exists


2) Install (choose your cloud)

Note: datasynchub namespace is created automatically.

Then, execute this command

helm install oneconnect . \
  --namespace oneconnect \
  --create-namespace \
  --values values-azure.yaml \
  --set dockerHub.token=YOUR_TOKEN

Note: Don't forget to insert your token in the command

First, verify that the pods are healthy; To verify this, execute the following command

# List all pods in the oneconnect namespace

kubectl get pods -n oneconnect



# For additional details (including restart count and current status)

kubectl get pods -n oneconnect -w

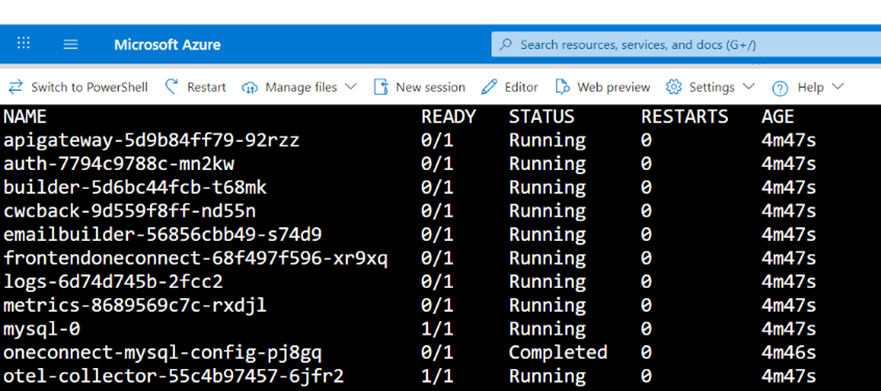

You should see something like this:

Verify the services and get the external IP:

# View all services

kubectl get svc -n oneconnect

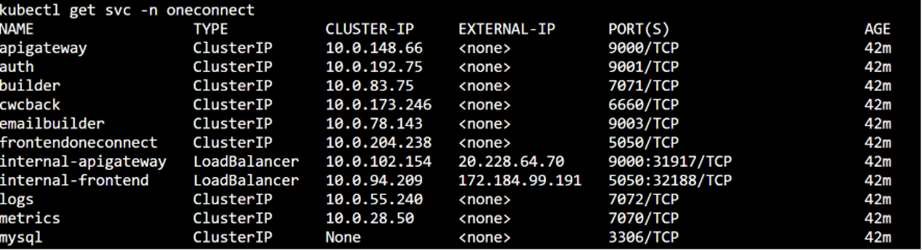

Look specifically for the internal-frontend service. You should see something like:

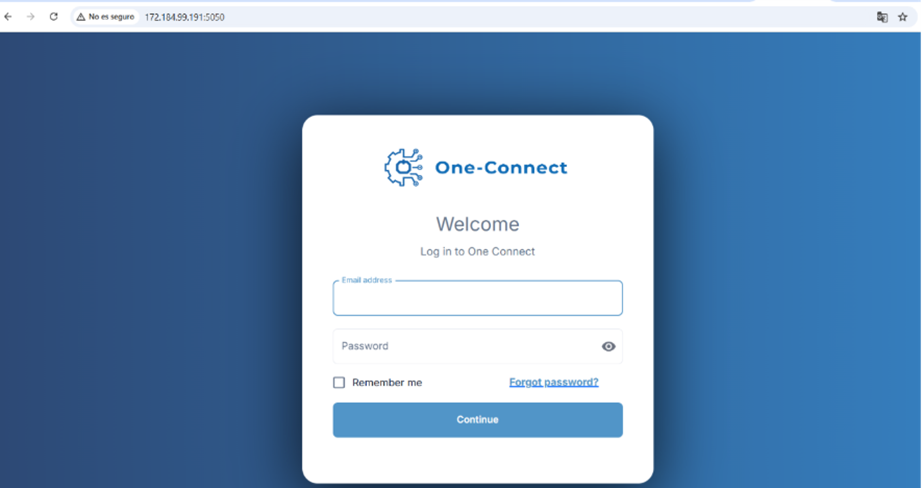

Access the platform: Once you have the EXTERNAL-IP, open it in your browser:

For example, if the IP is 172.184.99.191:



NOTE: These same steps are valid for the multicloud support functionality in EKS (AWS) or GKE (GCP)
