Technical Guide: IDoc Outbound Configuration via ONECONNECT

1. Output Message Configuration (Transaction: NACE)

The following steps define how to configure the system to trigger an output message for specific business documents (e.g., Sales Orders).

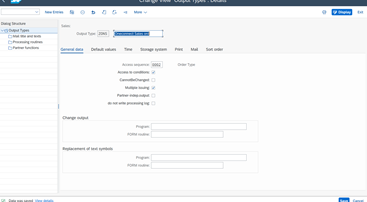

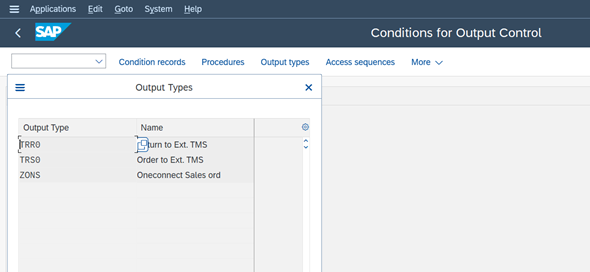

1.1 Create a New Output Type

• Access transaction NACE.
• Select Application V1 (Sales) and click on Output Types.
• Create a new entry for the IDoc output.
• Reference:

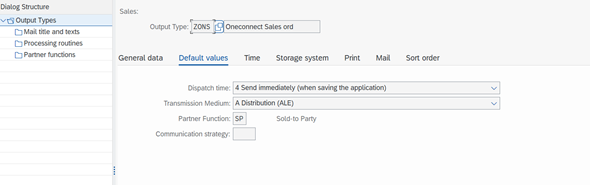

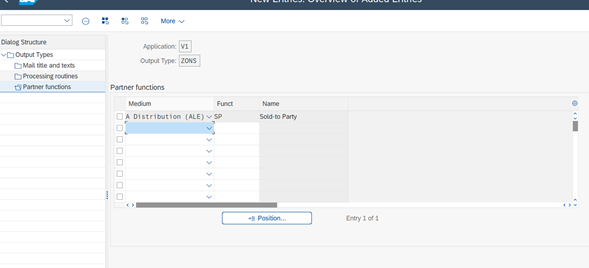

1.2 Define Partner Functions

• Assign the default partner functions to the new output type. This ensures the system identifies the correct partner role (e.g., SP - Sold-to Party) to receive the message.
• Reference:

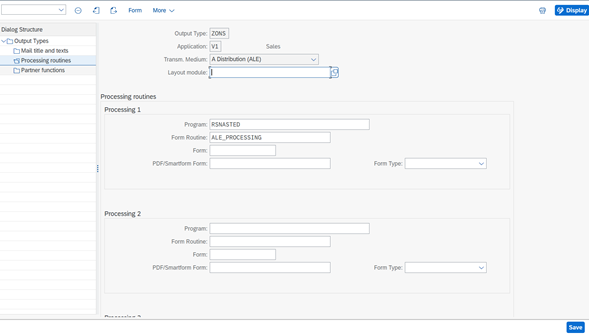

1.3 Maintain Processing Routines

• Assign the transmission medium (typically 6 - EDI) and the required processing program.
• Reference:

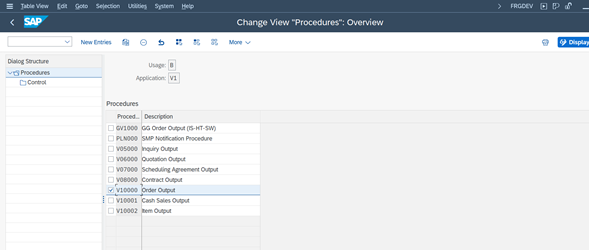

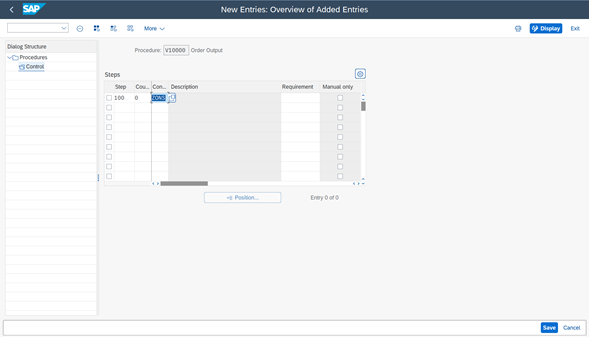

1.4 Assign Output Type to Procedures

• Add the newly created Output Type to the relevant Determination Procedure (e.g., V10000).
• Reference:




1.5 Create Condition Records

• Maintain condition records to automate output generation based on criteria such as Document Type .
• Note:
  After completing these steps, the system will automatically propose the new output message whenever a sales order is created or modified.
• Reference:






---

2. EDI-ALE Environment Setup

Technical configuration of the communication layer between SAP and the ONECONNECT platform.

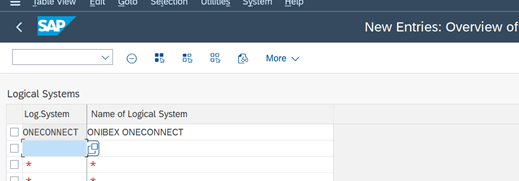

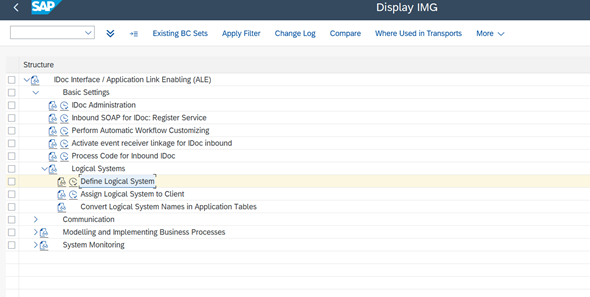

2.1 Define Logical System (Transaction: SALE)

• Access transaction SALE and define the new Logical System (LS) that represents the destination platform.
• Reference:

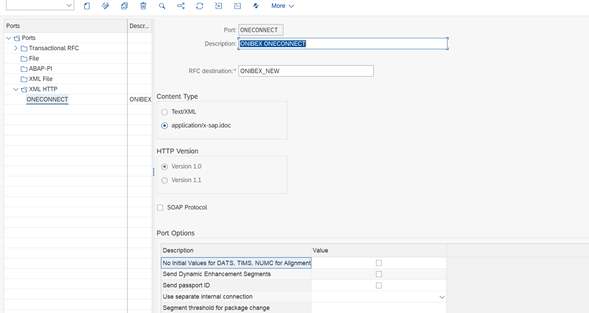

2.2 Configure EDI Port (Transaction: WE21)

• Create a new Transactional RFC Port and associate it with the corresponding RFC destination (SM59). It must be a specific port to receive the IDoc.



• Reference:

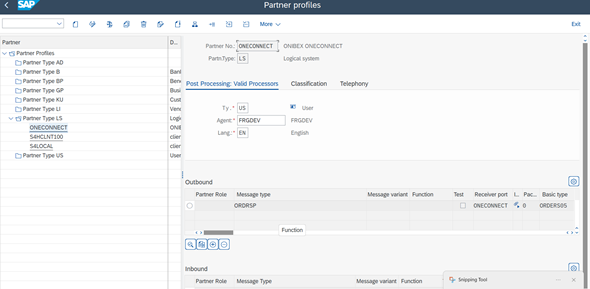

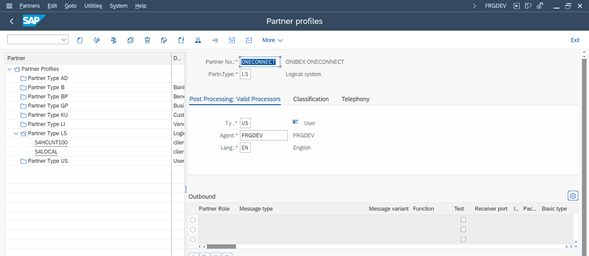

2.3 Maintain Partner Profiles (Transaction: WE20)

• Create a Partner Profile for the Logical System (LS) defined in step 2.1.
• Reference

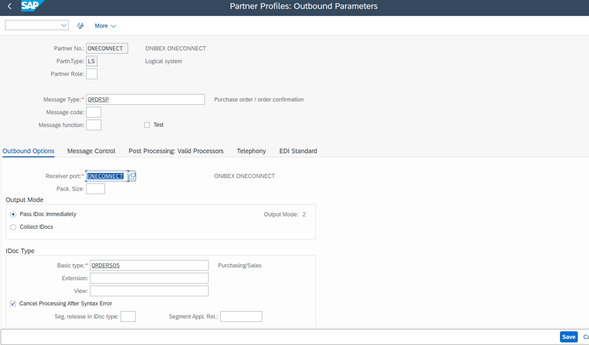

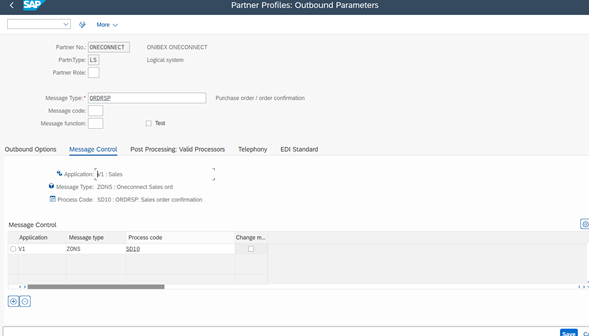

2.4 Configure Outbound Idoc

• Add the specific Message Type (e.g., ORDERS) and Basic Type (e.g., ORDERS05) to the partner profile.
• Reference:




• Note:
  The Logical System is now fully configured to process and transmit IDocs.



---

3. Distribution Model (Transaction: BD64)

Final link between the message type, the sender system, and the receiver system.

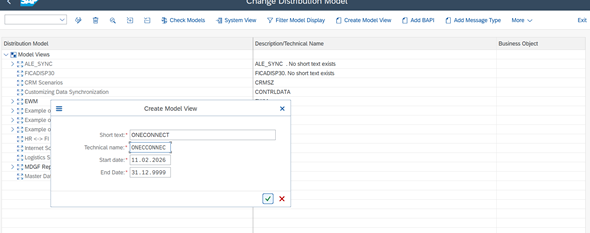

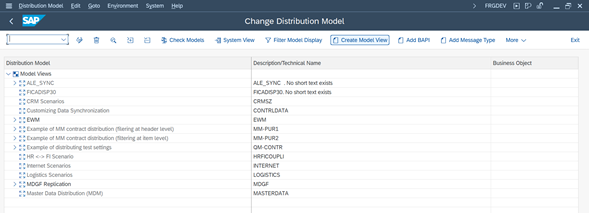

3.1 Create ALE Distribution Model

• Define a new model view and provide a technical name.
• Reference:

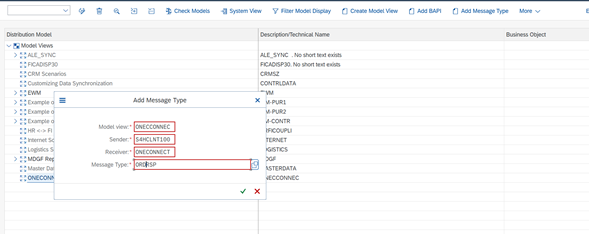

3.2 Add Message Type to Model

• Select the newly created model and click Add Message Type. Specify the Sender (Internal LS) and the Receiver (OneConnect LS).
• Reference:

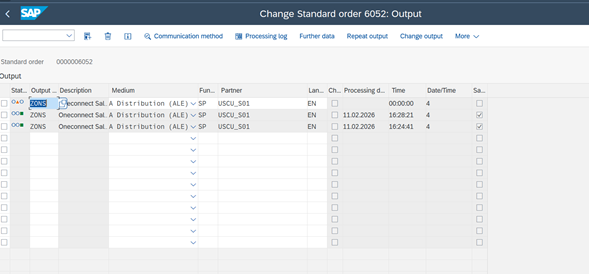

3.3 Confirmation and Execution

• Once these steps are finalized, the IDoc for the Sales Order confirmation will be generated and executed automatically upon saving the document.
• Reference:
