Optional Configurations - Configuring the Producer Ingress Cluster & Internal Load Balance Creation

Configuring the Producer Ingress Cluster (OPTIONAL)

Note: This step is only required if, during the deployment creation, the environment variable "KUBERNETES_ISINGRESSACTIVE" in the builder-deployment.yaml manifest was set to true.

Navigate to the "Services and Ingress" section.

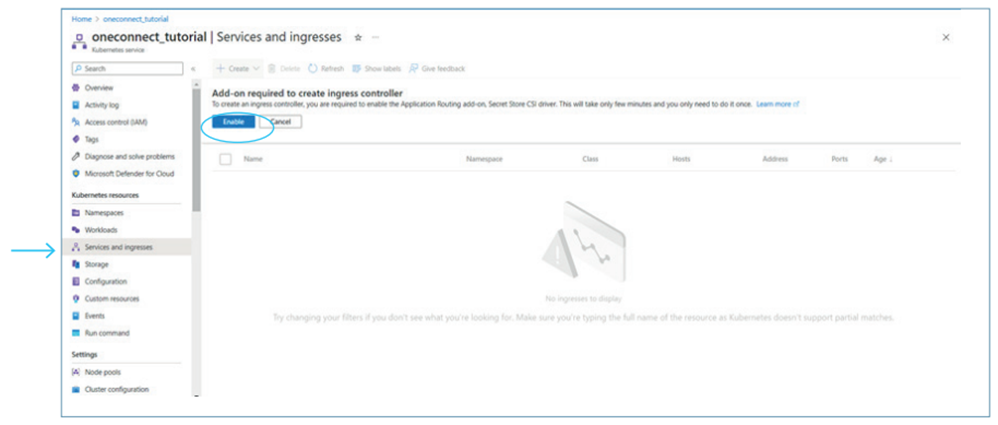

A pop-up window should appear prompting you to enable the necessary Ingress configuration in the cluster, as shown in the reference image.
Click the "Enable" button to proceed.

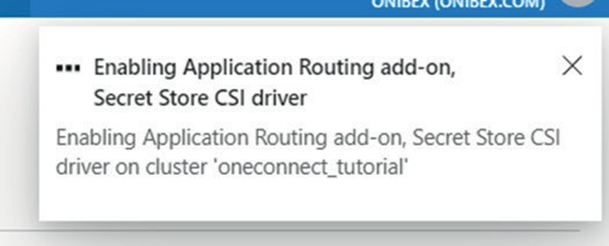

Please wait a few minutes while the cluster is reconfigured.
This process may take some time as the necessary changes are applied to enable Ingress.

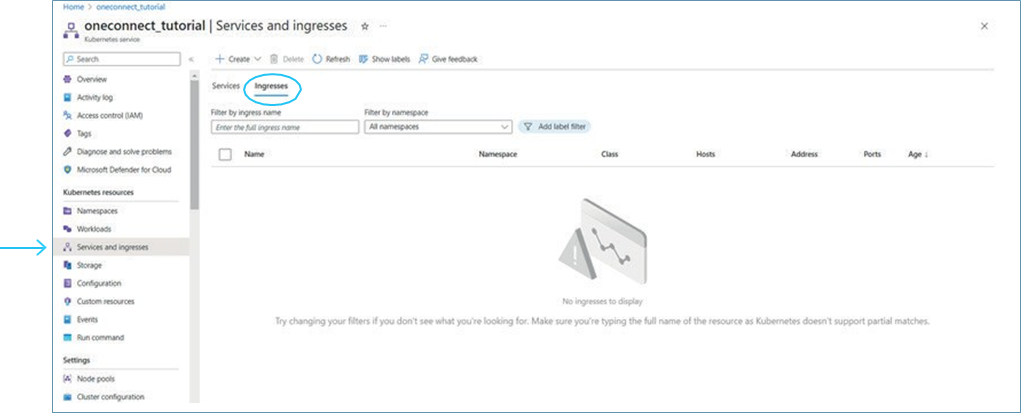

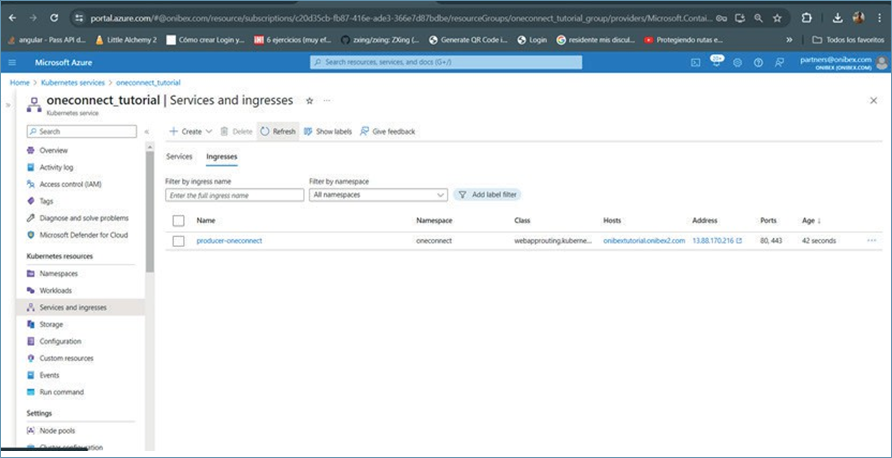

You will now be able to navigate to the "Services and Ingress" section, select "Ingress", and the "Create" option will be enabled.

To create an Ingress in Azure, do not apply the .yaml manifest included in the configuration.

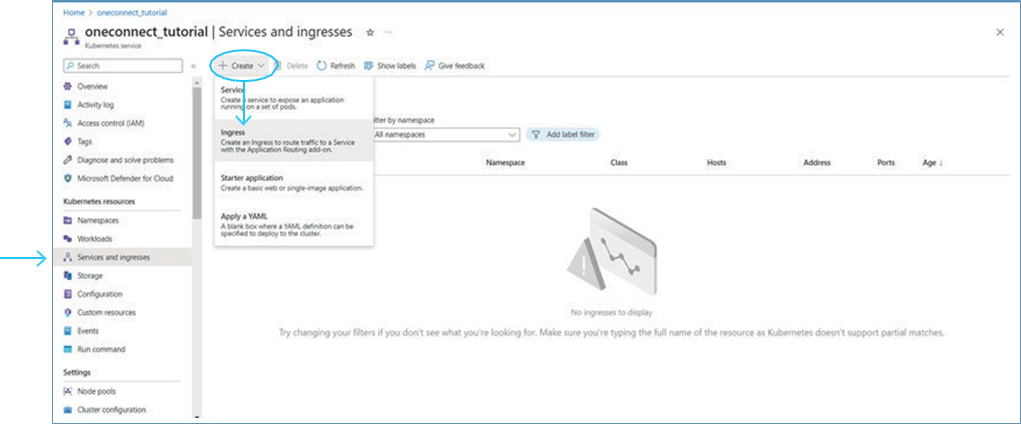

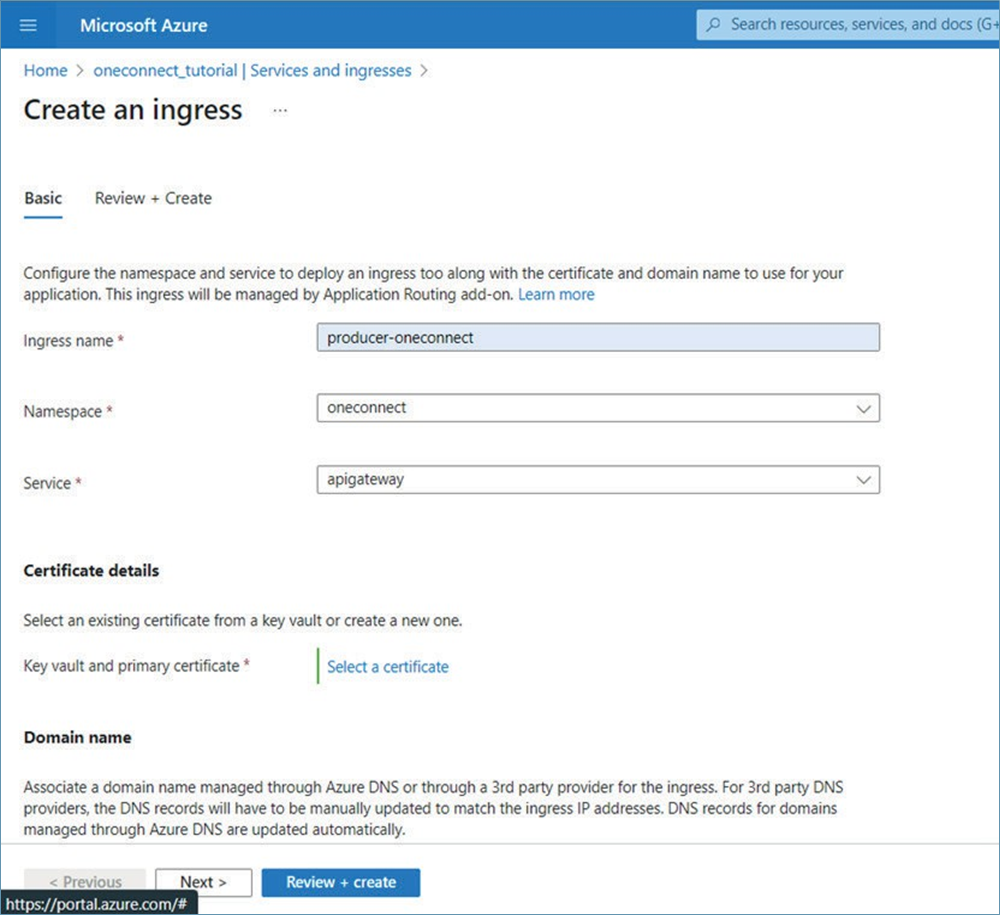

Instead, use the Azure wizard by selecting the "Create Ingress" option directly within the interface.

Two Ingresses must be created: one named producer-oneconnect and another named apigateway, both within the oneconnect namespace.
In both cases, the Ingress should reference the apigateway service.
The creation steps are the same for both Ingresses.

The Key Vault creation step only needs to be performed once. Additional certificates should only be added if different domains are used for apigateway and oneconnect.

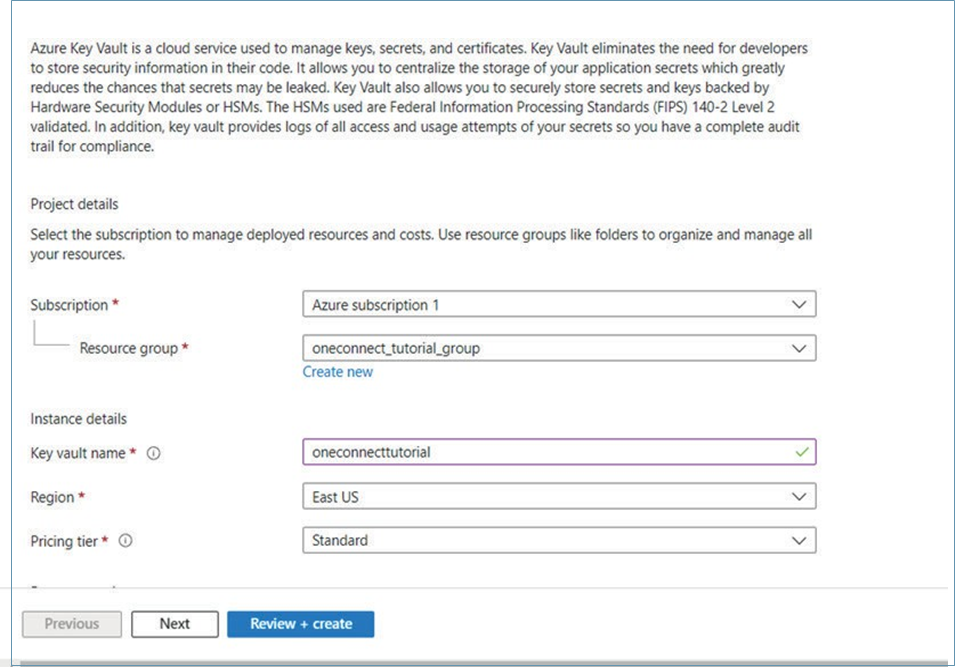

A new Key Vault must be created, as Azure's policy for Ingress requires it as a mandatory component.

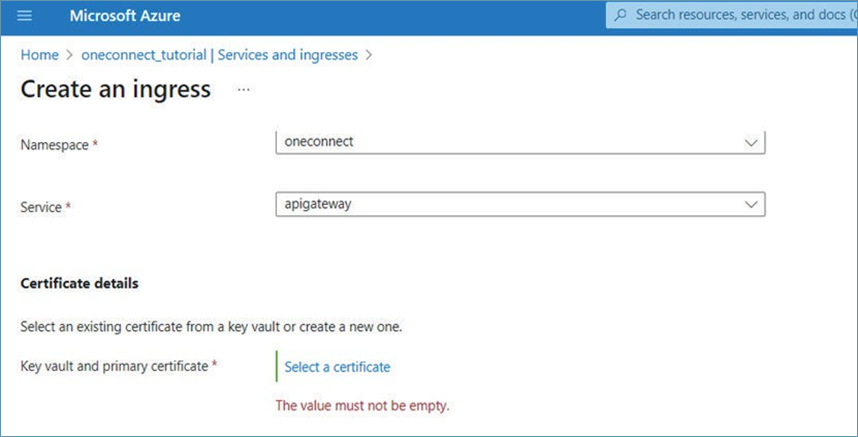

Click on the "Select a certificate" option and proceed to create the certificate using the default settings.

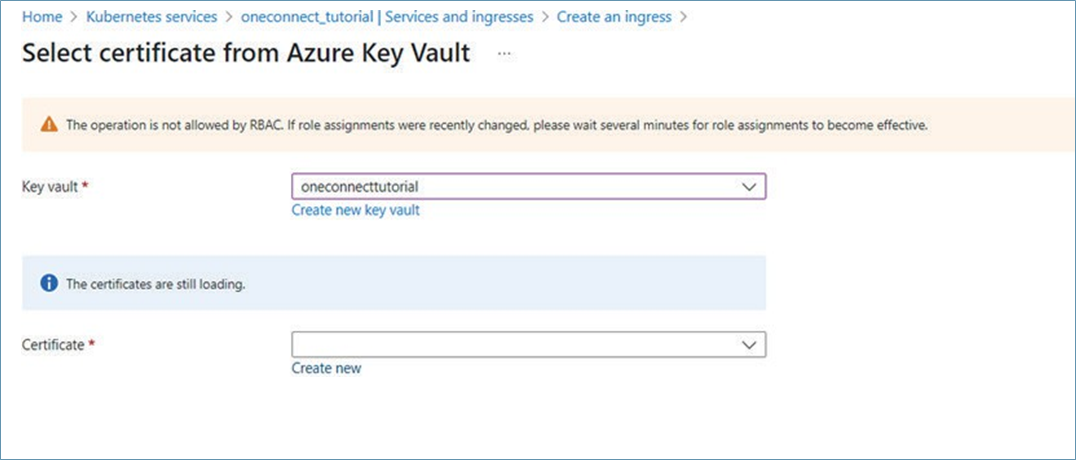

You can select the previously created Key Vault, and it must be chosen during the creation process.

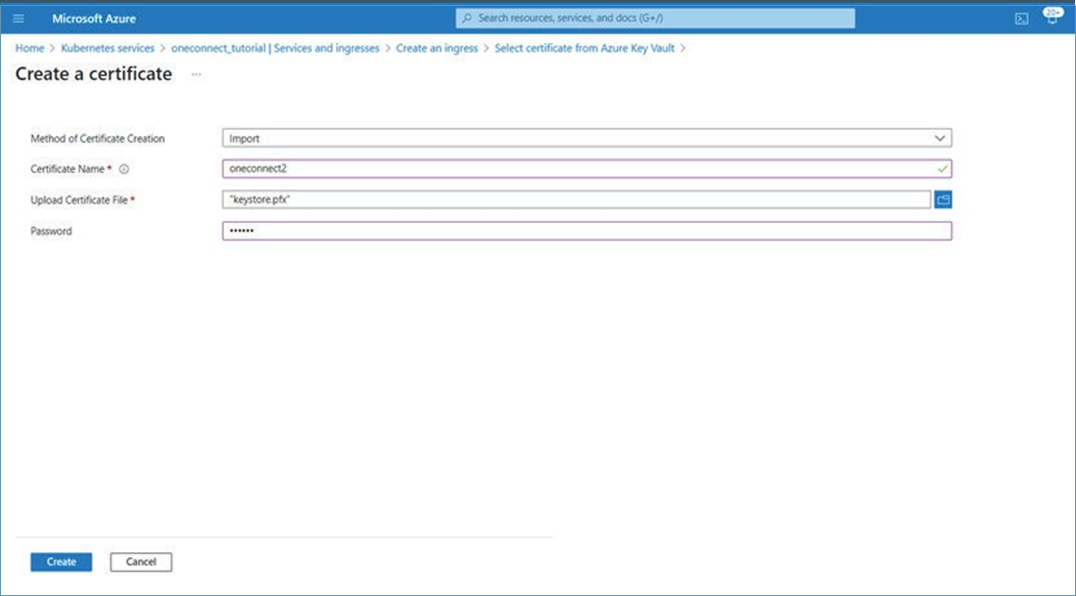

In the "Select Certificate" option, make sure to convert the certificate to .pfx format in order to import it and reference it within the Key Vault.

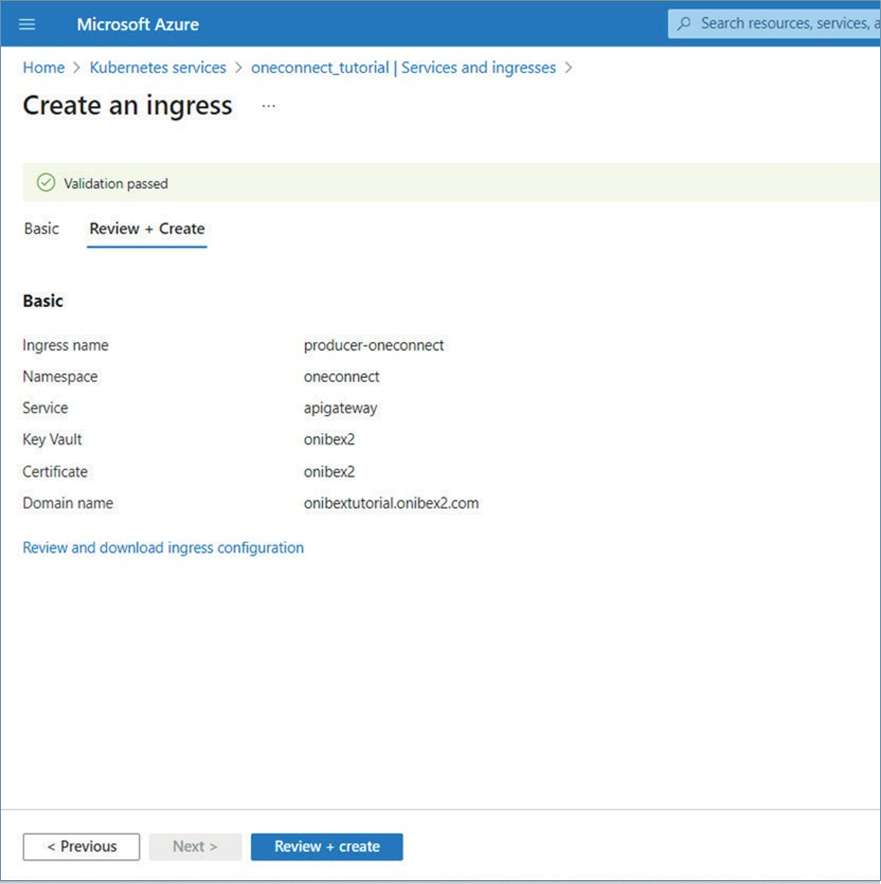

You can now proceed to review the configuration and create the Ingress.

Creating an Internal Load Balancer as a Private Entry Point to OneConnect Services

If the environment is not connected to the internet and the entire deployment is performed internally within Azure, a private entry point must be created for the user portal and optionally for the generated workspaces.

To do this:

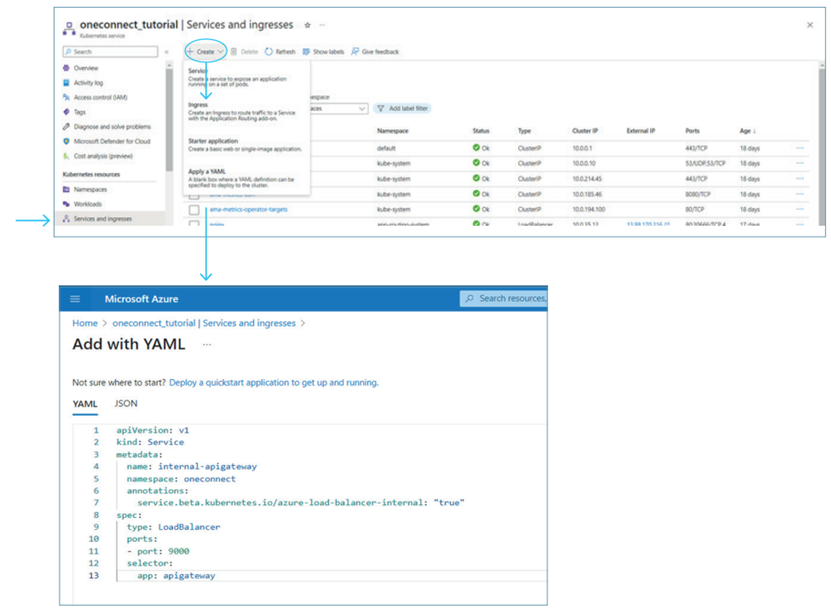

1. Navigate to the "Services and Ingress" section.

2. Click on "Create", then select "Apply YAML".

3. Apply the internal-loadbalancer.yaml manifest.

This will create a private entry point that will ensure connectivity within the internal environment in Azure.

This manifest is preconfigured to create the internal entry point to the apigateway, which must be used as the connection endpoint for the frontend of the OneConnect user platform.

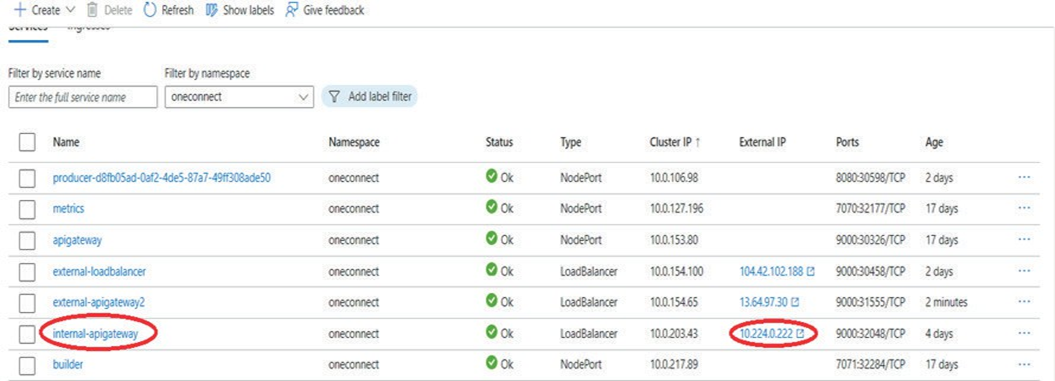

After the load balancer is created, the IP address shown as "external" is actually the private IP that should be used to establish connections to the cloud services on port 9000.

For example, a valid REST login endpoint would be:
http://10.224.0.222:9000/auth/api/v1/auth/signin

Optional:

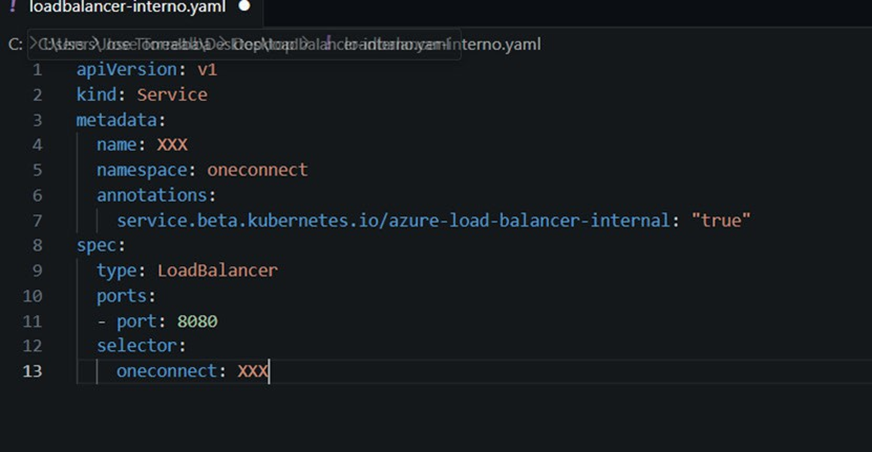

If you need to generate a private IP for a workspace and cannot use the cluster IP from the deployment, you can follow the same steps after the workspace has been created, using the internallb-workspace.yaml manifest.

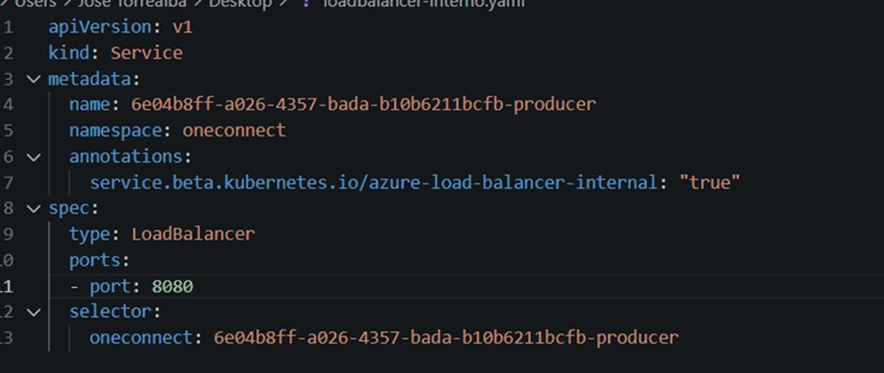

Replace the placeholders marked as XXX with the name of the generated workspace.

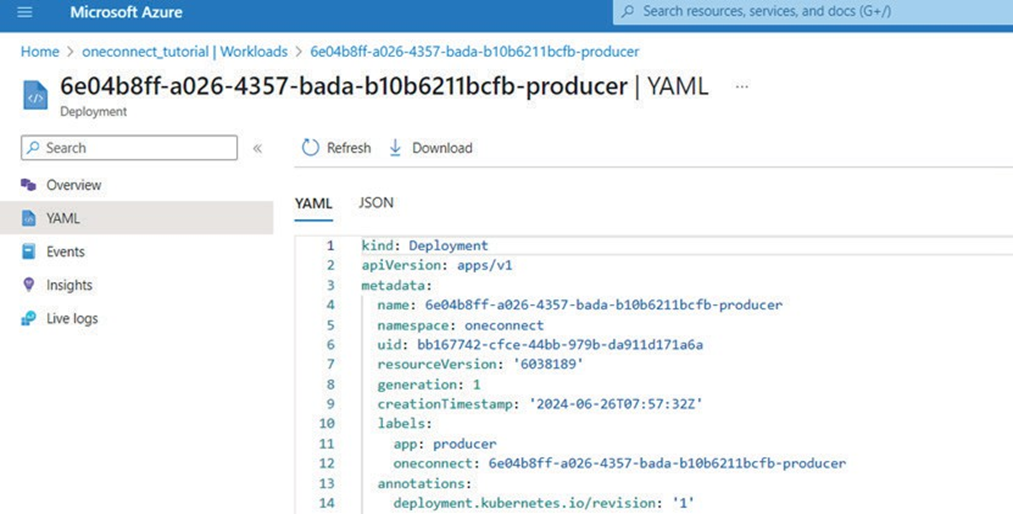

It should appear in this format within the workspace YAML, specifically under the deployment section inside Workloads.

Copy the value of the "oneconnect" label.

This will generate a similar load balancer, where the external IP will actually be the private IP that must be configured in SAP.
